2-33
ASUS ESC4000A-E12

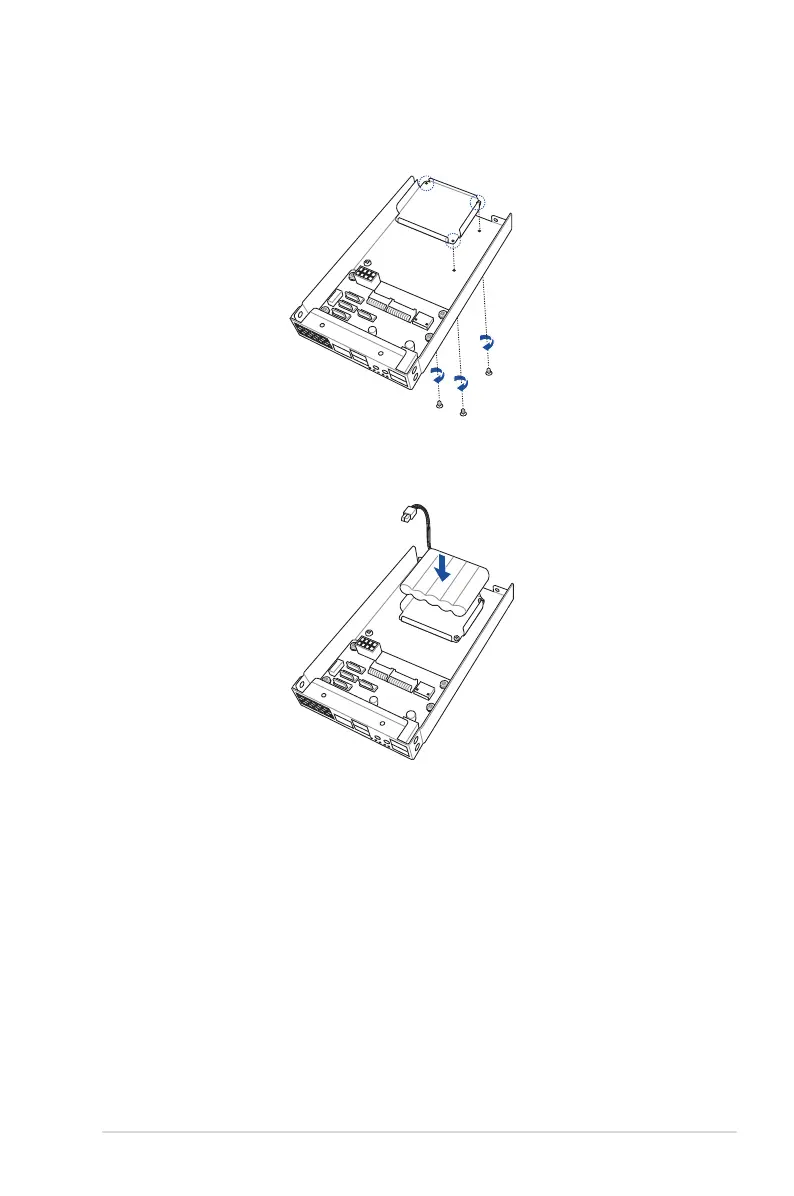

3. Align the three screw holes on the Cache Vault Power Module clip with the three screw
holes on the Front Panel Module, then secure the clip with the three bundled screws.
4. Align and install the Cache Vault Power Module into the Cache Vault Power Module
clip.
