Chapter 2: Hardware Setup
2-10

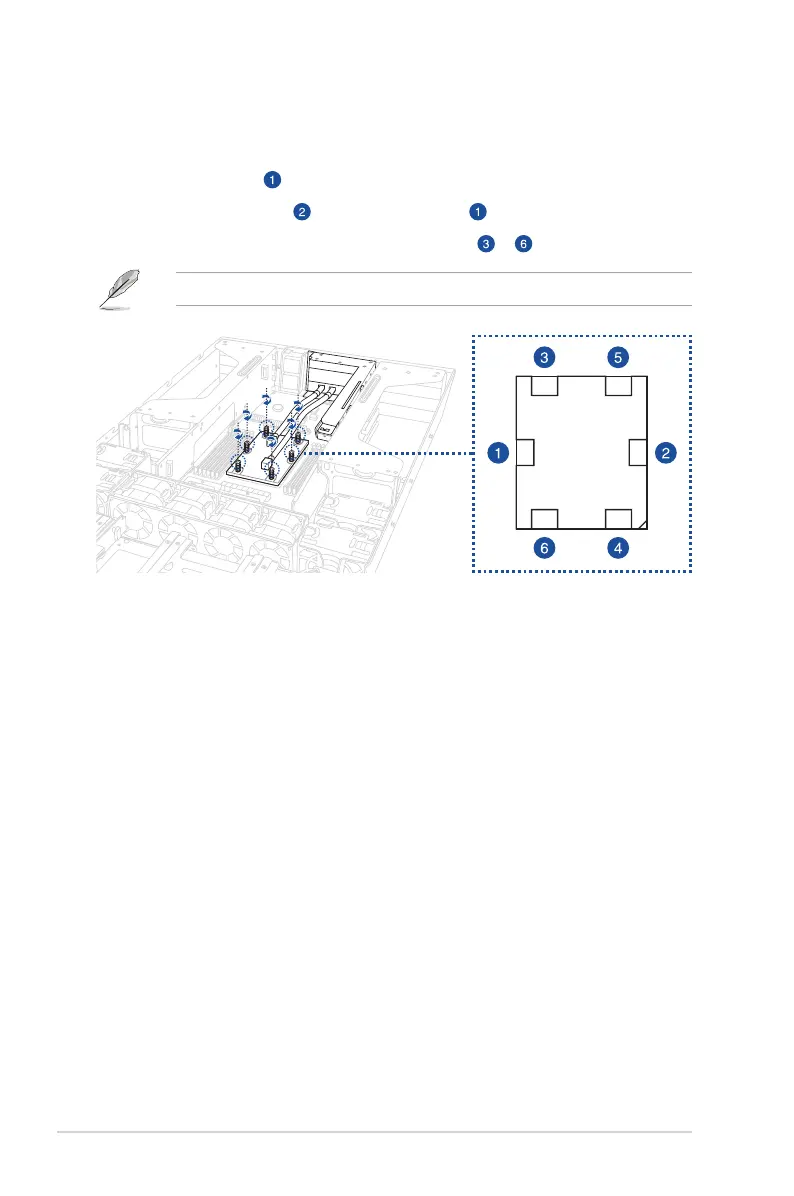

5. The below instructions must be followed when securing the heatsink to the
motherboard. The order in which the screws should be tightened is shown both in the
illustration below and on the heatsink.
A. Tighten screw just enough to attach the heatsink to the motherboard.
B. Fully tighten screw , then fully tighten screw .
C. Fully tighten the remaining screws in order from to
A T20 screwdriver with a torque value of 12.5±2.5kg-cm is recommended.
