7-6 Chapter 7: Driver Installation

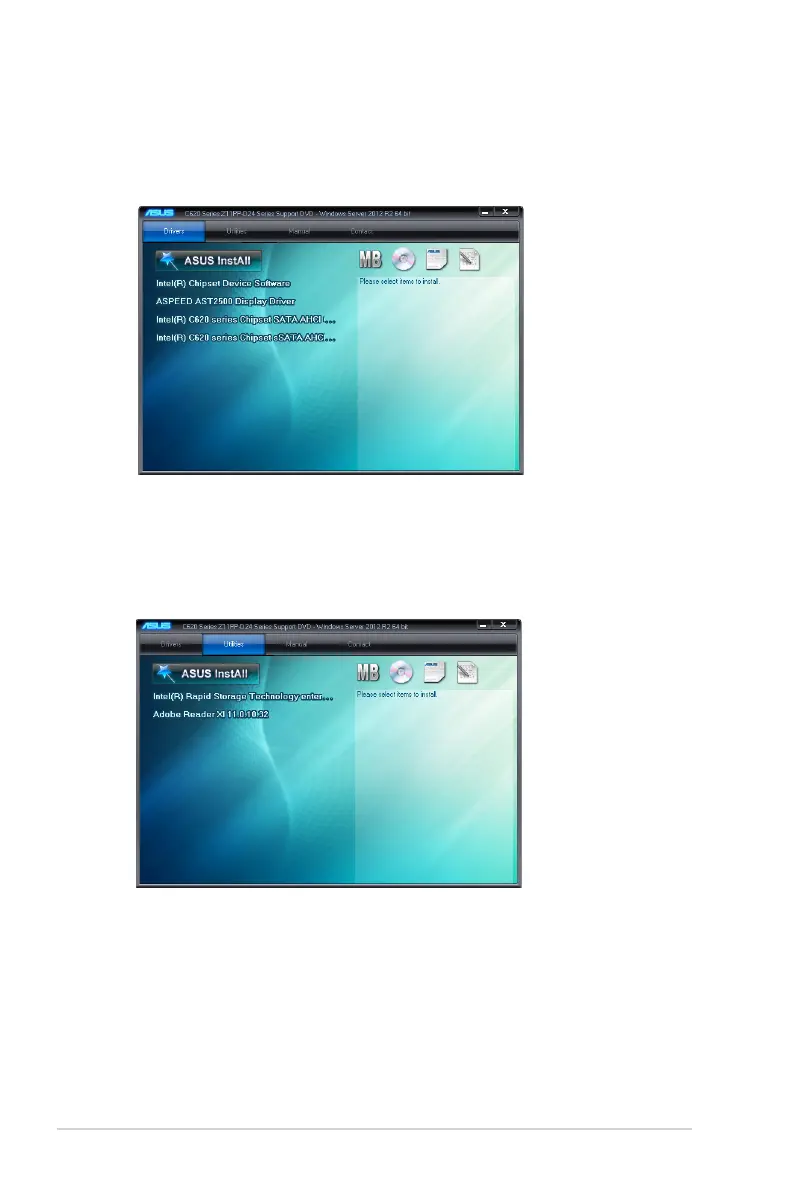

The Drivers Menu shows the available device drivers if the system detects installed devices.

Install the necessary drivers to activate the devices.

7.3.2 Utilities menu tab

The Utilities menu displays the software applications and utilities that the motherboard

supports.

7.3.1 Drivers menu tab

Default Chapter3
