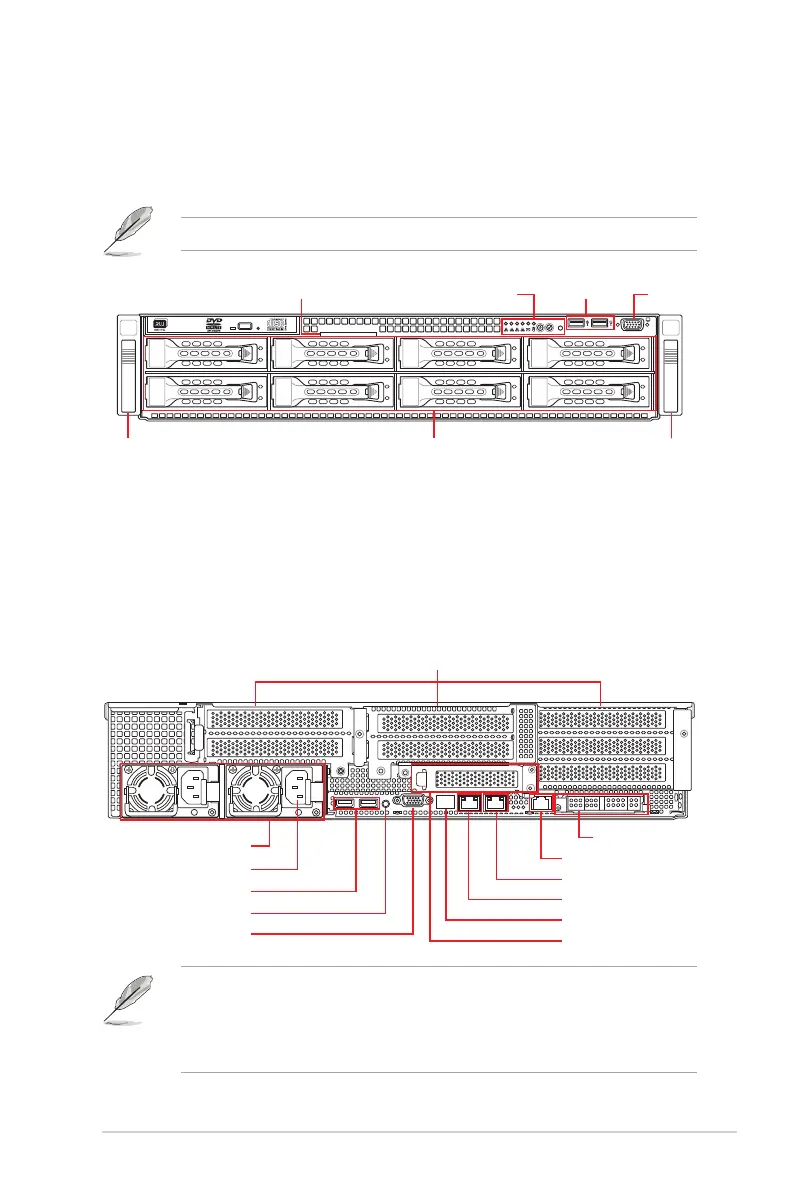

1.4 Front panel features
The barebone server displays a simple yet stylish front panel with easily accessible features.
The power and reset buttons, LED indicators, and two USB ports are located on the front
panel.
Refer to section 1.7 LED information for the LED descriptions.
1234
RESET
USB 2.0 ports
handle
Front panel LEDs & buttons
8 x 2.5”/3.5” Drive Bays
handle
1.5 Rear panel features
The rear panel includes the expansion slots, system power sockets, and rear fans. The
middle part includes the I/O shield with openings for the rear panel connectors on the
motherboard.
Redundant power supply
Power connector
VGA port
Mgmt LAN port*
Gigabit LAN port 2
Q-Code LED
USB 3.1 Gen 1 ports
Power button
Gigabit LAN port 1
Expansion card back plate
Asset tag
RS720-E9-RS8 (without rear bay model)
• * This port is for ASUS ASMB9-iKVM only.
• The Q-Code LED provides the most probable cause of an error code as a starting
point for troubleshooting. The actual cause may vary from case to case.
• Refer to the Q-Code table for details.
VGA port
OCP Mezzanine slot
Expansion card slot
