2.5.5 Installing GPU cards (for RS720-E9-RS8-G only)

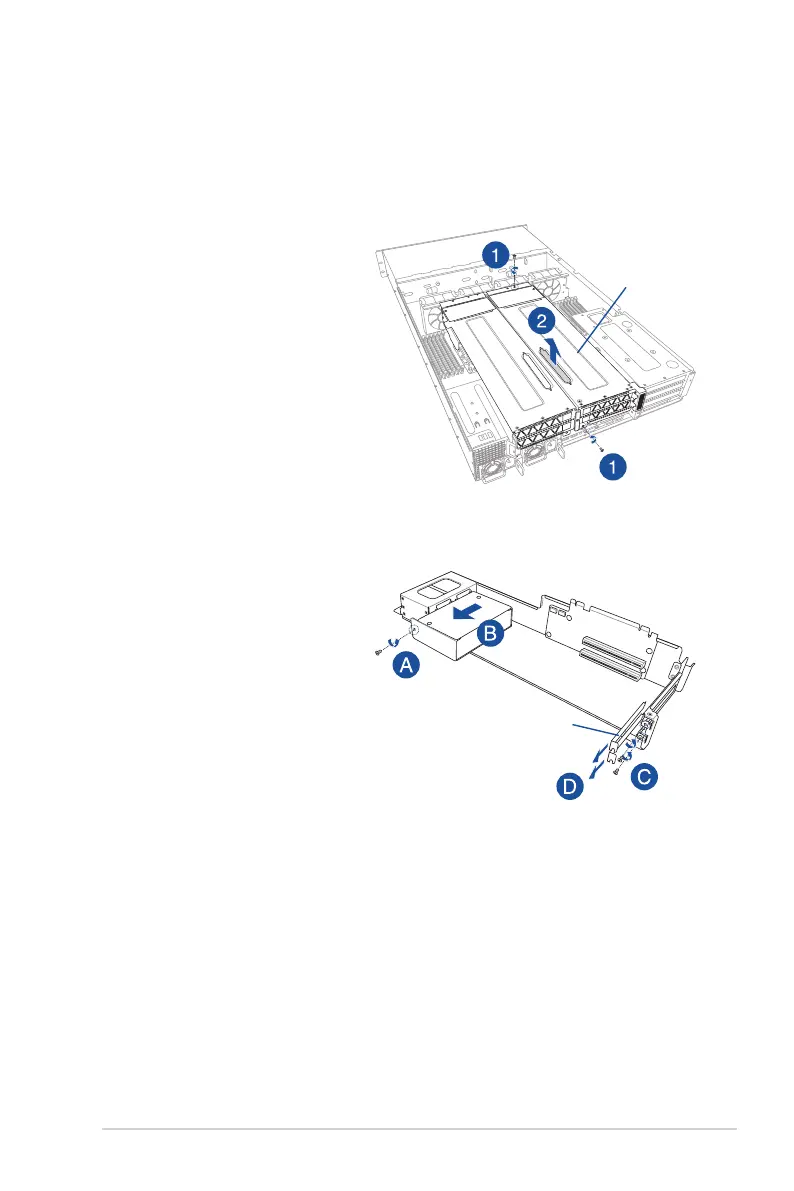

To install a passive GPU (FH/FL) card to the riser card bracket 2:
1. Remove the two screws that
secure the riser card bracket 2 to
the chassis.
2. Lift the strap and then pull it up
to detach the riser card bracket
2 from the PCIE3 slot on the
motherboard.
Riser card bracket 2
3. Place the riser card bracket 2 on
aatandstablesurfaceinthe
orientation as shown.
4. Remove the screw that secures
the GPU air duct to the riser card
bracket 2 (A), then remove the
GPU air duct (B).
5. Remove the screws from the
metal cover (C), then remove the
metalcover(D)fromtheriser
card bracket 2.
6. Prepare the GPU card and the
GPU power cable.
Metal cover
