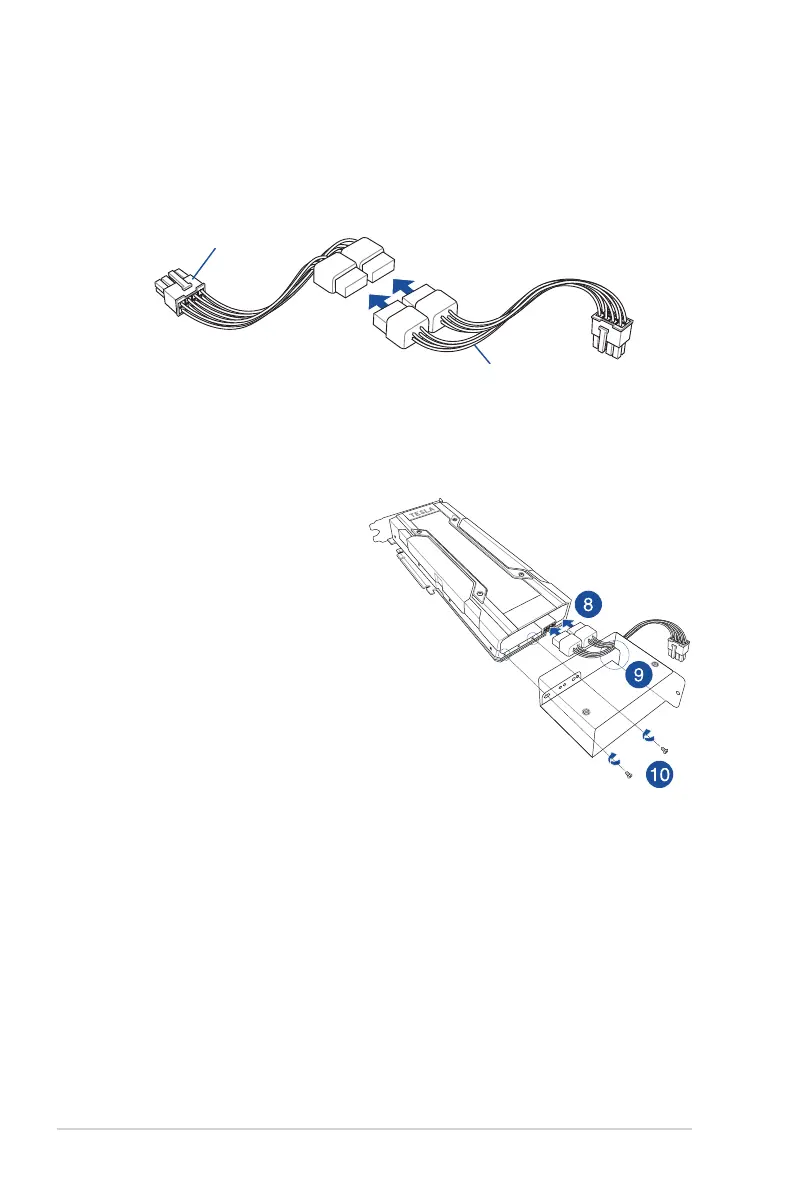

7. (Optional) Prepare the GPU card dongle, then connect it to the GPU power cable as
shown.
GPU power cable
GPU card dongle
8. Connect the GPU power cable
or GPU card dongle to the
connector on the GPU card.
9. Align the GPU air duct to the
GPU card and pass the GPU
power cable (or power cable and
dongle) through the notched area
on the GPU air duct.
10. From inside the GPU air duct,
secure the GPU air duct to the
GPU card with two screws.
To Next Page
