2-29
ASUS RS720-E9-RS8/RS8-G

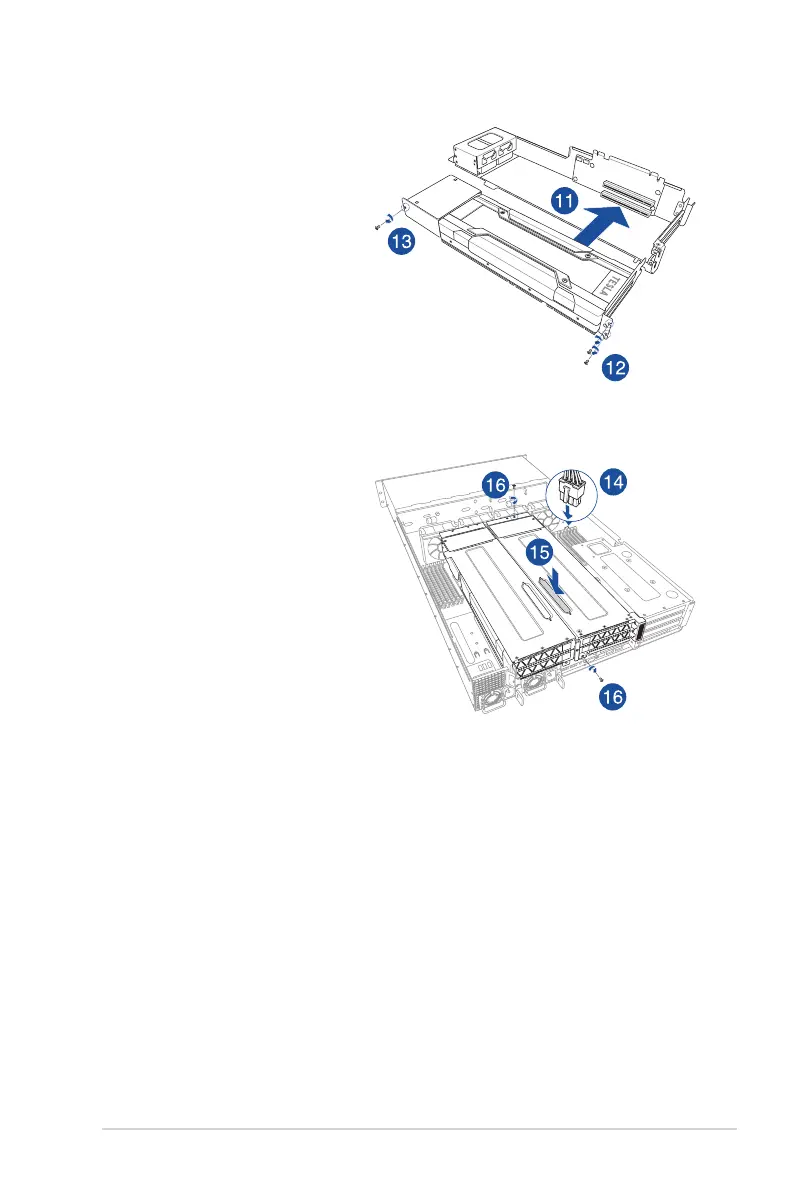

11. Install the GPU card into the riser
card bracket 2.
12. Secure the GPU card to the riser
card bracket 2 with the screws
removed in step 5.
13. Secure the GPU air duct to the
riser card bracket 2 with the
screw removed in step 4.
14. Connect the cable from the GPU
cardtotheVGAPWR1connector
on the motherboard.
15. Install the riser card bracket 2
and the GPU card assembly
into the PCIE3 slot on the
motherboard. Ensure that the
golden connectors of the riser
cardbracket2isrmlyseatedin
place.
16. Secure the riser card bracket 2
to the chassis with the screws
removed in step 1.
