2.5.12 Installing M.2 (NGFF) cards

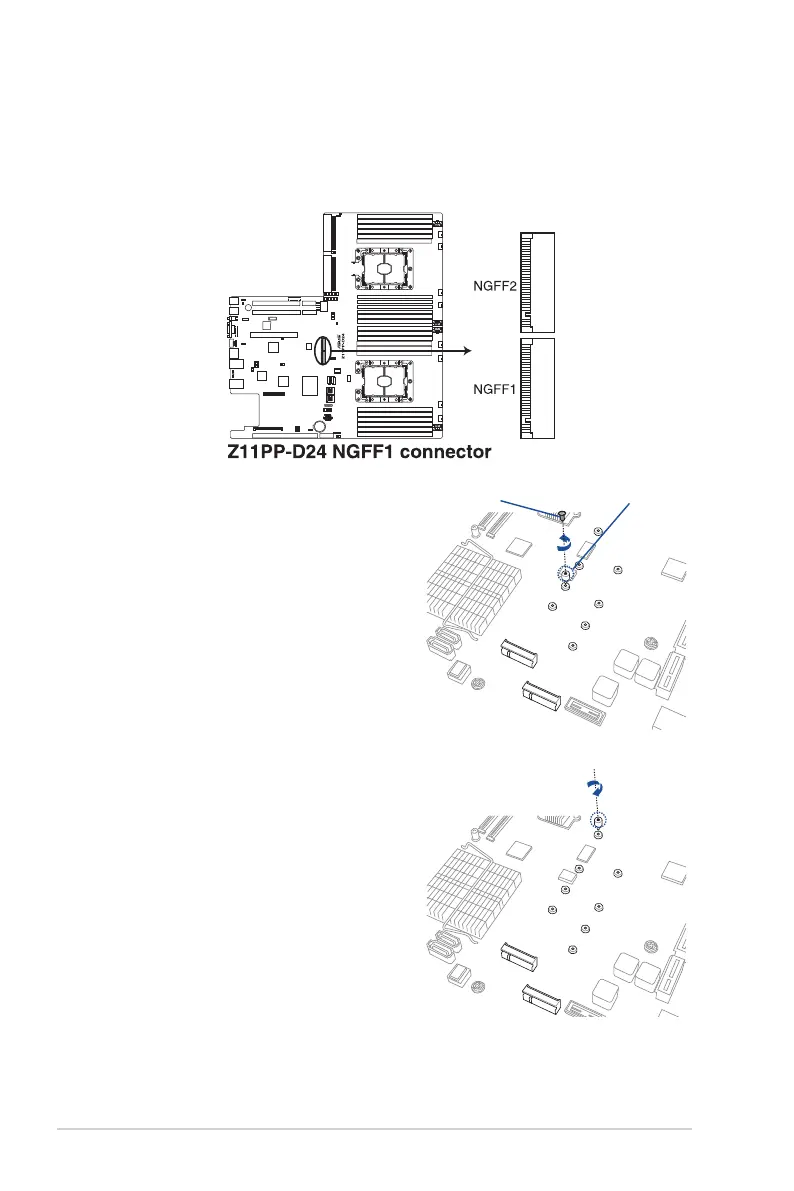

To install an M.2 (NGFF) card:
2. Remove the top screw and the
stand from the motherboard.
3. Select an appropriate screw hole
on the motherboard for your M.2
card, then secure the stand to the
motherboard.
1. Locate the M.2 (NGFF) connectors on your motherboard.
Top screw
Stand screw
To Next Page
