Asus RS720-E9-RS8 - Installing an ASUS PCIE-NVME2-Oculink Card (for RS720-E9-RS8 Only)

Chapter 2: Hardware Information
2-42

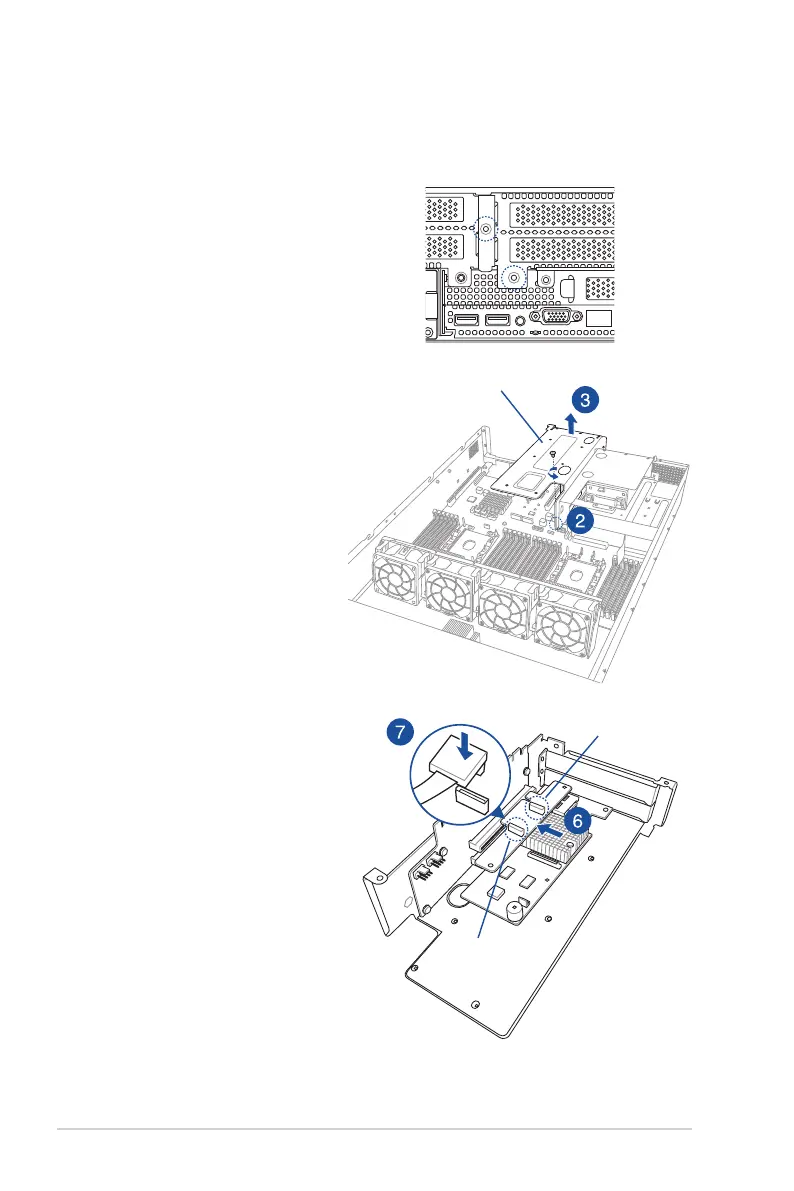

2. Remove the screw that secures
the riser card bracket 2 to the
motherboard.
3. Firmly hold the riser card bracket
2, then pull it up to detach it
from the PCIE3 slot on the
motherboard.
ToinstallanASUSPCIE-NVME2-
OCuLink card to the riser card bracket
2:
1. Remove the two screws that
secure the riser card bracket 2 to
the chassis.
4. Place the riser card bracket 2 on
aatandstablesurfaceinthe
orientation as shown.
5. Prepare the ASUS PCIE-
NVME2-OCuLinkcard.
6. InstalltheASUSPCIE-NVME2-
OCuLink card into the PCIE slot.
7. Connect the OCuLink cables to
the corresponding slots.
Riser card bracket 2
2.5.9 Installing an ASUS PCIE-NVME2-OCuLink card
(for RS720-E9-RS8 only)
OCuLink port 2
OCuLink port 1
