Asus RS720-E9-RS8 User Manual

A-2
Appendix

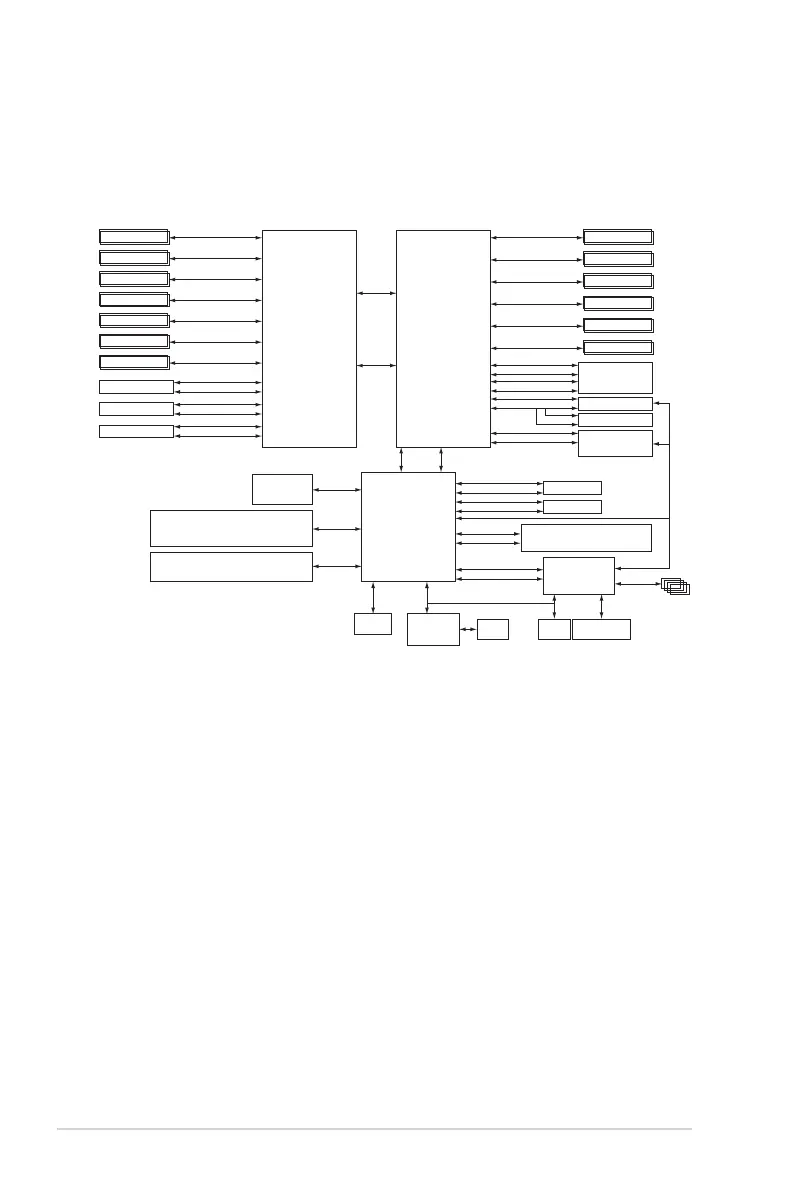

Z11PP-D24 block diagram
CPU2
Scalable Processor
Scalable Processor with
OMNI-PATH FABRIC
Up to 165w
Socket P0 (LGA3647)
CPU1
Scalable Processor
Up to 165w
Socket P0 (LGA3647)
UPI 10.4GT/s
DDR4 RDIMM * 2
Channel G
DDR4 2133/2400/2667
DDR4 RDIMM * 2
Channel A
DDR4 2133/2400/2667
DDR4 RDIMM * 2
Channel B
DDR4 2133/2400/2667
DDR4 RDIMM * 2
Channel C
DDR4 2133/2400/2667
DDR4 RDIMM * 2
Channel D
DDR4 2133/2400/2667
DDR4 RDIMM * 2
Channel E
DDR4 2133/2400/2667
DDR4 RDIMM * 2
Channel F
DDR4 2133/2400/2667
DDR4 RDIMM * 2
Channel H
DDR4 2133/2400/2667
DDR4 RDIMM * 2
Channel I
DDR4 2133/2400/2667
DDR4 RDIMM * 2
Channel J
DDR4 2133/2400/2667
DDR4 RDIMM * 2
Channel K
DDR4 2133/2400/2667
DDR4 RDIMM * 2
Channel L
DDR4 2133/2400/2667
DDR4 RDIMM * 2
Channel M
DDR4 2133/2400/2667
UPI 10.4GT/s
PCI EXPRESS GEN3 x16
PCI-E x16 Slot2
PCI EXPRESS GEN3 x16
PCI-E x16 Slot3
PCI EXPRESS GEN3 x16
PCI-E x16 Slot4
PCI-E x8 MezzPCIE1
PCI-E x8 MezzPCIE2
PCI EXPRESS GEN3 x16
PCI-E x24 Slot1
PCI EXPRESS GEN3 x16
Intel I350 AM2
1G BASE-T LAN
PCI EXPRESS GEN3 x4
PCI EXPRESS GEN3 x8
Lewisburg
UPLINK
(GEN3 x4)
DMI3
SATA III
ISATA1 / ISATA2
SATA III
8 ports
SATA III
SSATA1 / SSATA2 / M2_NGFF1 / M2_NGFF2
(1 port is auto-swith between SSATA2 / M2_NGFF1)
sSATA III
3 ports
USB 2.0
USB3_1 / USB3_2 / OCUUSB1 / USB3_5 / USB78
High-Speed USB
7 ports
SPI Flash
256Mbits
LPC BUS
RGMII
FAN Control
NCSI
GPU Fan *6
Front Fan *8
Nuvoton
NCT6793D
Super IO
COM
TPM Realtek RTL8211E
M2_NGFF2
PCI EXPRESS GEN3 x4
M2_NGFF1
PCI EXPRESS GEN3 x4
USB3_1 / USB3_2 / OCUUSB1 / USB3_5
Super Speed USB
5 portd
USB3.0
BMC
ASPEED AST2500
4Gb/8Gb DDR4 SDRAM
PCI EXPRESS GEN3 x1
