Asus RS720-E9-RS8 User Manual

Chapter 2: Hardware Information
2-50
2.6 Cable connections
• Thebundledsystemcablesarepre-connectedbeforeshipment.Youdonotneedto
disconnect these cables unless you are going to remove pre-installed components to
install additional devices.
• RefertoChapter4fordetailedinformationontheconnectors.

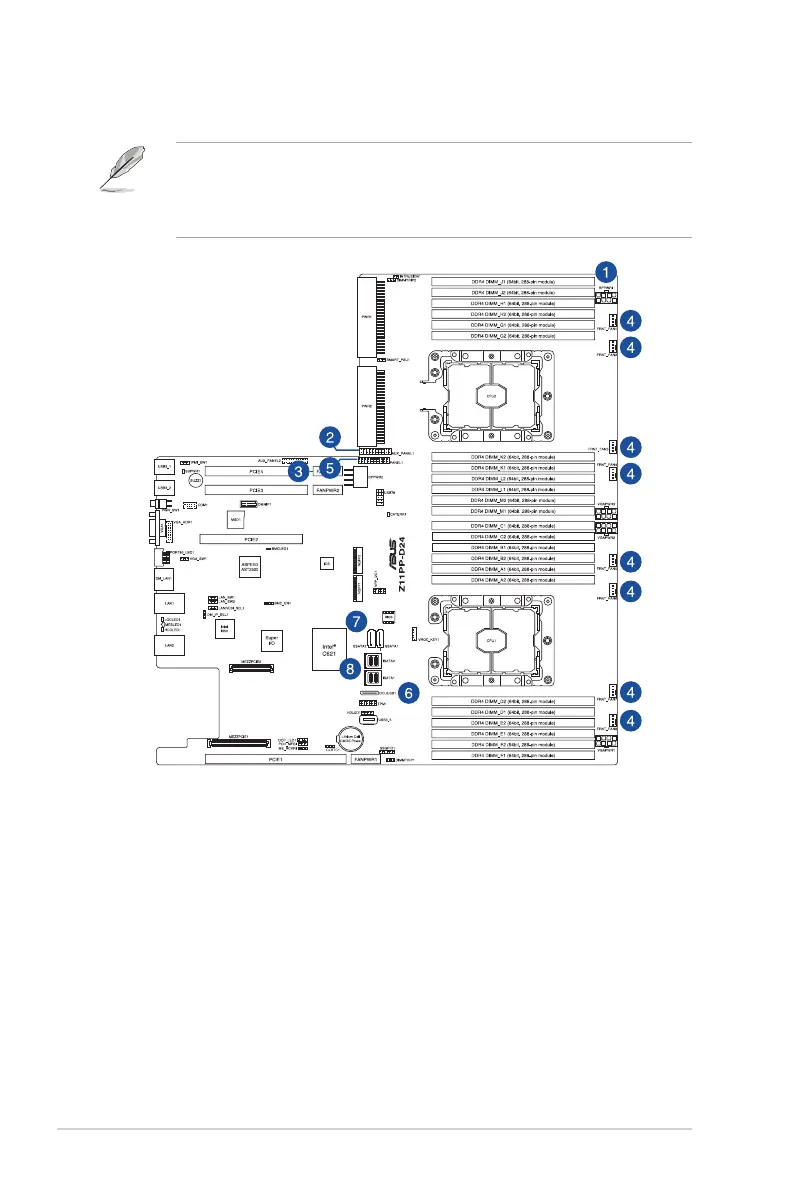

Pre-connected system cables
1. 8-pin BPPWR1 power connector (from power supply to backplane)
2. Auxiliarypanel1connector(frommotherboardtofrontI/Oboard)
3. Auxiliarypanel2connector(frommotherboardtofrontI/Oboard)
4. System fan connectors (from motherboard FAN1-8 to system fans)
5. Panel connector (from motherboard to front I/O board)
6. OCU-USB to USB connector (from motherboard to front I/O board)
7. SATA connectors (from motherboard to SATA/SAS backplane board)
8. ISATA connectors (from motherboard to SATA/SAS backplane board)
