Chapter 2: Hardware Information
2-24

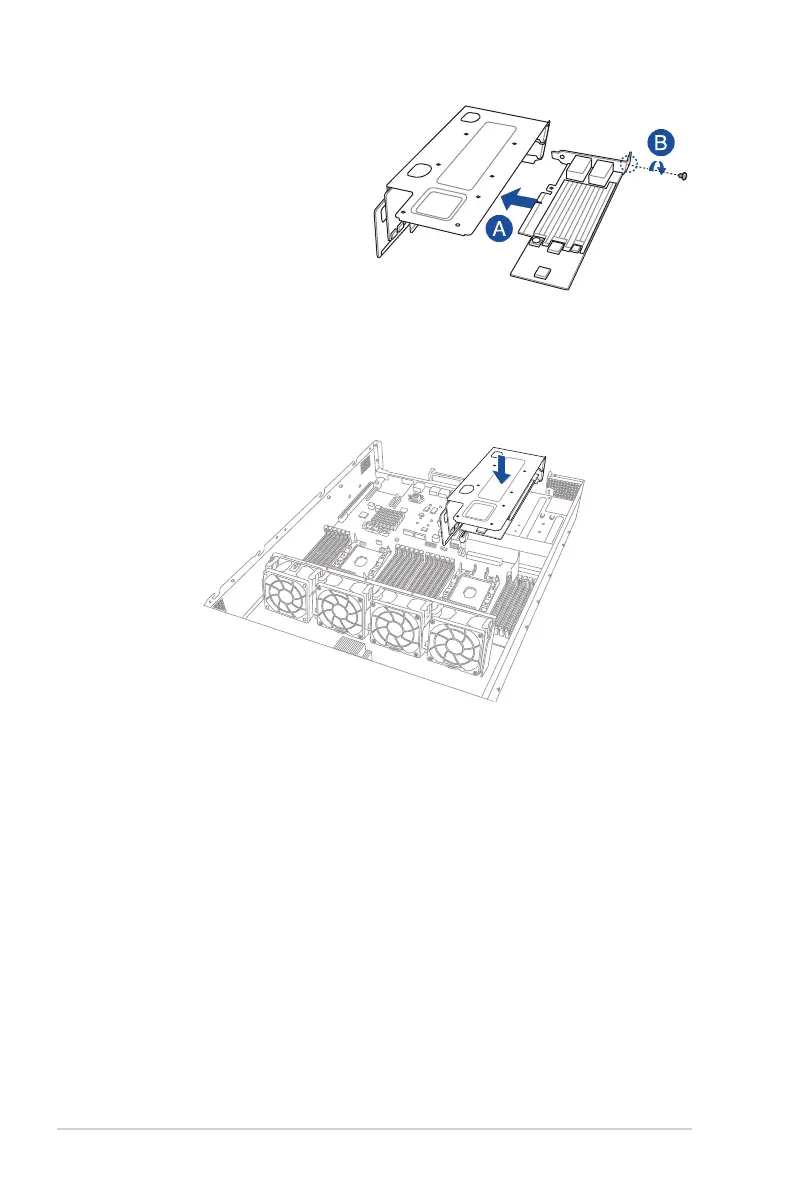

4. InstallthePCIEexpansioncard
into the riser card bracket 3 (A),
thensecuretheexpansioncard
with the screw (B).
5. Installtherisercardbracket3andthePCIEexpansioncardassemblyintothePCIE4
slot on the motherboard. Ensure that the golden connectors of the riser card bracket 3
isrmlyseatedinplace.
6. Secure the riser card bracket 3 to the chassis with the screws removed in step 1.
