Asus RS720-E9-RS8 User Manual

Chapter 2: Hardware Information
2-32

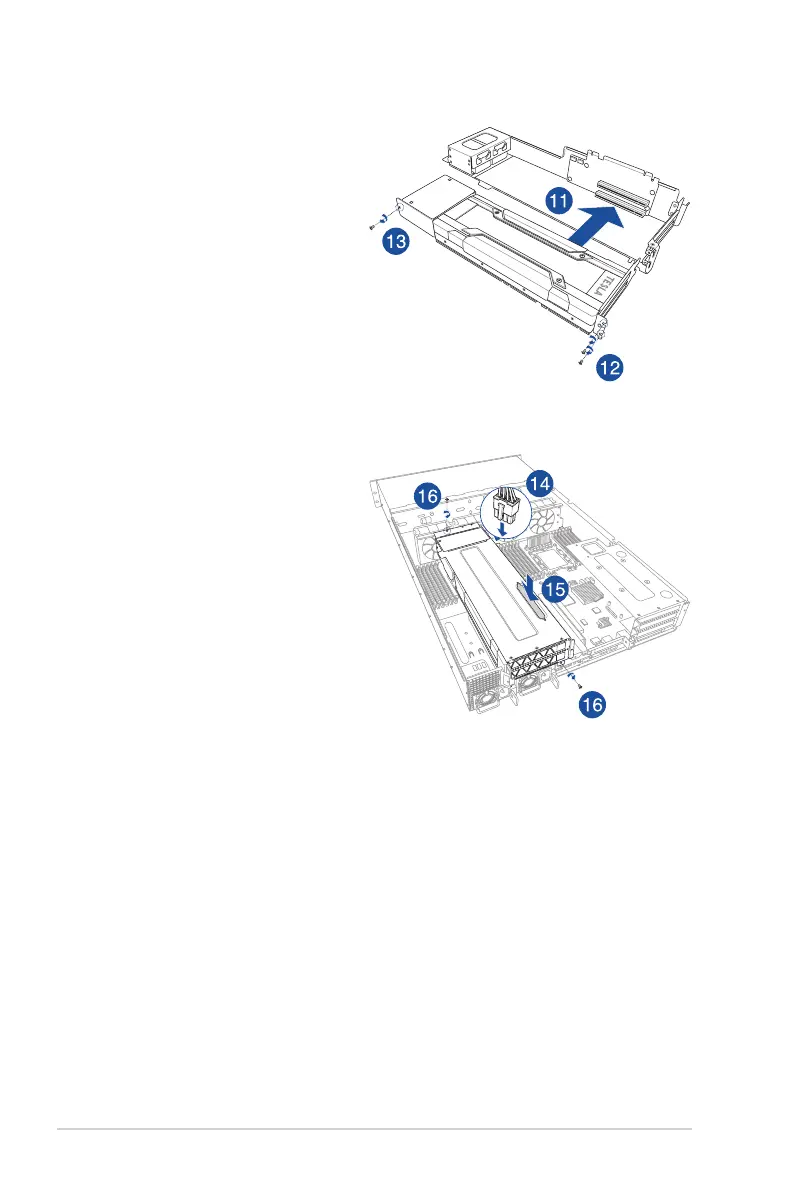

11. Install the GPU card into the riser
card bracket 3.
12. Secure the GPU card to the riser
card bracket 3 with the screws
removed in step 5.
13. Secure the GPU air duct to the
riser card bracket 3 with the
screw removed in step 4.
14. Connect the cable from the GPU
cardtotheVGAPWR2connector
on the motherboard.
15. Install the riser card bracket 3
and the GPU card assembly
into the PCIE4 slot on the
motherboard. Ensure that the
golden connectors of the riser
cardbracket3isrmlyseatedin
place.
16. Secure the riser card bracket 3
to the chassis with the screws
removed in step 1.
