N) Light Switch
This switch turns on/off both the front and rear
work lights.
O) Front Windshield Wiper Switch
Controls the optional front windshield wipers.
P) Fan Switch
Controls the optional heater fan.
Q) Rear Windshield Wiper Switch
Controls the optional rear windshield wiper.
R) Ignition
Key operated switch starts engine and powers
electrical accessories.
S) Glow Plug Indicator Element
T) Change 5" Filter
This light will come on if the 5" filter needs to
be changed.
U) Change 3" Filter
This light will come on if the 3" filter needs to
be changed.
V) Hot Hydraulic Oil Indicator
This light will come on if the hydraulic oil rises
above 200°F.
W) Amp Gauge
Used to monitor the battery charging system
while the engine is running.
X) Fuel Gauge
N O P Q
W
R
S
T
U

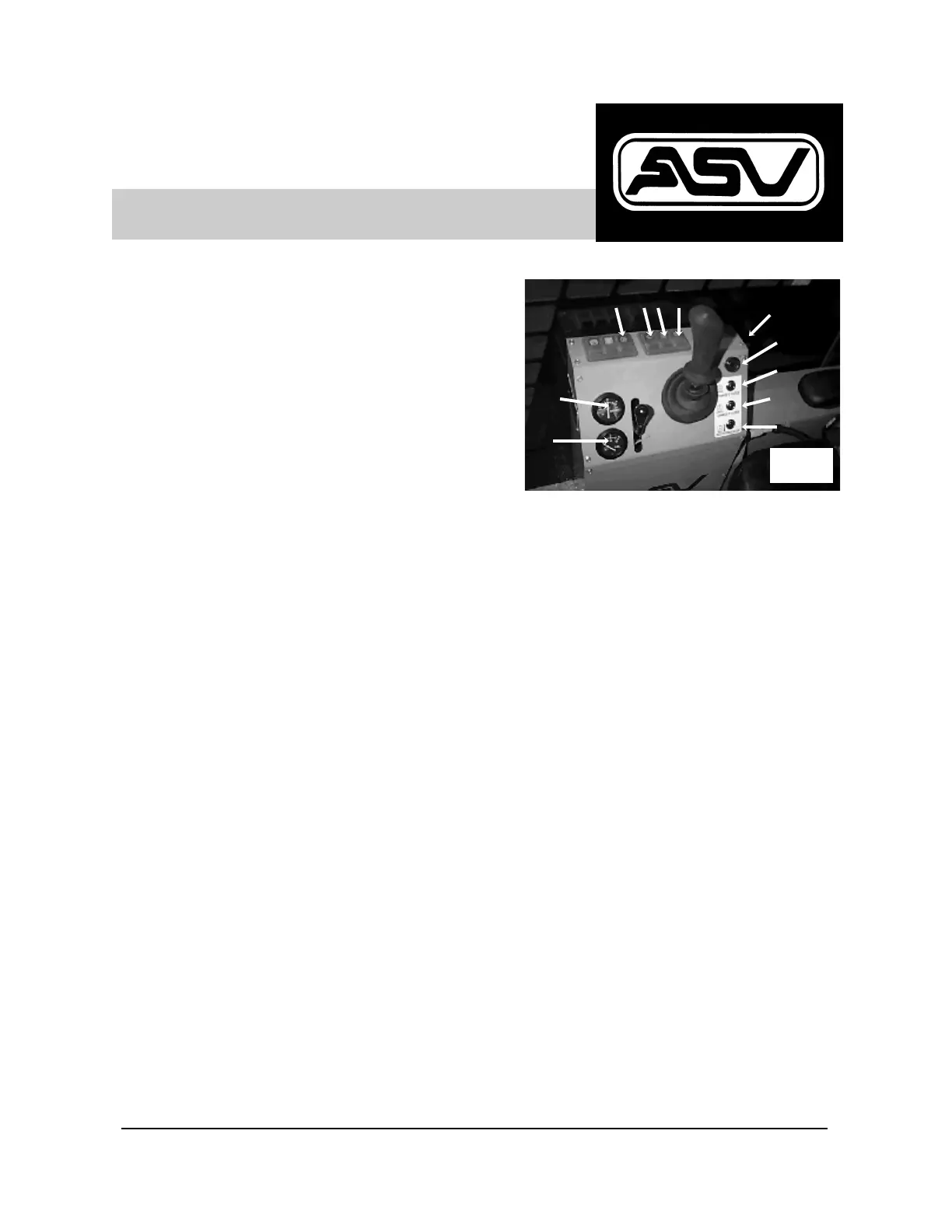

Fig. 4
GENERAL OPERATION
Fig. 4
N O P Q
R
S
T
U
V
W
X
