POSI-TRACK 2800 & 2810
PAGE 45
ASV, INC.

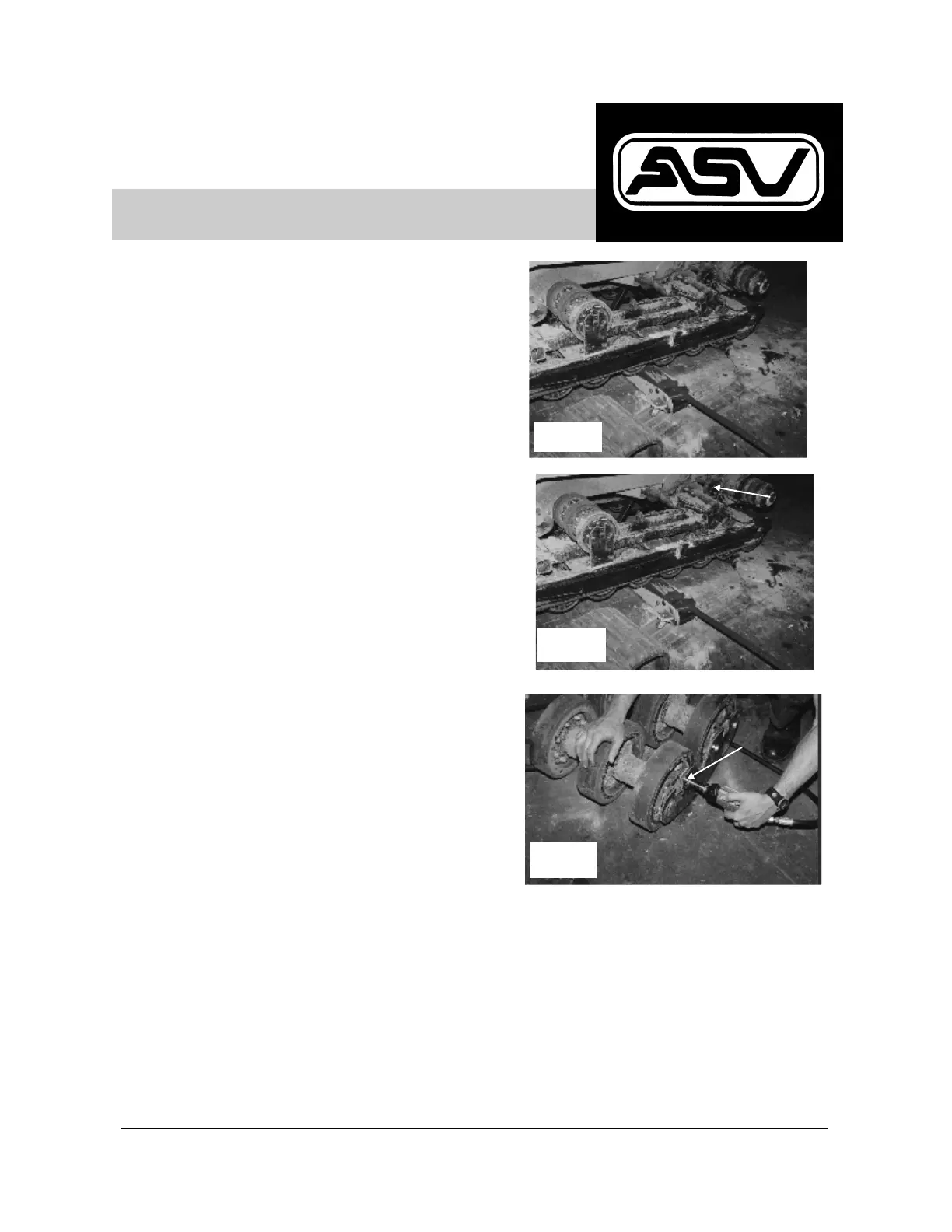

BOGIE CARRIAGE REMOVAL
1. Once the track is removed, slide a floor jack
under the bogie carriage that is being removed
and raise until there is some pressure on the bo-
gie carriage. (Fig. 81)
2. Remove the 4 bolts that secure the bogie car-
riage to the undercarriage frame.
3. Lower the floor jack and slide the jack out
from the bogie carriage.
4. Using the floor jack, raise the suspension
frame (A) just enough so the bogie carriage can
be slid out from under the suspension frame.
(Fig. 82)
WHEEL TUBE REMOVAL
1. Place the bogie carriage on the floor so all
wheels are facing up. (Fig. 83)
2. Remove the 4 bolts (B), which secure the
wheel tube to the bogie carriage.
3. Lift wheel tube straight up out of the slots in
the bogie carriage.
4. Once the wheel tube is removed, the two
brackets that secure the tube to the carriage will
be visible. These two brackets keep the shaft
from turning and allow the tube and the wheels
to rotate.
Fig. 81
Fig. 82
A
Fig. 83
B
SERVICE
