POSI-TRACK 2800 & 2810
PAGE 17
ASV, INC.

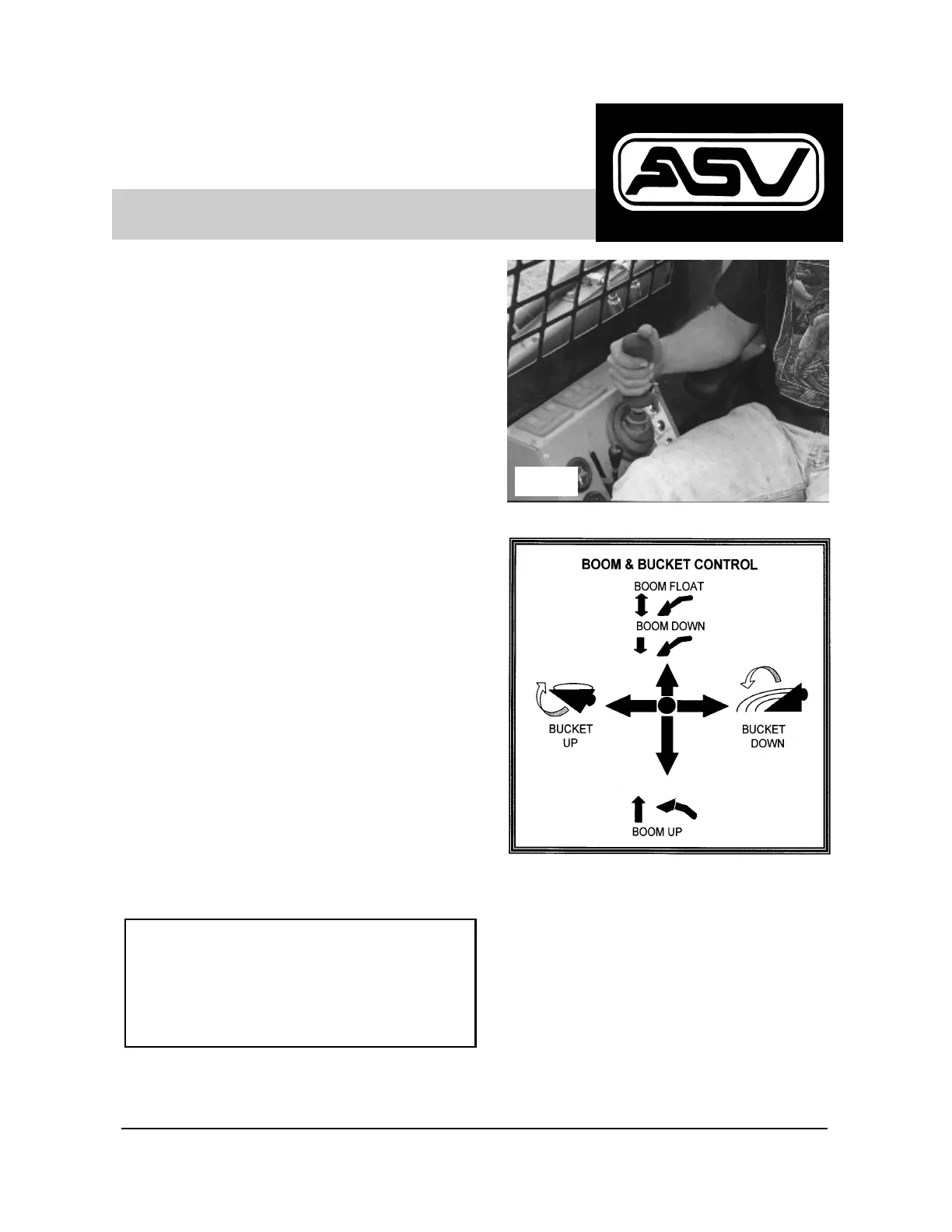

LOADER VALVE CONTROL
(Fig. 10 and
Fig. 11)
To raise the loader, pull back on the joystick at
a controlled rate.
To lower the loader, push forward on the joy-
stick at a controlled rate.
To put the loader in “float” position, push the
lever all the way forward with a quick motion.
To curl the attachment, such as a bucket, move
the joystick to the left at a controlled rate.
To tilt the attachment forward, move the joy-
stick to the right at a controlled rate.
LOADER LOCK OUT PINS
The roll cage comes equipped with two retract-
able pins that slide outward to secure the
loader in the “up” position. It is critical to use
these pins when there is service to be done on
the vehicle, when the loader is up, hooking up
a frame mount attachment, or when someone
has to get in or out of the vehicle when the
loader is up.
!WARNING!
The loader lock out pins must be used to pre-
vent serious injury or death. Never leave the
loader in the “up” position without using the
lock out pins.
Fig. 10
Fig. 11
