POSI-TRACK 2800 & 2810
PAGE 46
ASV, INC.
WHEEL REPLACEMENT

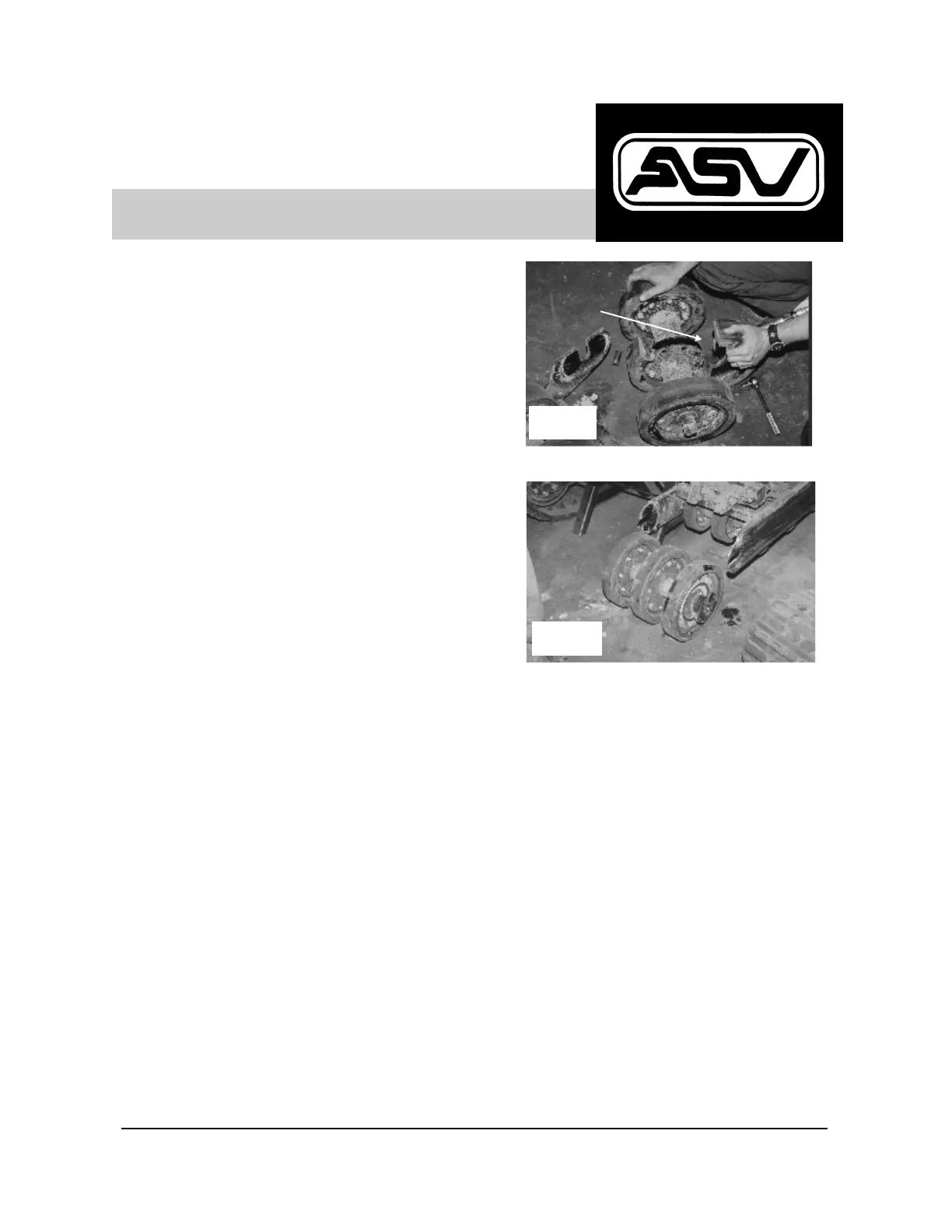

1. The center wheel is split (A) for easy removal
and the two outside wheels are whole wheels.
2. Remove wheels by unbolting the wheel hub
that secures the wheels to the tube. The outside
wheel hubs are slid off the shaft and the wheel
can then be removed easily.
END TUBE REMOVAL
The end wheel tubes are extremely easy to re-
move. There are 4 bolts that fasten the shaft to
the undercarriage frame. Remove 4 bolts and the
tube will slide off the end of the frame. (Fig. 85)
A
Fig. 84
Fig. 85
