POSI-TRACK 2800 & 2810
PAGE 18
ASV, INC.
ENGAGING THE LOCK OUT PINS
(Fig. 12)
1. Raise the loader past the top of the roll cage
and turn off the engine.
2. Loosen the two knobs and undo the red
latch.
3. Slide the knobs outward until they stop and
tighten.
4. Turn the key to the “on” position, to unlock
the loader valve (DO NOT START ENGINE).
Lower the loader onto the pins.
FUSE PANEL
The fuse panel is located to the left of the opera-
tors seat when the operators seat is facing the
loader end of the vehicle.
1. Loosen the fiberglass cover (A) by removing
the three thumb screws (B).
2. Remove the cover by lifting straight up on
the fiberglass cover. This will expose the fuse
panel (C)
3. For extensive work on the fuse panel, remov-
ing the seat will allow better access to the fuse
panel and wiring.
GENERAL OPERATION

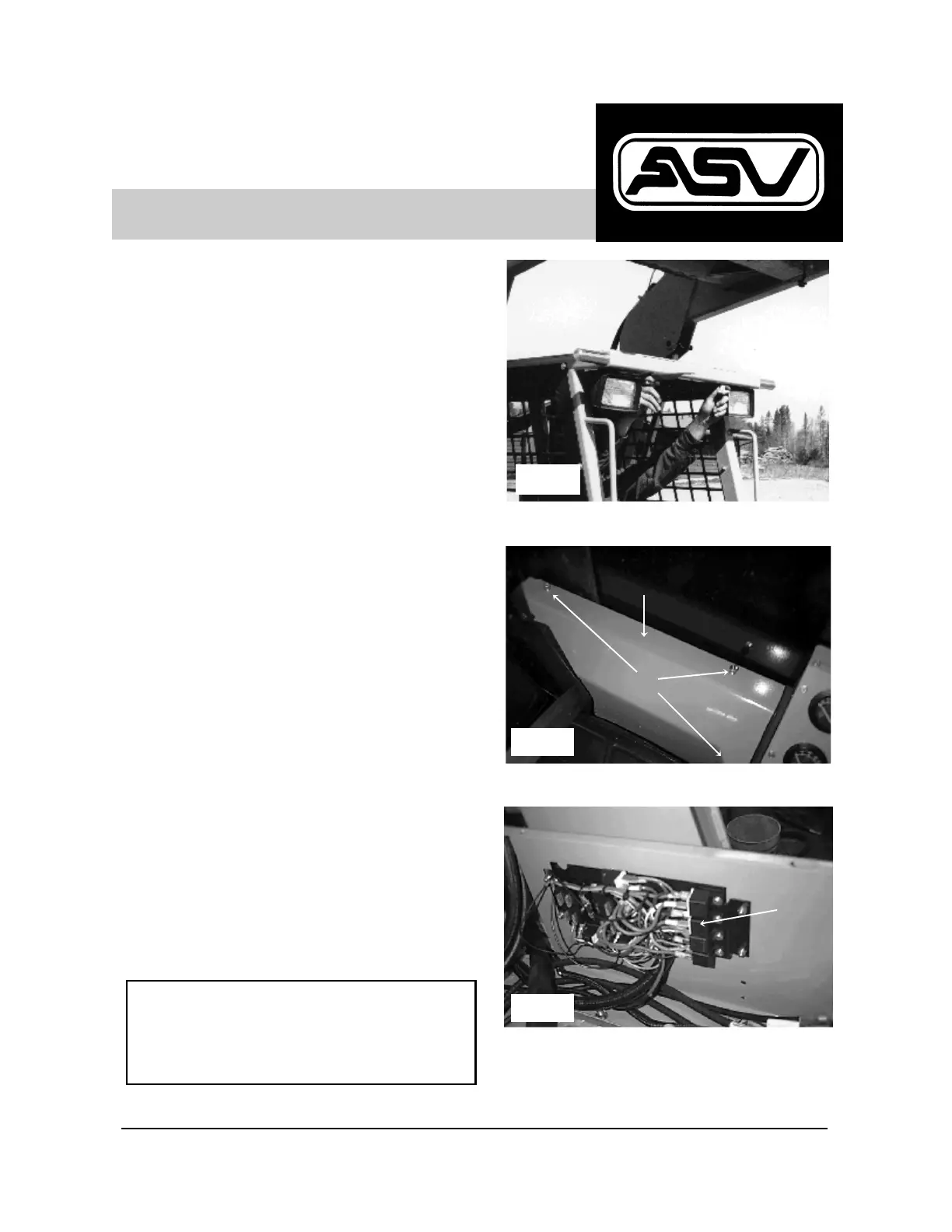

Fig. 12
!WARNING!
Before working on the fuse panel or any wir-
ing, always disconnect the battery before be-
ginning.
Fig. 13
Fig. 14
A
B
C
