RADIATOR AND OIL COOLER

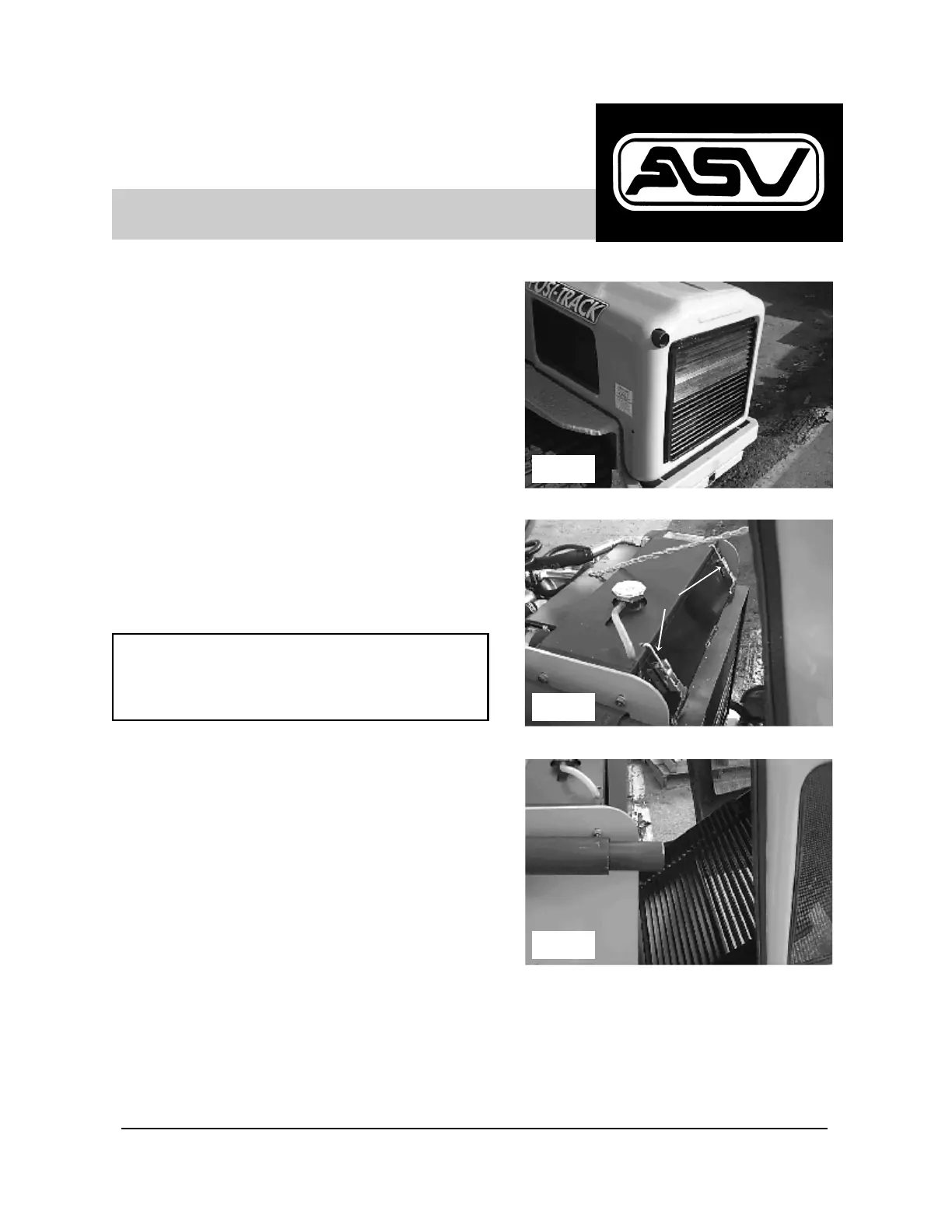

The 2800 and 2810 use a "pusher" fan which
pull air in through the sides of the engine hood
and pushes it through the coolers and the lou-
vered grill (Fig. 57). This system allows the air
to be "filtered" through the hood's screening be-
fore it reaches the coolers. This also keeps hot
air and dust off the operator. Depending on the
conditions the coolers will most likely need to
be cleaned at some point. Since any debris will
collect on the engine side of the coolers the de-
bris must be cleaned by forcing the debris off
from the other side of the coolers. Air or water
under pressure works best for thorough clean-
ing.
1. Open the hood by undoing the 2 rubber
bungie cords, which secure the hood to the
frame.
2. Undo the two clasps (A) that holds the lou-
vered grill shut. (Fig. 58)
3. Swing the grill away from the engine.
(Fig. 59)
4. The coolers are now totally accessible for
cleaning.
!WARNING!
Always shut the vehicle off before cleaning the
radiator and oil cooler.
