ASV 2810 - SECTION 5 - SERVICE: SPROCKET REMOVAL; SPROCKET REMOVAL

POSI-TRACK 2800 & 2810
PAGE 47
ASV, INC.
SPROCKET REMOVAL
There are 3 bolts that fasten the planetary bear-
ing plate to the undercarriage frame, and 4 bolts
that fasten it to the bearing flange. The track
needs to be removed before beginning this pro-
cedure.
1. Remove the 4 bolts that fasten the bearing
plate to the flange. (Fig. 86)
2. Remove the 3 bolts that fasten the bearing
plate to the undercarriage frame. (Fig. 87)
3. Tapping the bearing plate with a rubber ham-
mer will help dislodge it from the flange. Pull
the bearing plate straight out. (Fig. 88)
4. Remove the 9 lug nuts that fasten the drive
sprocket to the planetary gearbox. Pull the
sprocket straight out from the planetary gearbox.
(Fig. 89)

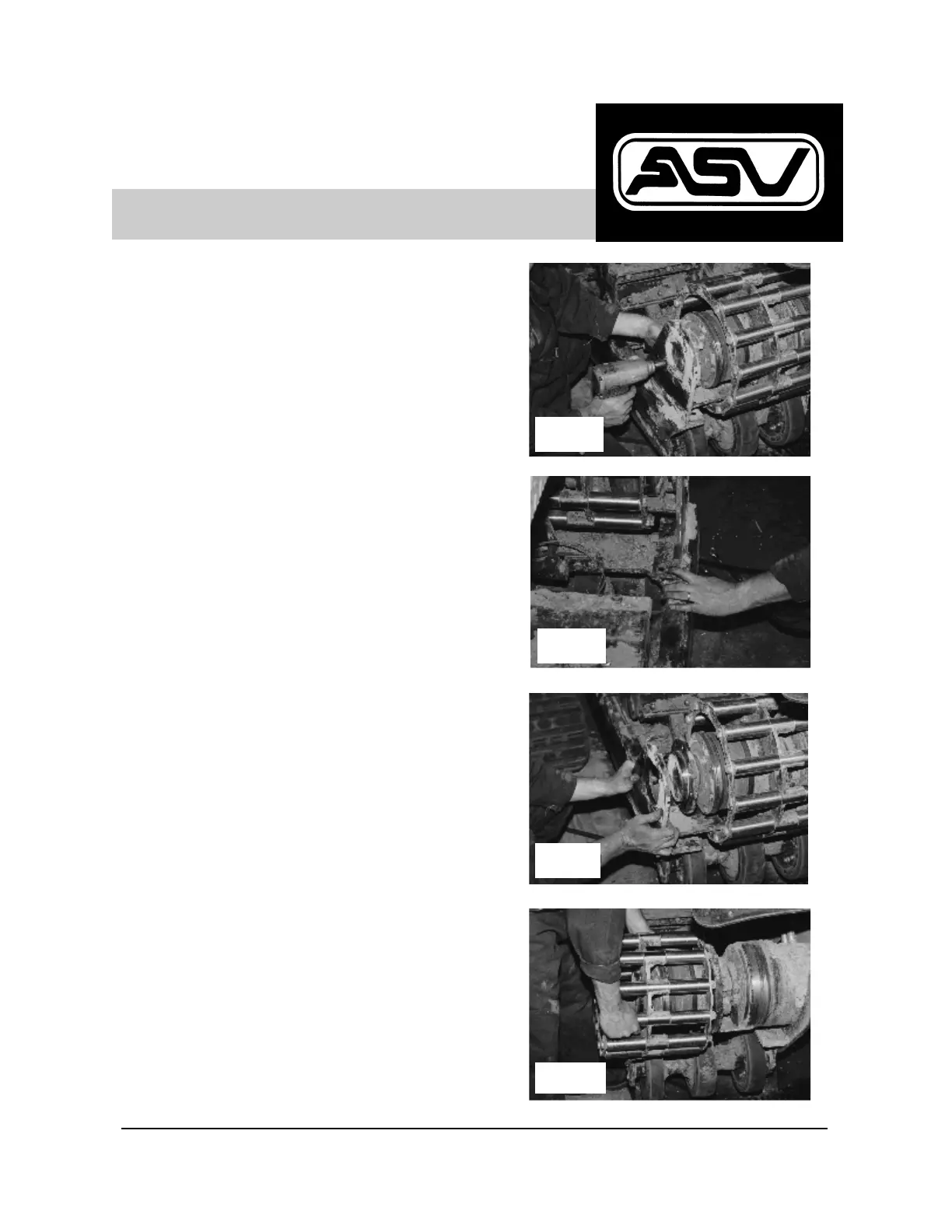

Fig. 86
Fig. 87
Fig. 88
Fig. 89
