POSI-TRACK 2800 & 2810
PAGE 19
ASV, INC.

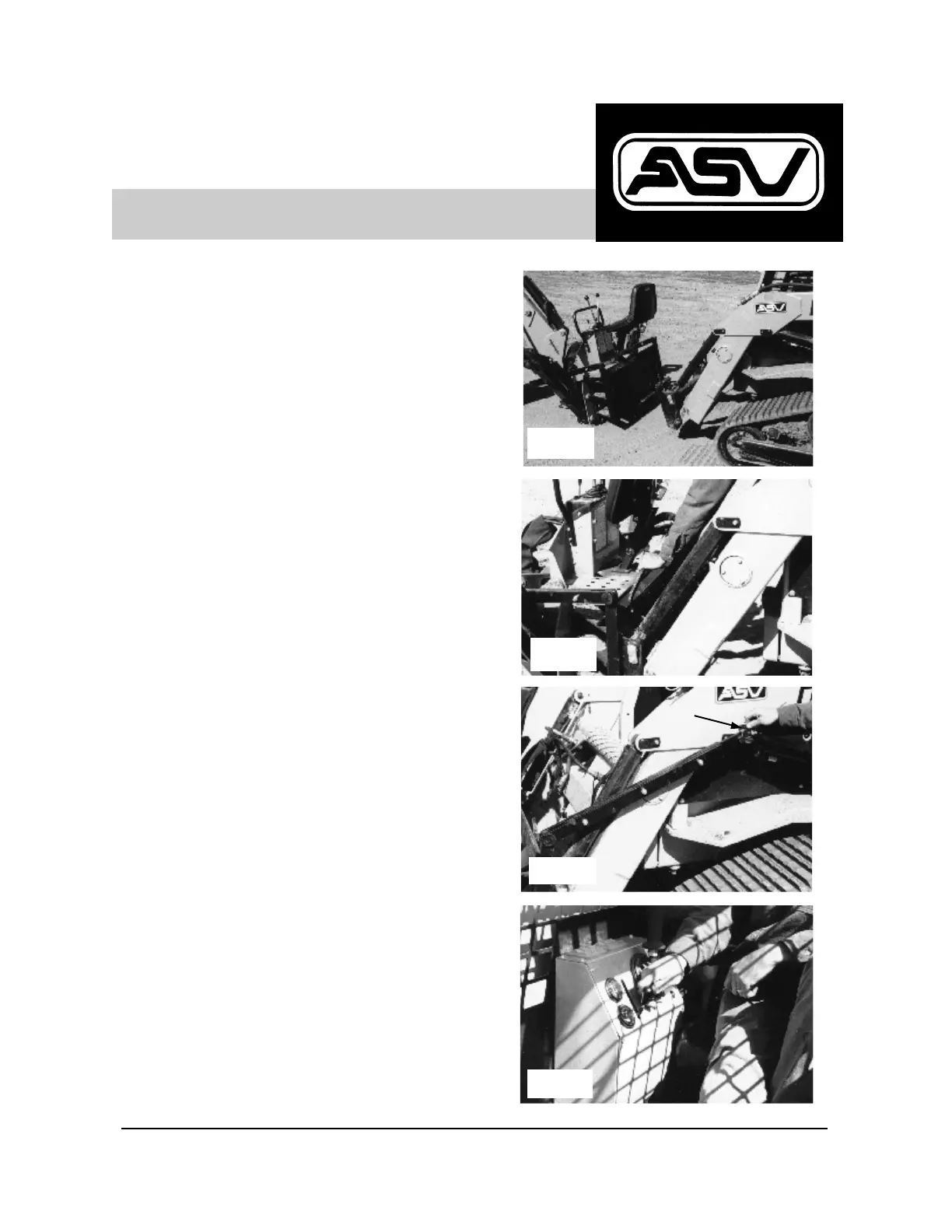

QUICK-ATTACH MOUNT
Quick-attach attachments are designed to be
quick and easy to install or remove. The follow-
ing instructions use the backhoe as an example.
The backhoe uses additional stabilizers that
other quick-attach attachments do not.
1. With the quick-attach levers up, drive into
the backhoe’s quick-attach plate and curl the
backhoe towards the vehicle with the quick-
attach tilt cylinders. (Fig. 15)
2. Lock the levers in place by pulling the levers
inward and down. (Fig. 16)
3. Replace the loaders lift cylinder pins, with
the pins that are supplied with the backhoe.
These pins will allow a place for the stabilizers
to attach to the loader for extra stability. (A)
4. Secure the stabilizers to the loaders lift cylin-
der pins using the supplied lynch pins. (Fig. 17)
5. Hook up the hydraulic quick-couplers.
6. Move the low flow auxiliary lever to the
“down” position. This will send hydraulic oil to
the backhoe valve and it is ready to use.
(Fig. 18)
Fig. 15
Fig. 16
Fig. 17
Fig. 18
GENERAL OPERATION
A
