POSI-TRACK 2800 & 2810
PAGE 12
ASV, INC.

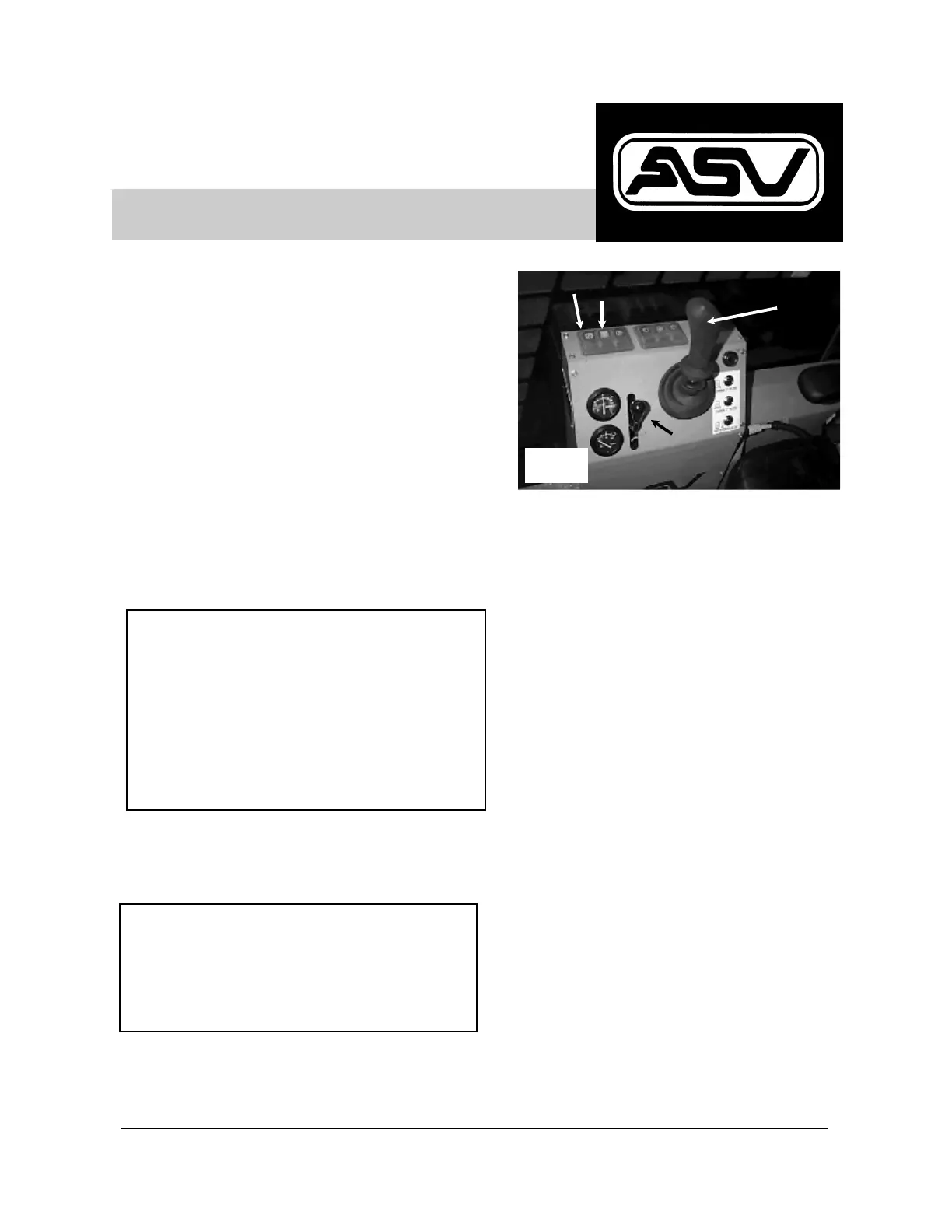

HYDRAULIC CONTROL CONSOLE
(Fig. 3 and Fig. 4)
J) Main Valve Joystick
Controls the loader, dozer or 3-point hitch.
K) Auxiliary Low Flow Lever
Controls the direction of the low flow hydraulic
oil.
L) Parking Brake Switch
Used to activate the brake activating solenoid.
This switch locks in position to prevent acci-
dental engagement. There is a small switch
within the main switch, that must be pressed
before the main switch will unlock.
M) Glow Plug Switch
When pressed, activates the engine glow plugs.
NOTE
It is important that the low flow Aux. lever is
in neutral if nothing is hooked up to the low-
flow circuit. If it is not in neutral, sluggish
operation of the machine, loader and engine
will occur. The machine will also start hard if
this lever is not in the center (neutral) posi-
tion.
NOTE
The parking brake is automatically engaged
when the engine is turned off. The brake so-
lenoid will allow you to engage the brake
while the engine is running.
J
L M
Fig. 3
GENERAL OPERATION
Fig. 3
J
K
L M
