ASV 2810 - Page 44

POSI-TRACK 2800 & 2810
PAGE 44
ASV, INC.

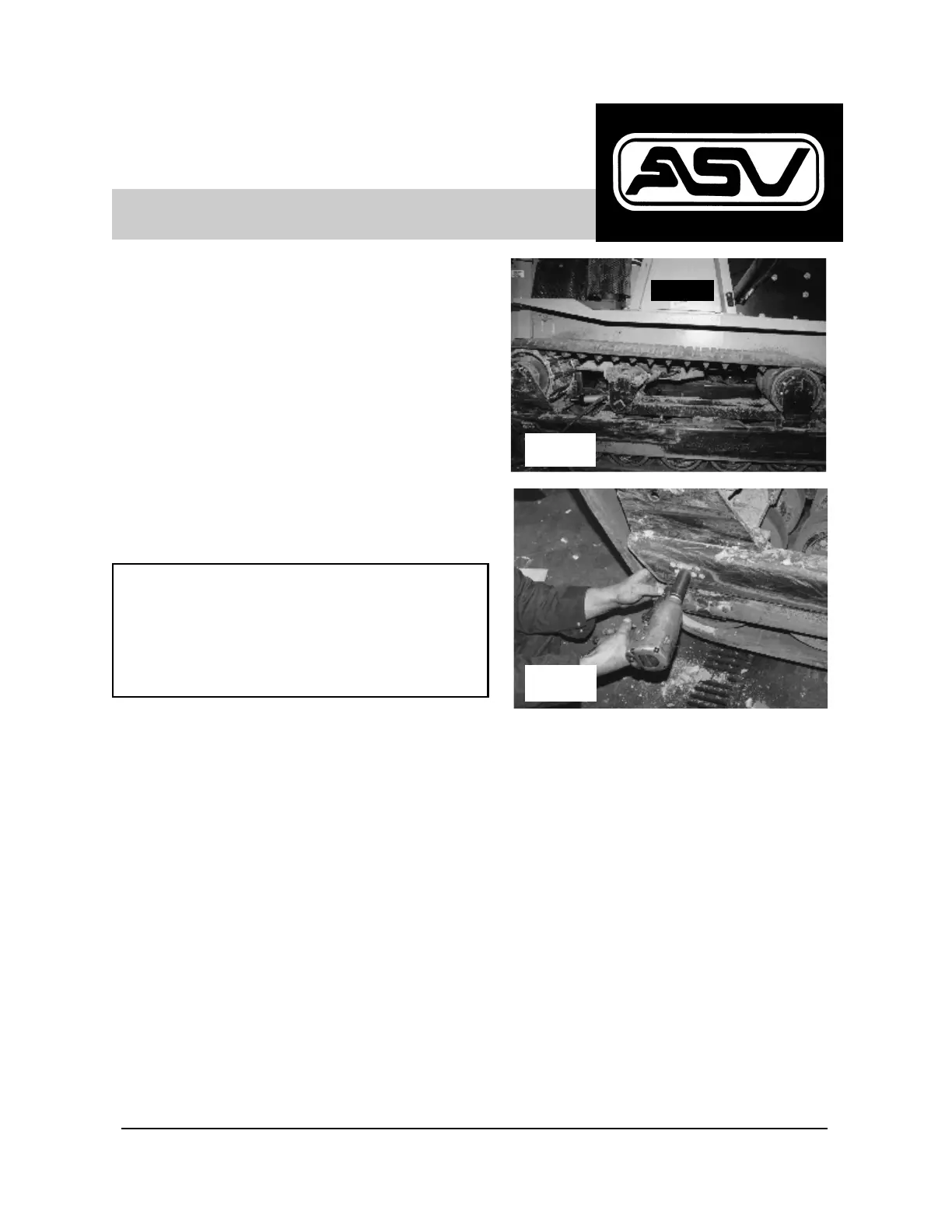

8. Jack the planetary mount back until the track
is straight (Fig. 79) between the drive sprocket
and the carrier wheels. (DO NOT OVER
TIGHTEN).
9. Line up the set of holes in the sliding motor
mount and the undercarriage frame. Insert track
adjustment bolts and tighten. (bolts should be in
same hole location.) (Fig. 80)
10. Tighten bolts in slots on both sides of the
undercarriage.
Fig. 79
Fig. 80
CAUTION
It is critical that the drive sprocket is aligned
with the undercarriage frame. The tension ad-
justment bolts must be in the same hole location
or track derailment will occur.
SERVICE
