ASV 2810 Service Manual

POSI-TRACK 2800 & 2810
PAGE 21
ASV, INC.

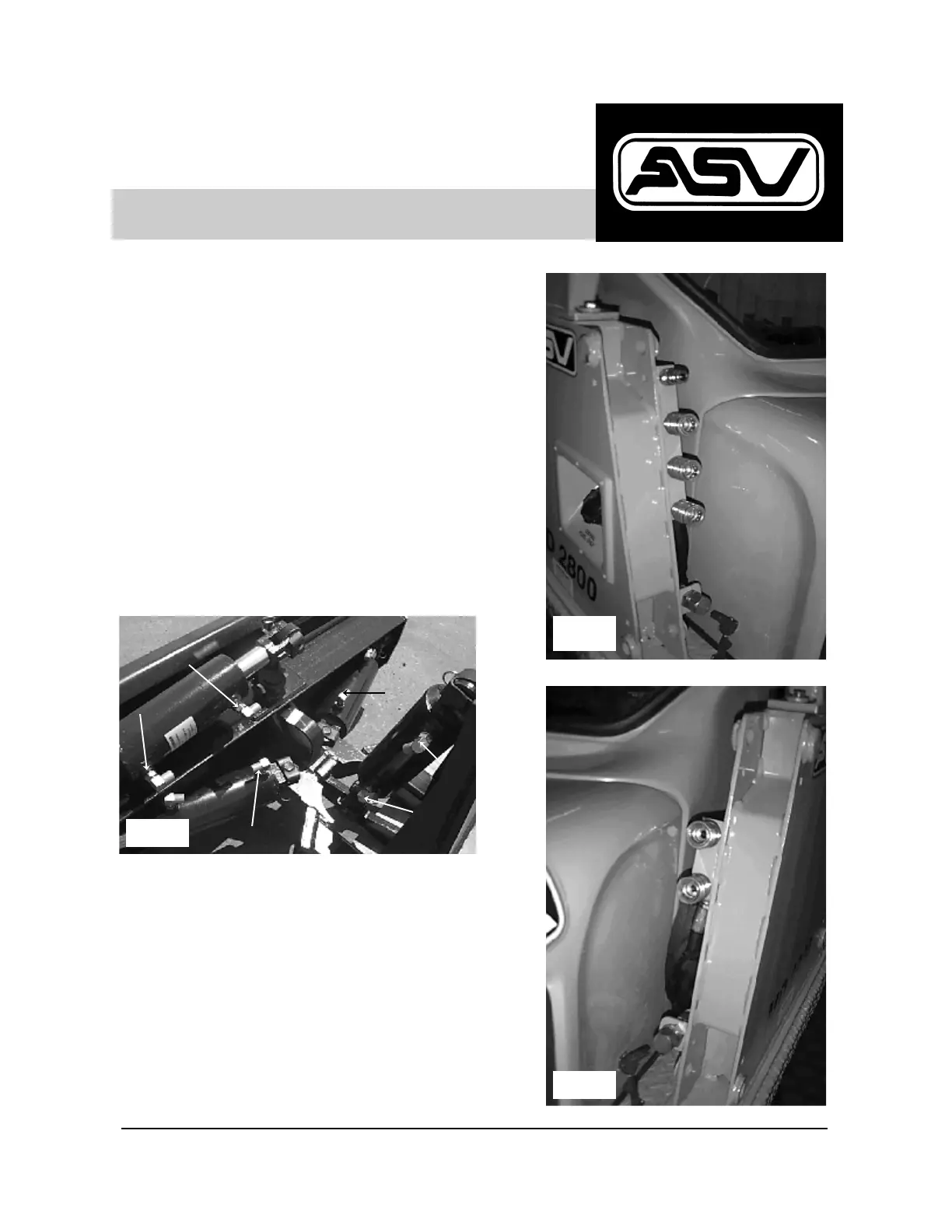

7. Route the hoses between the roll cage and the
loader towers and hook up the hoses to the quick-
couplers. The hoses and the quick-couplers are
all color coded for easy hook up; however, if the
color codes have been removed, refer to figures,
20, 21, 22 for proper hose configuration. (Match
the letters on the dozer blade with the letters on
the quick-couplers for proper hose configura-
tion).
8. Line up the holes in the receptacle and in the
dozer blade and insert the pins through the recep-
tacle. Secure the pins with the small lynch pins.
If the pins do not line up, use the blade hydrau-
lics to fine tune the hole alignment.
F A
B
C
D
GENERAL OPERATION
F
E
A
B
C
D
F
E
A
B
C
D
Fig. 20
Fig. 21
Fig. 22
