POSI-TRACK 2800 & 2810
PAGE 42
ASV, INC.
4. Insert the jack between the rear axle mount
and the steel tab (Fig. 71). Jack the planetary
mount forward until the jack is full stroke. Re-
move the jack and add an extension to the ram
of the jack. Continue jacking the planetary
mount forward until it comes in contact with the
undercarriage frame.
5. There are 4 bolts, which mount the carrier
wheels to the undercarriage frame. The 2 bolts
closest to the drive sprocket (C) need to be loos-
ened enough so the assembly can hinge on
them. (DO NOT REMOVE ).
6. Remove the other 2 bolts and hinge the as-
sembly back until it hits the undercarriage
frame. (Fig. 72)
7. Position yourself behind the drive sprocket
and grab the bottom inside portion of the track.
Pull the track down, getting the drive lugs to
clear the 10" idler wheels and then pull the track
to the outside. Do not attempt to get the whole
track off yet, just get one row of drive lugs past
the outside 10" idler wheel.
8. Pull the track up and off the drive sprocket.
The track can now be pulled off the 10" idler
wheels. Continue pulling the track off the top
of the undercarriage and slide it out from be-
neath the undercarriage. Pull the track forward
and out to remove the track from the 14" idler
wheels. The track is now off. (Fig. 74)
B

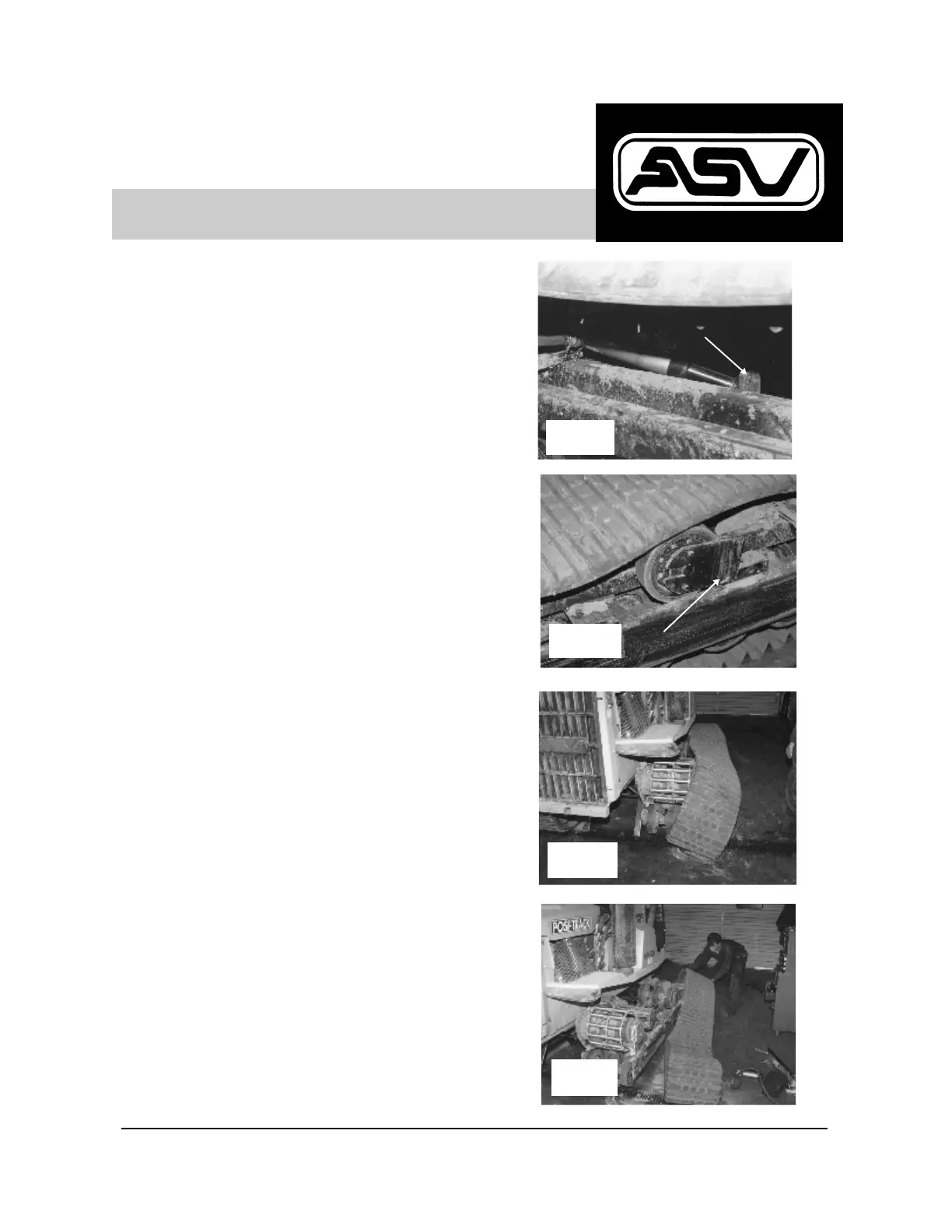

Fig. 71
C
Fig. 72
Fig. 73
Fig. 74
