Getting started
Base unit installation

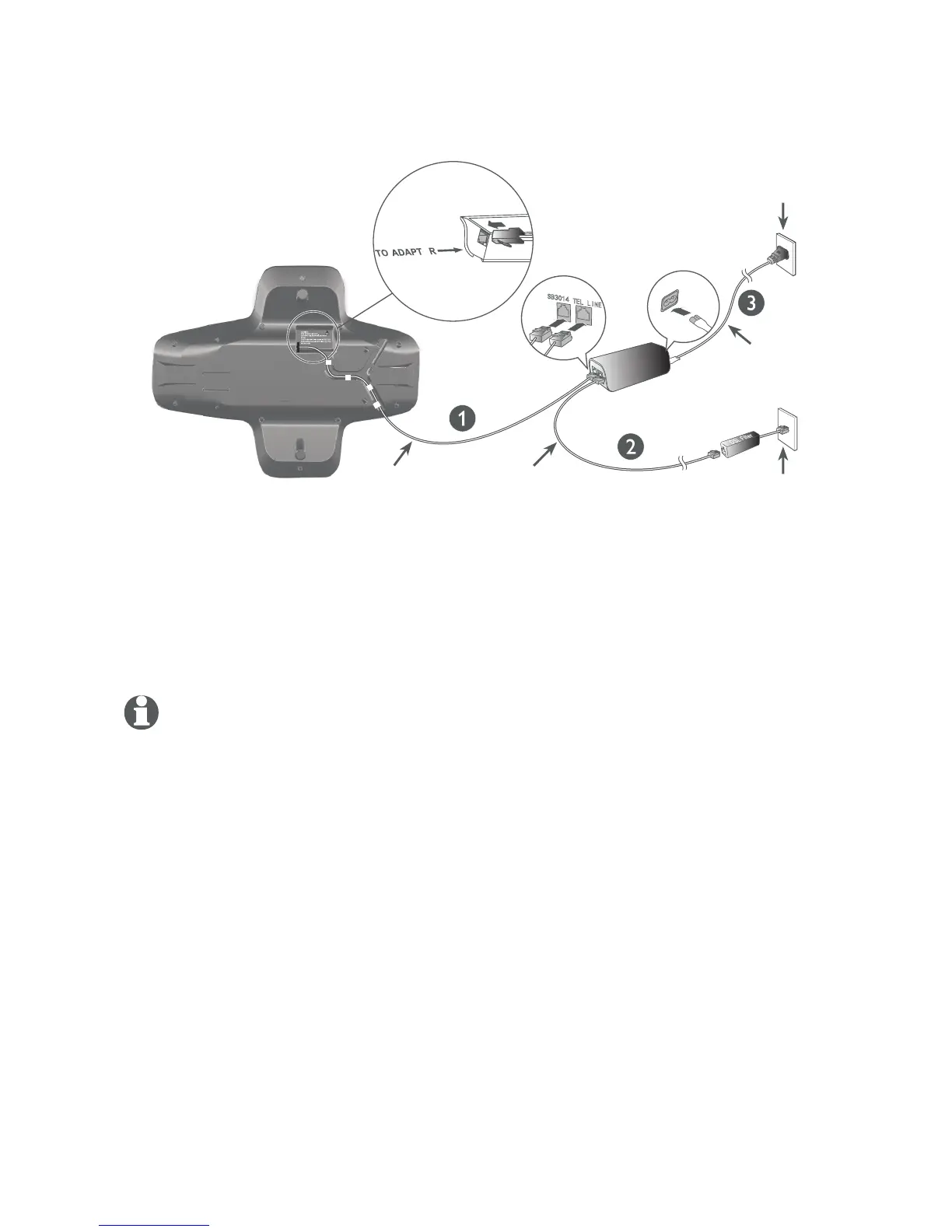

Install the base unit, as shown below. When the base unit is powered up, the
status indicators turn green for about two seconds.
Plug one end of the DC power cable into the base unit, and plug the
other end into the SB3014 jack of the power adapter. Route the cord
through the slots.
Plug one end of the telephone line cord into the TEL LINE jack of the
power adapter, and plug the other end into a wall jack.
Plug the small end of the AC power cord into the power jack of the adapter,
and plug the large end into the wall outlet not controlled by a switch.
1.
2.
3.
IMPORTANT INFORMATION
1. Use only the AC power adapter supplied with this product. To order a replacement, visit
our website at www.smbtelephones.att.com or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
2. The AC power cord is intended for a vertical or floor mount position. The prongs are not
designed to hold the plug in place if it is plugged into a ceiling or cabinet outlet.
Wall jack
7(//,1(
6%

Wall outlet
DC power cable
Telephone
line cord
AC power cord
Slots
E
NOTES:
The AT&T SB3014 Conference Speakerphone with Wireless Mics is not a network device and
is not PoE (Power over Ethernet) compatible. It does not require an Ethernet network to work.
Do not connect it to your Ethernet network or directly with any other network devices.
The SB3014 is not compatible with IP-PBX systems, unless it comes with an analog-line
interface with RJ-11 connector. If you already have an IP-PBX system in place, please contact
your system provider for a digital-to-analog interface converter.
The supplied power adapter is designed for use with only the SB3014. It is not PoE
compatible and is not designed to power any network devices. Do not connect the supplied
power adapter to any other network devices through the supplied DC power cable or any
other Cat5e Ethernet cable.
The SB3014 requires connection to AC power and a telephone line to operate.
If you subscribe to digital subscriber line (DSL) high-speed Internet service through your
telephone line, you must install a DSL filter between the telephone line cord and wall jack.
Contact your DSL service provider for more information about DSL filter.
•
•
•
•
•
