Atari 2600 Field Service Manual

Switch
Switch
Switch
Switch
X-Y Cntl
X-Y Cntl
X-Y Cntl
X-Y Cntl
X-Y Cntl
. X-Y Cntl
X-Y Cntl
X-Y Cntl
X-Y Cntl
X-Y Cntl

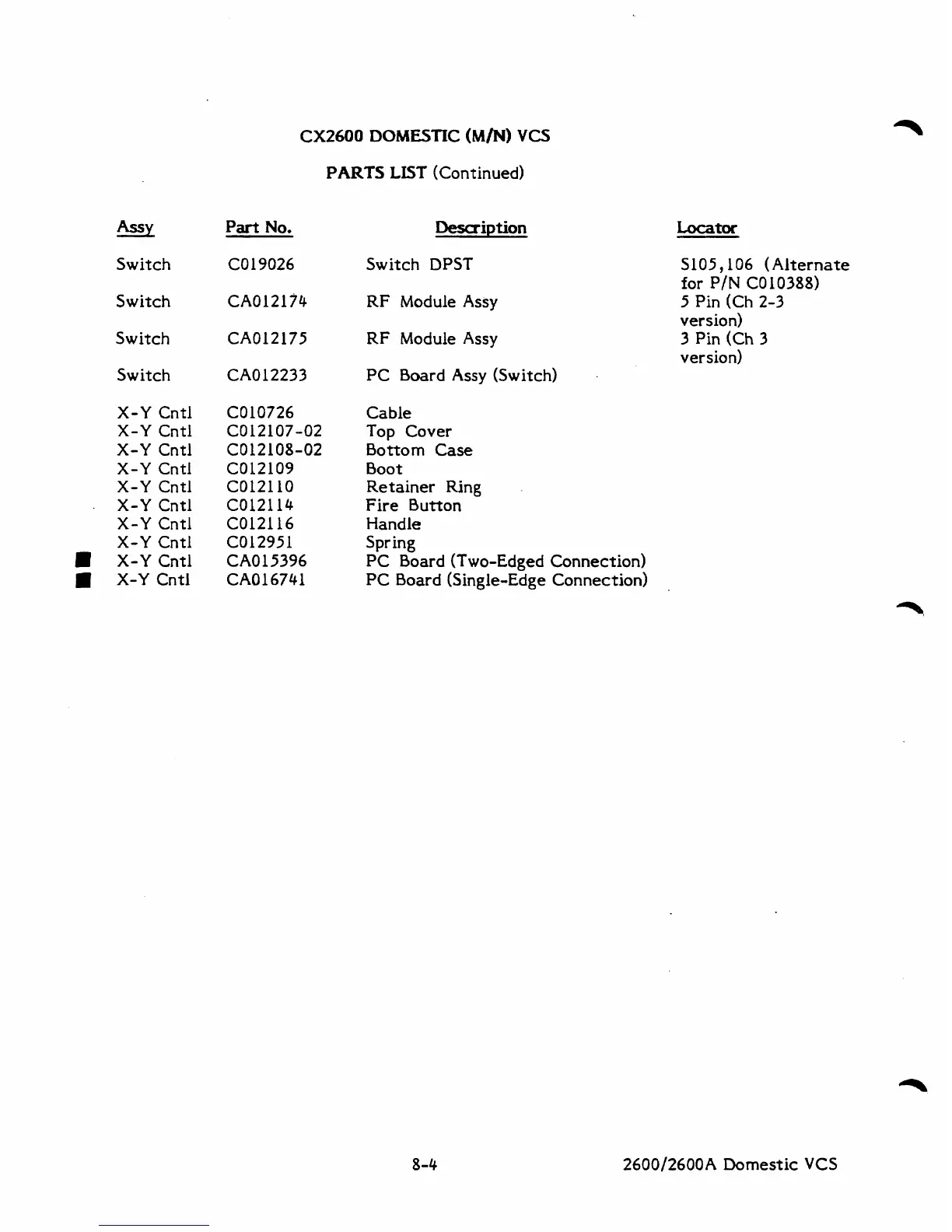

CX2600 DOMESTIC (M/N) VCS
PARTS LIST (Continued)
Part No.
CO 19026
CA012174
CA012175
CA012233
C010726
CO12107-02
C012108-02
C012109
C012110
C012114
C012116
C012951
CAO 15396
CAOl674l
Description
Switch DPST
RF Module Assy
RF Module Assy
PC Board Assy (Switch)
Cable
Top Cover
Bottom
Case
Boot
Retainer
Ring .
Fire Button
Handle
Spring
PC Board (Two-Edged Connection)
PC Board (Single-Edge Connection)
Locator
5105,106 (Alternate
for PIN C0 10388)
5 Pin (Ch 2-3
version)
3 Pin (Ch 3
version)
2600/2600A Domestic VCS

Atari 2600 Specifications

General

Manufacturer	Atari, Inc.
Release Date	September 11, 1977
CPU	MOS Technology 6507
CPU Speed	1.19 MHz
RAM	128 bytes
Graphics	Television Interface Adaptor (TIA)
Media	ROM cartridge
Successor	Atari 5200
Colors	128
Sound	2 channels
ROM	4 KB
Controller Input	Joystick
