Atari 2600 Field Service Manual

CX2600A DOMESTIC (MINI VCS

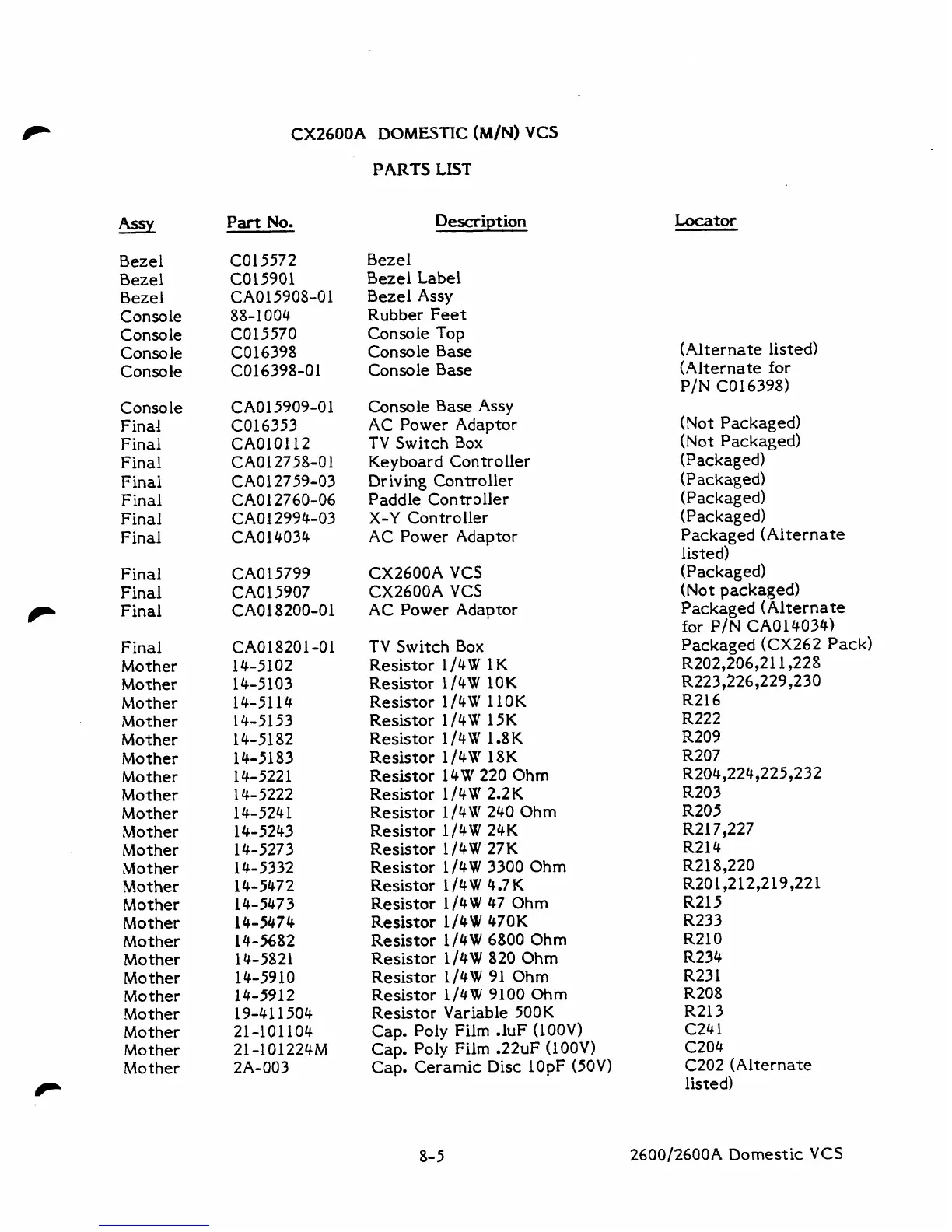

PARTS LIST
Bezel
Bezel
Bezel
Console
Console
Console
Console
Console
Fina4
Final
Final
Final
Final
Final
Final
Final
Final
p Final
Final
Mother
Mother
Mother
Mother
Mother
Mother
Mother
Mother
Mother
Mother
Mother
Mother
Mother
Mother
Mother
Mother
Mother
Mother
Mother
Mother
Mother
Mother
Mother
Part No.
Description
Bezel
Bezel Label
Bezel Assy
Rubber Feet
Console Top
Console Base
Console Base
Console Base Assy
AC Power Adaptor
TV Switch Box
Key board Controller
Dr
iv ing Controller
Paddle Controller
X-Y Controller
AC Power Adaptor
CX2600A VCS
CX2600A VCS
AC Power Adaptor
TV Switch Box
Resistor
114
W 1 K
Resistor 1 /4W 10K
Resistor 1 /4W 11
OK
Resistor 1 /4 W 15K
Resistor 1 /4W 1.8K
Resistor 1 /4W 18K
Resistor 14W 220 Ohm
Resistor 1 /4
W 2.2K
Resistor 1 /4W 240 Ohm
Resistor 1 /4
W 24K
Resistor 1 /4W 27K
Resistor 1 /4W 3300 Ohm
Resistor
1 /4 W 4.7 K
Resistor 1 /4W 47 Ohm
Resistor l/4W 470K
Resistor l/4W 6800
Ohm
Resistor 1 /4W 820 Ohm
Resistor 1/4W 91 Ohm
Resistor 1/4W 9100 Ohm
Resistor Variable 500K
Cap. Poly Film
.luF (100V)
Cap. Poly Film .22uF (100V)
Cap. Ceramic Disc 1 OpF (50V)
Locator
(Alternate listed)
(Alternate for
P/N C016398)
(Not Packaged)
(Not Packaged)
(Packaged)
(Packaged)
(Packaged)
(Packaged)
Packaged (Alternate
listed)
(Packaged)
(Not packaged)
Packaged (Alternate
for
PIN CA014034)
Packaged (CX262
Pack)
R202,206,211,228
R223,226,229,230
R216
R222
R209
R207
R204,224,225,232
R203
R205
R217,227
R214
R218,220
R201,212,219,221
R215
R233
R210
R234
R23 1
R208
R213
C241
C204
C202 (Alternate
listed)
2600/2600A
Domestic VCS

Atari 2600 Specifications

General

Manufacturer	Atari, Inc.
Release Date	September 11, 1977
CPU	MOS Technology 6507
CPU Speed	1.19 MHz
RAM	128 bytes
Graphics	Television Interface Adaptor (TIA)
Media	ROM cartridge
Successor	Atari 5200
Colors	128
Sound	2 channels
ROM	4 KB
Controller Input	Joystick
