Atari 2600 Field Service Manual

Consumer Product Service
Manager of Tehnical Support
-
- -

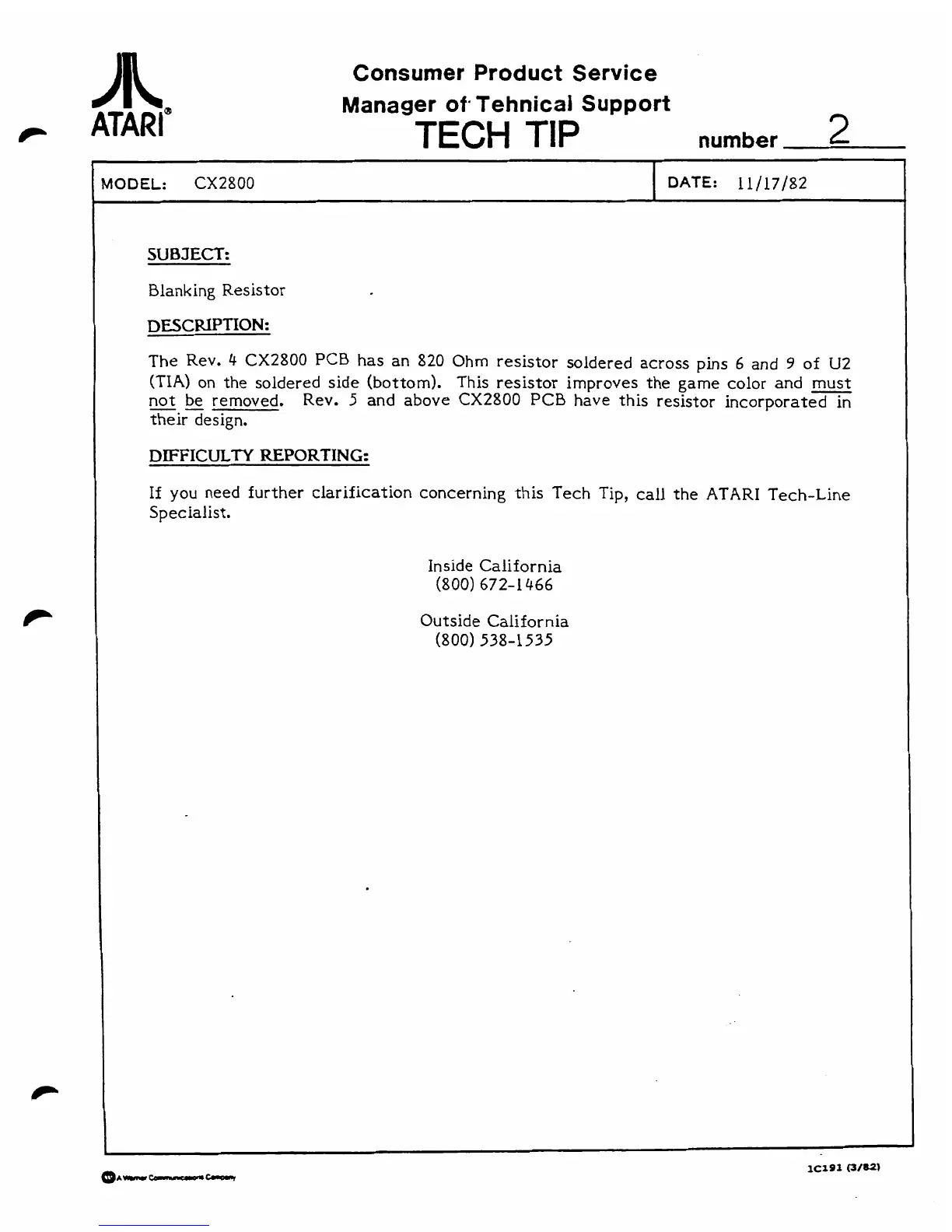

TECH TIP
number 2
SUBJEm.
Blanking Resistor
DESCRIPTION:
The Rev. 4 CX2800 PCB has an 820 Ohm resistor soldered across pins 6 and 9 of U2
(TIA) on the soldered side (bottom). This resistor improves the game color and must
not be removed. Rev.
5 and above CX2800 PCB have this resistor incorporated in
--
their design.
DIFFICULTY REPORTING:
If you need further clarification concerning this Tech Tip, call the ATARI Tech-Line
Specialist.
Inside California
(800)
672-1 466
Outside California
(800) 538-1
535
