CS1732B / CS1734B User Manual
12

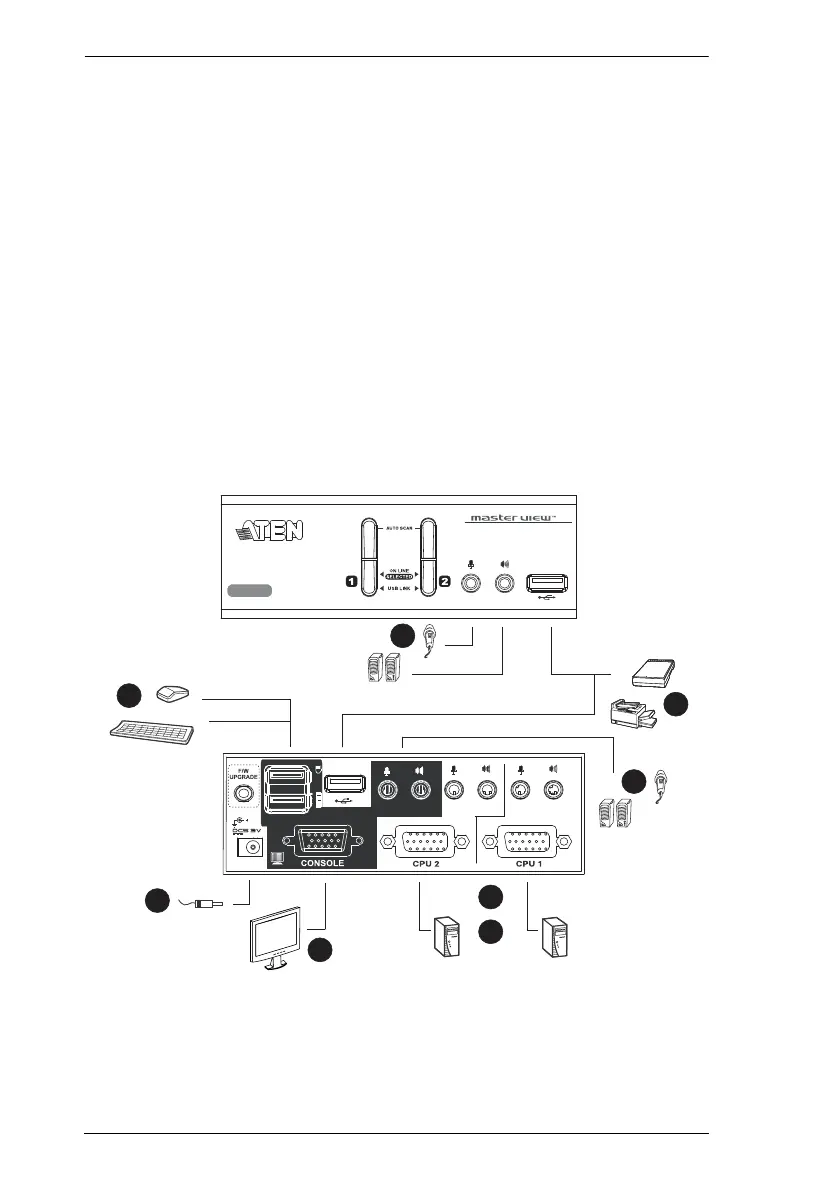

5. At the other end of the cable:
a) For a PS/2 connection (see page 13), plug the keyboard, mouse, video,
microphone and speaker cables into their respective ports on the
computer.
b) For a USB connection (see page 13), plug the USB, video, microphone
and speaker cables into their respective ports on the computer.
Repeat steps 4 and 5 for any other computers you are connecting up.
6. Plug the power adapter that came with your switch into an AC power
source, then plug the power adapter cable into the switch's Power Jack.
7. Plug your USB peripherals into the USB hub sections on the front and
back panels.
8. Turn on the power to the computers
USB 2.0
USB 2.0
USB 2.0
7
3
1
4
6
2
3
5
.
