ATI Radeon™ HD 3800 Series User Manual
42

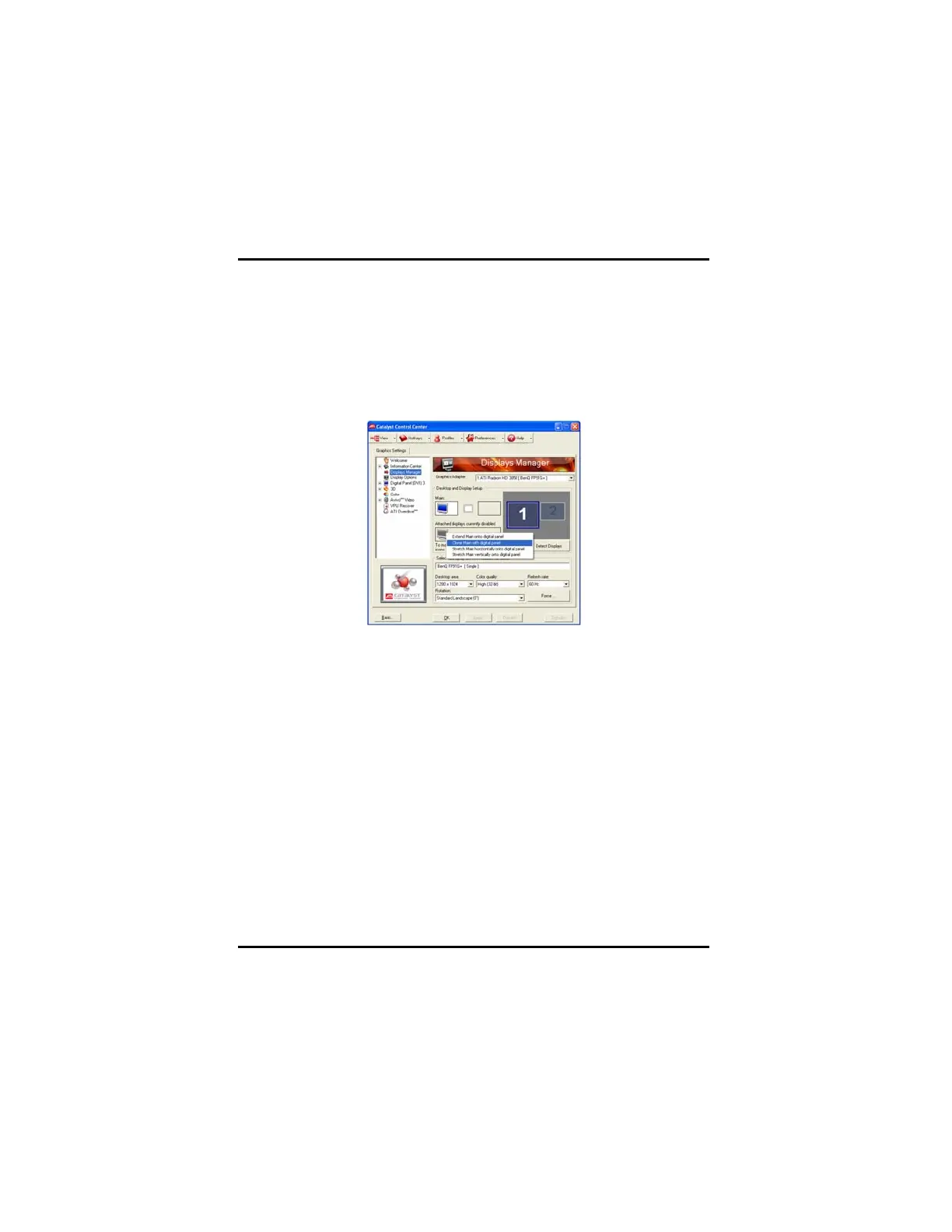

3.6 Displays Manager Advanced View
Use Displays Manager Advanced View to set your desktop resolution, the
display refresh rate, and arrange your displays.
To change your display configuration requires dragging and/or clicking or
right-clicking a display icon.
3.6.1 Enable Clone Mode
If the secondary device is disabled:
1. Click Displays Manager in Advanced View.
2. Click and drag the display device icon in Additional Displays to the
empty box to the right of the Main box.
3. Click Clone Main with [display device] in the pop-up menu.
If the secondary display is enabled:
1. Right click the display device icon in the “Desktop 2” box when in
Extended mode (in the “Rightmost” box when in Stretch Horizontal
mode, or in the “Lower” box in Stretch Vertical mode).
2. Click Clone Main with [display device].
3. Click Yes to the Displays Manager Notification dialog.
Note: Display device can be CRT, DFP, TV, or HDTV.
