Operator's instructions
1. General
Principal components

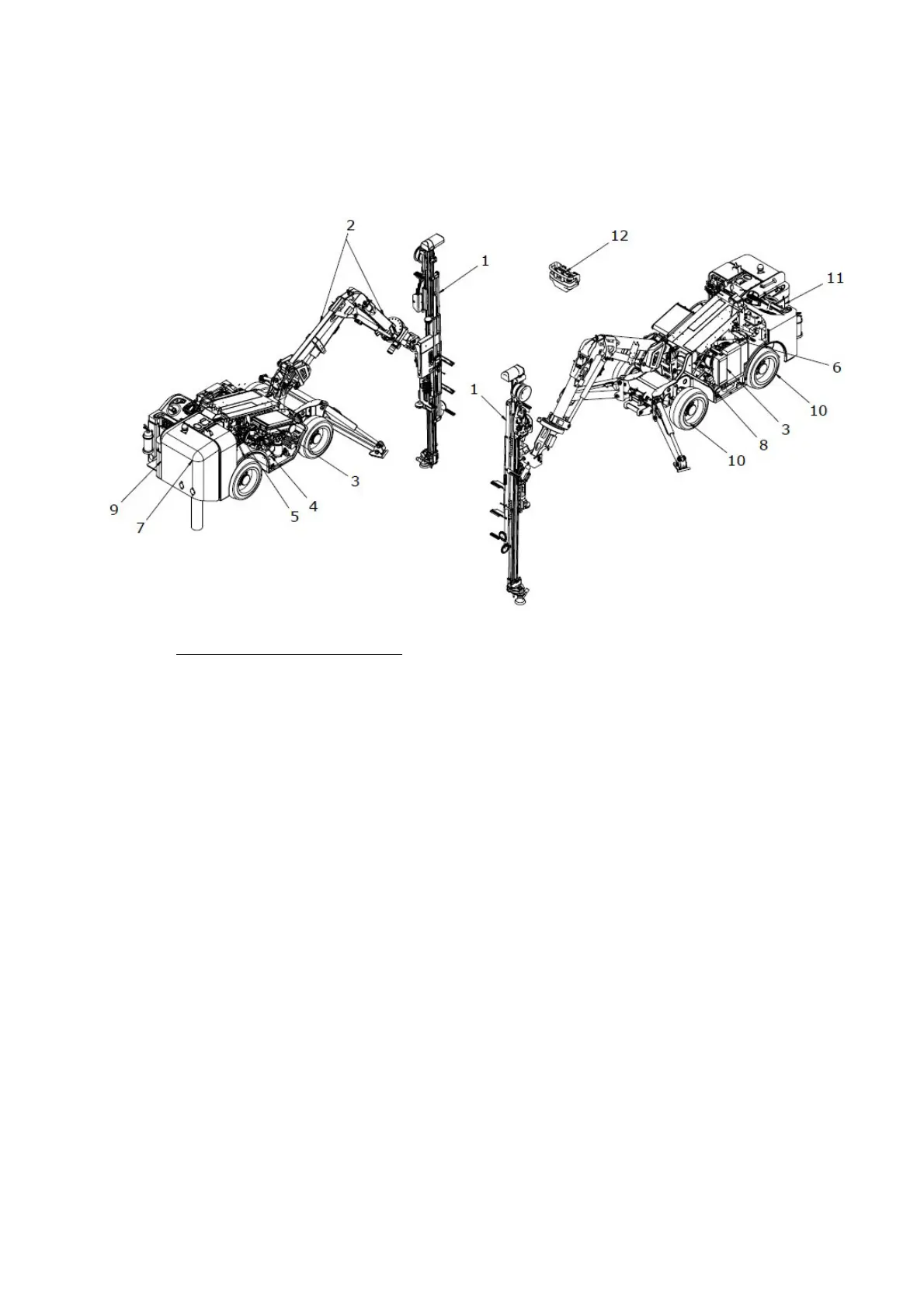

Figure: Principal components
1 Feeder 7 Dust collector (DCT)
2 Boom system 8 Compressor
3 Radiator 9 Radio receiver
4 Hydraulic oil pumps 10 Wheels
5 Diesel engine 11 Electric cabinet
6 Air tank 12 Remote control box
