Operator's instructions
4. Controls
Manometer panel
Note
The pressure gauges must be checked during drilling.

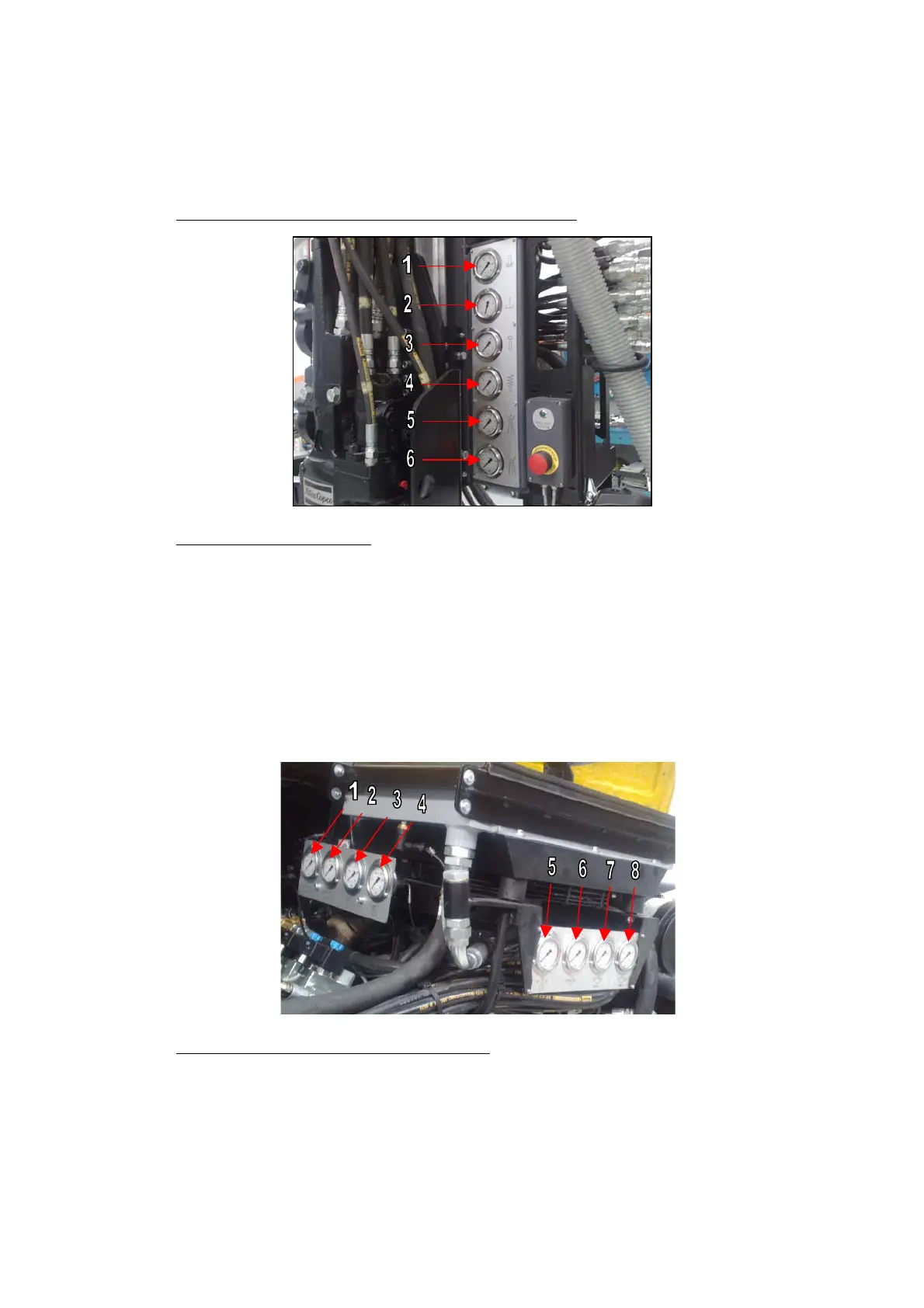

Figure: Slide manometers
1 Percussion pressure manometer
2 Damper pressure manometer
3 Rotation pressure manometer
4 Thrust pressure manometer
5 Lubrication air manometer
6 Flushing air pressure manometer
Figure: Engine compartment manometers
1 LS signal pressure manometer
2 Standby pressure manometer
3 LS pump pressure manometer
4 Damper pressure manometer
