Operator's instructions
5. Operating
Translation when climbing/descending with PMI
1 Activate the PMI control point (see Enable controls)
2 Go to the Translation – Winch screen
3 Disengage the winch drum with the disengagement mechanism (A) to enable the cable to be
pulled out.

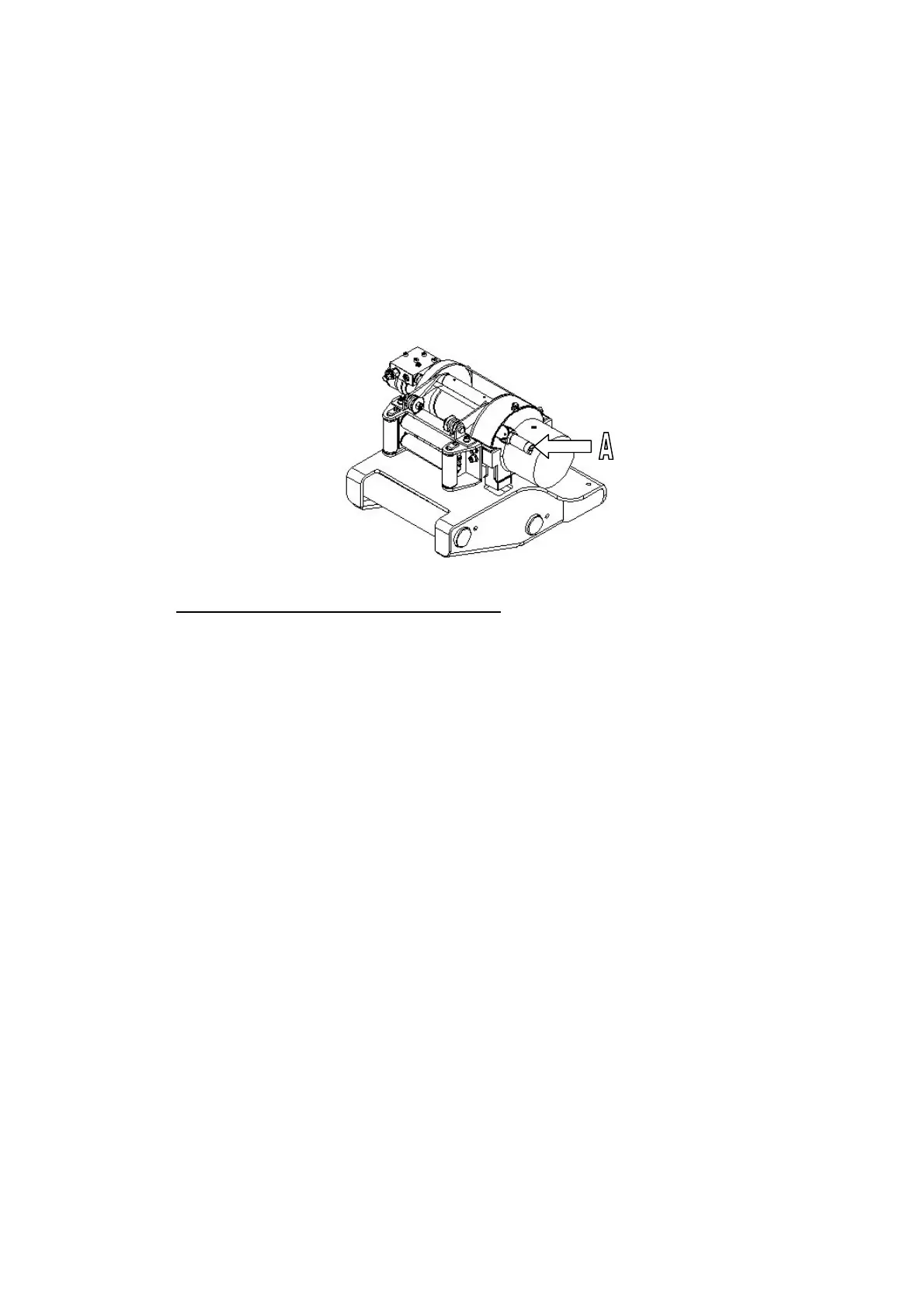

Figure: Disengagement mechanism, winch
4 Pull out the wire and fasten the eye to the anchor point.
5 Lock the winch drum with the disengagement mechanism (A).
6 Set the power of the winch on the Translation – Winch screen by acting on key 5
7 Set the mode of the winch to Manual (A/I key 4)
8 Hold down key 3 and act on the multi-function lever to tension the winch cable
9 Set the winch mode to Automatic (T key 4)
10 Execute the movement of the drill by holding down key 1 and acting on the multi-function
lever.
