82
Operator's instructions
5. Operating
Translation when climbing/descending with Remote control

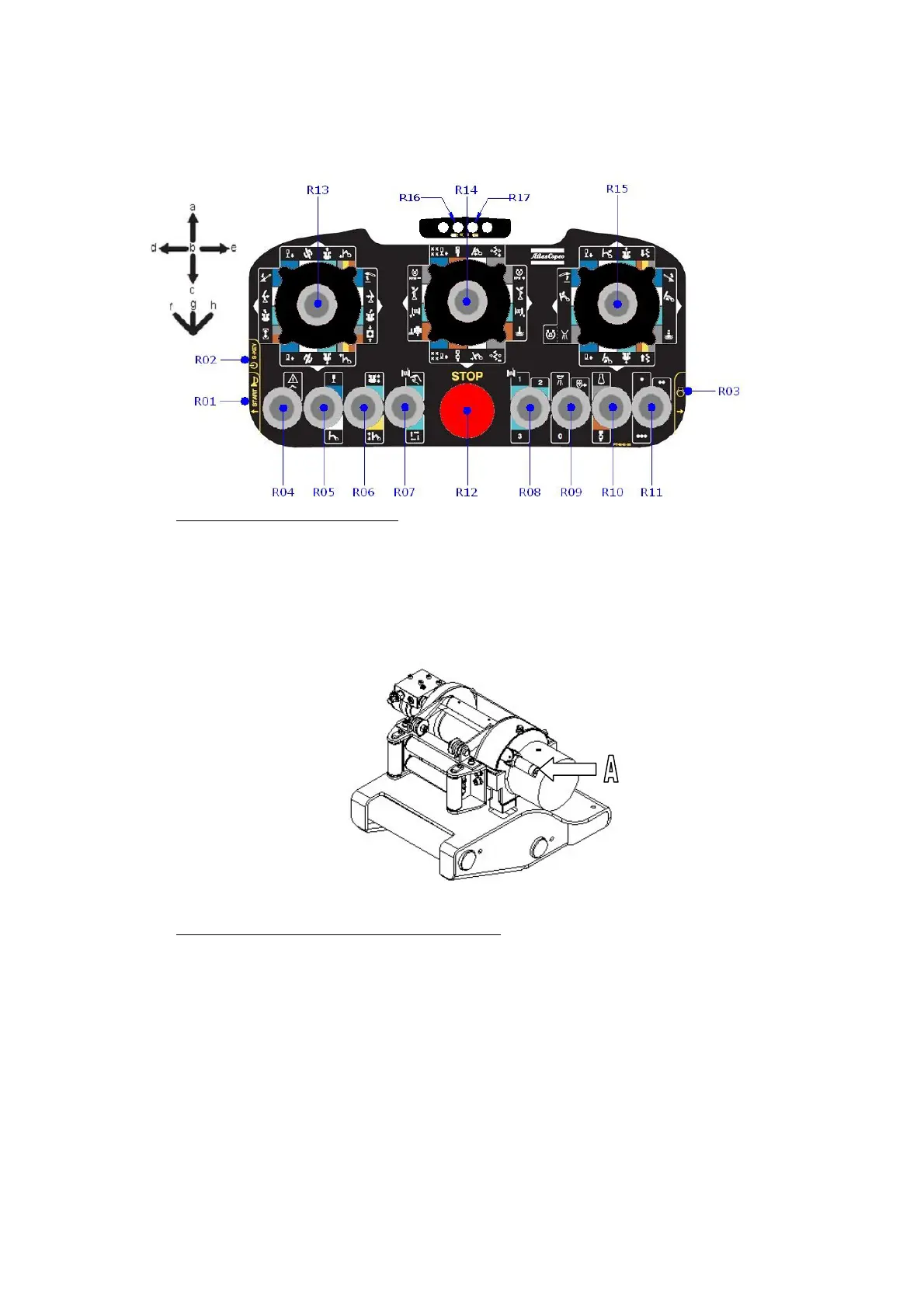

Figure: Remote control panel
1 Activate the remote control point (see Enable controls)
2 Disengage the winch drum with the disengagement mechanism (A) to enable the
cable to be pulled out.
Figure: Disengagement mechanism, winch
3 Pull out the wire and fasten the eye to the anchor point.
4 Lock the winch drum with the disengagement mechanism (A).
5 Position mode selector R06on a to activate Vehicle mode (Blue)
6 Set the winch power with selector R08
7 Set the winch mode to Manual by positioning selector R07 on a
8 Act on multi-function lever R14 to tension the cable
9 Set the winch mode to Automatic by positioning selector R07 on c
To Next Page
