Operator's instructions
5. Operating
Moving from CBM
• Risk of falling from the platform
• Do not operate from the CBM on frontal
inclinations greater than 5°; you must use
the PMI or the remote control

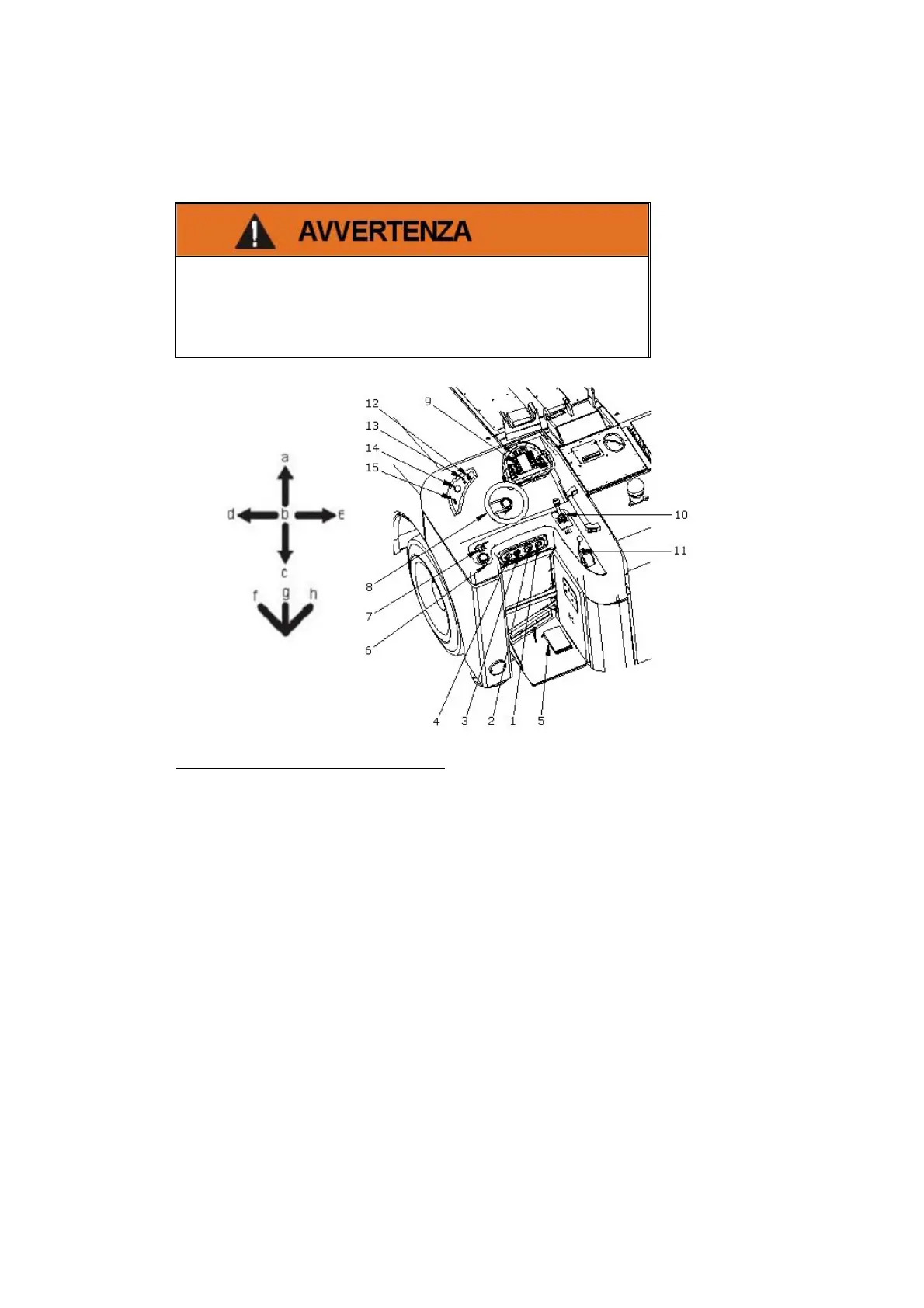

Figure: Diesel engine control panel
1 Set the control point on the CBM
PMI
Work Environment Screen
2 Select type of steering (3)
3 Select speed of translation (4)
4 Accelerate the motor revolutions slightly by acting on the manual accelerator (11)
5 Press the man-present button to activate the controls. (5)
6 Grip the steering wheel to guide the machine. (8)
7 Act on the direction lever (10) to select the running direction (forwards/backwards).
8 Position the drilling carriage at the desired location
To Next Page
