Operator's instructions
5. Operating

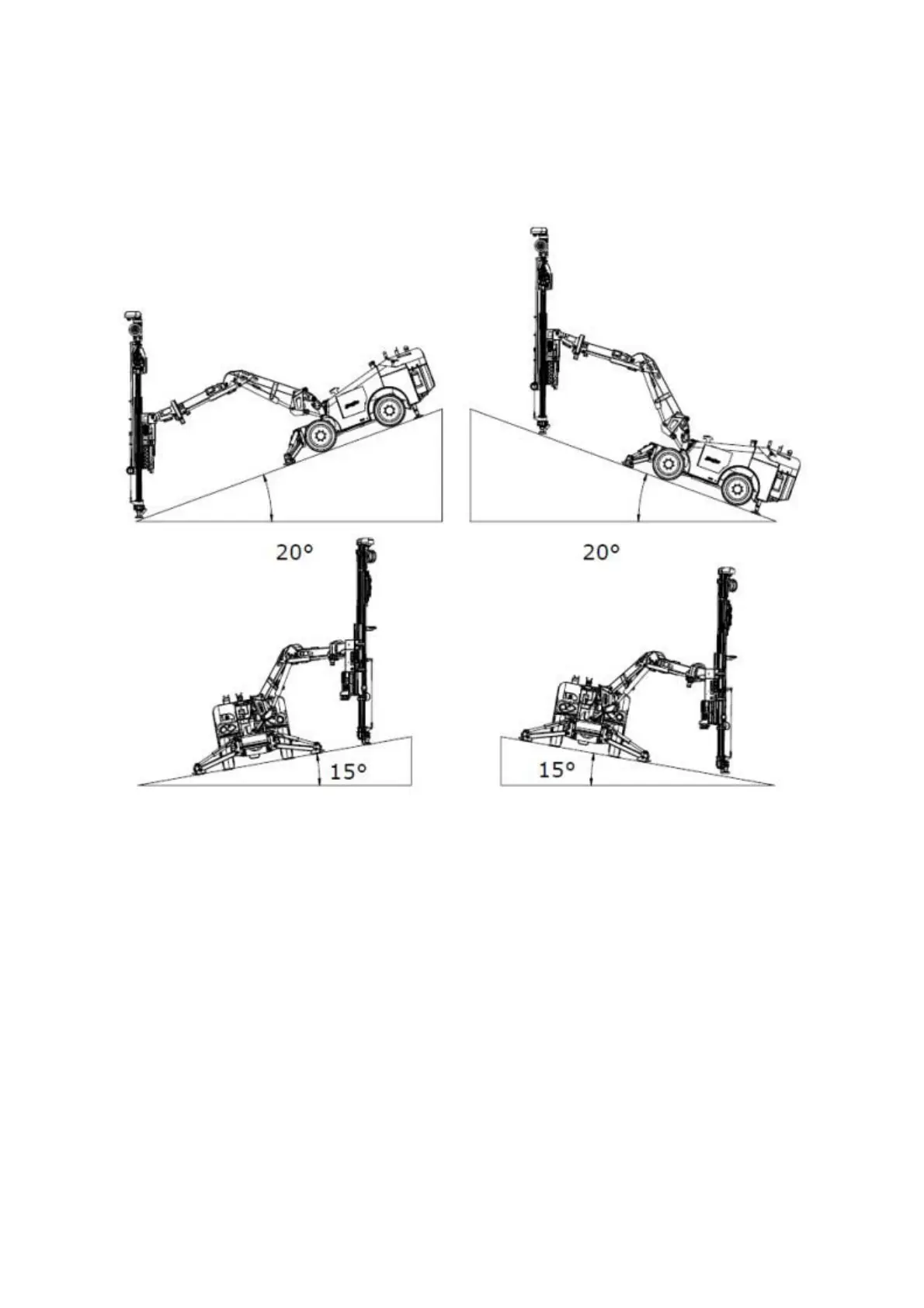

Setting-up for drilling with the feeder in vertical position and
swung max to left
Setting-up for drilling with the feeder in vertical position and
swung max to right
Note
The rig is symmetrical so the same angles apply as in the chapter "Setting-up for
drilling with the feeder in vertical position and swung max to left".
