85
Operator's instructions
6. Before drilling
• Risk of feed beam bending
• To avoid overloading the feeder, do no use
the cylinder alone for lowering the boom, or
the cylinder for feed extension individually
to place the feeder against the ground
PMI
1. Position the drill at the drilling point
2. Go the Leg screen and position the drill horizontally by lowering the support legs.
3. Move the slide and arm to the desired position. Using the multi-function levers,
arrange the contrast cylinder stably on the ground without raising the drilling carriage.
Remote control
1. Position the drill at the drilling point

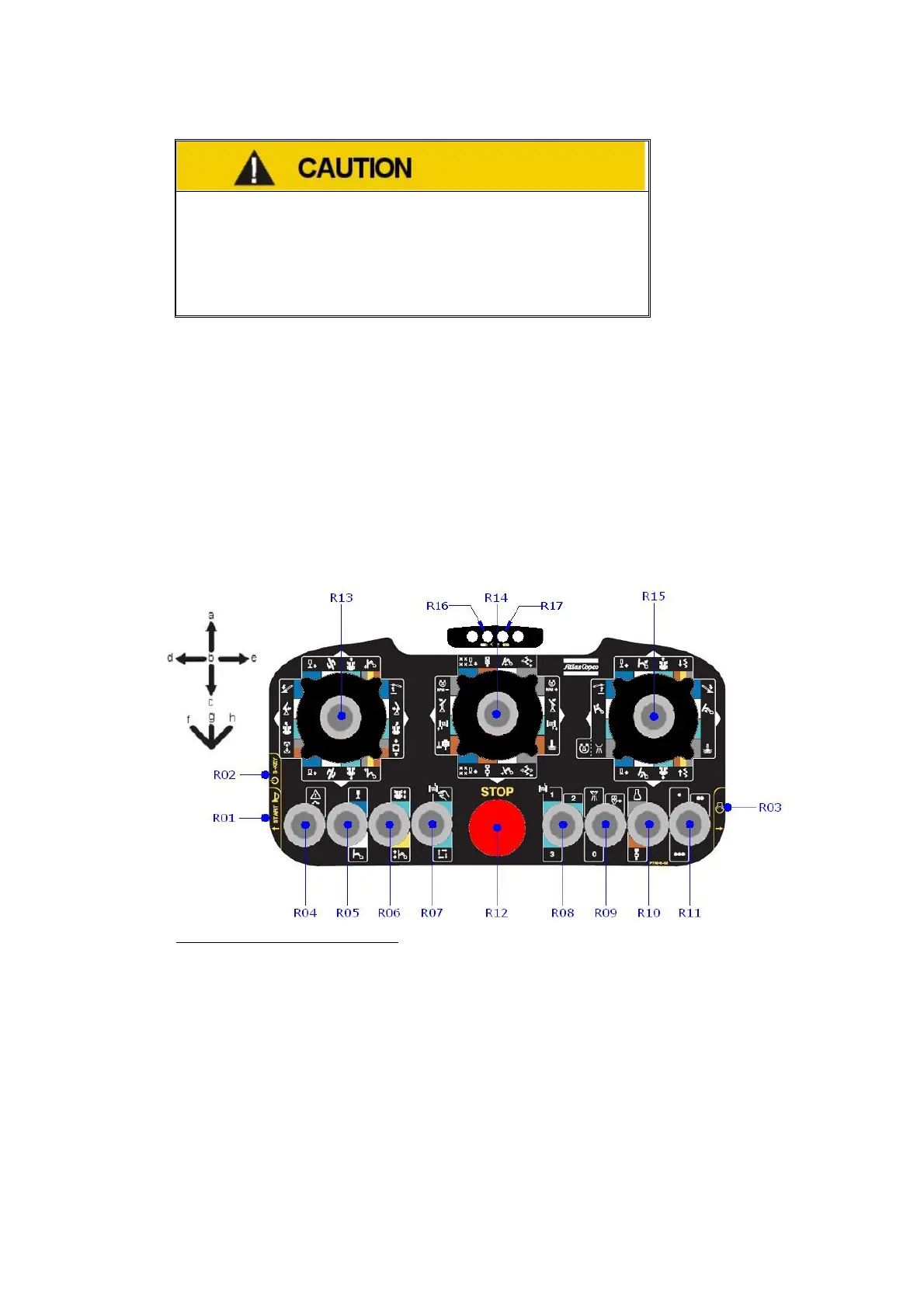

Figure: Remote control panel
2. Position selector R05 on A to activate Leg mode (Orange)
4. Act on multi-function levers R13, R14 and R15 to position the drill horizontally by
lowering the support legs.
3. Position selector R05 on C and selector R06 on C to activate Positioning mode
(Yellow and Violet).
4. Move the slide and arm to the desired position. Using the multi-function levers,
arrange the contrast cylinder stably on the ground without raising the drilling carriage.
