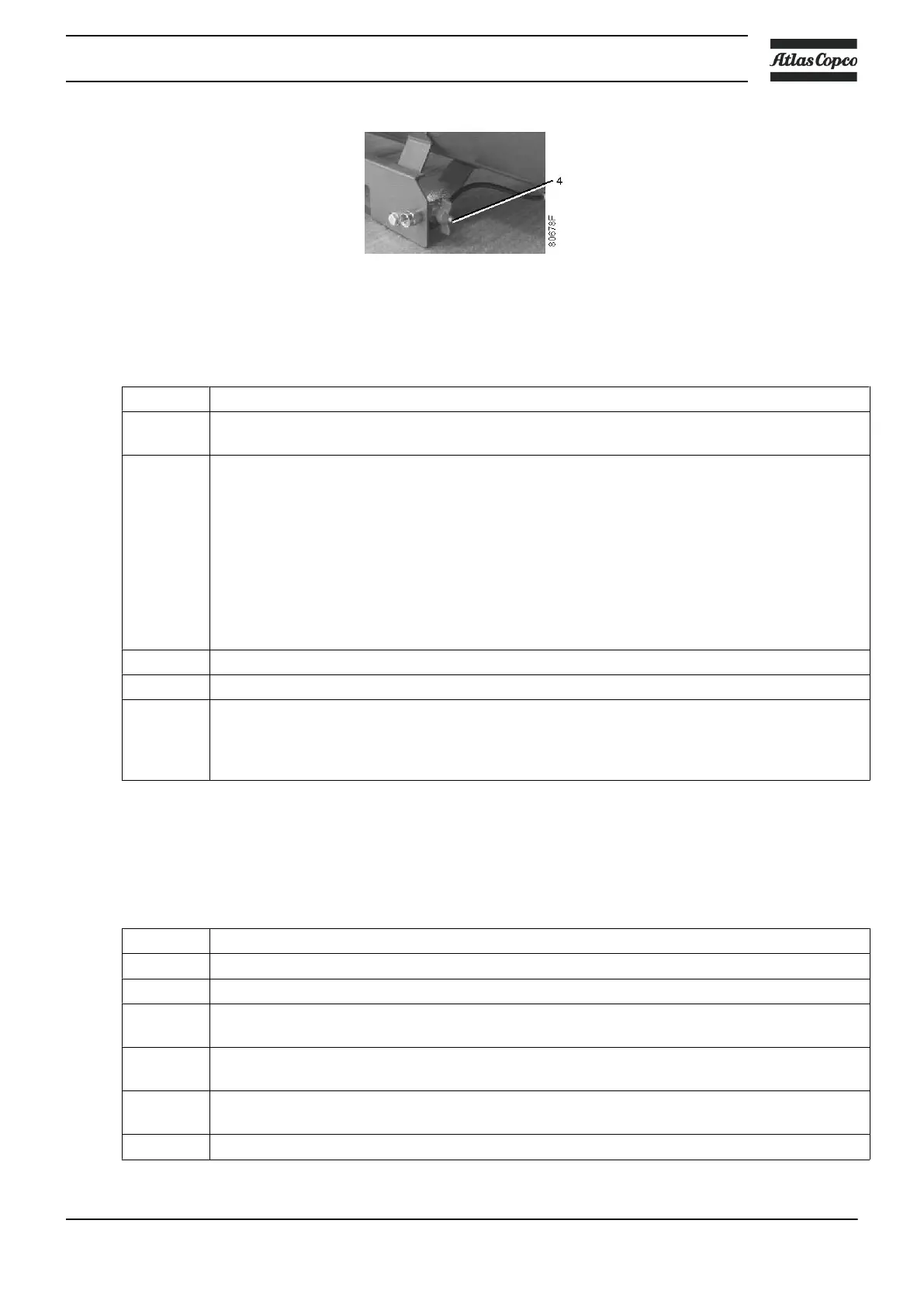

Condensate drain valve, Tank-mounted GA 5 up to GA 11
Procedure
Step Action
- Press stop button (9). Automatic operation LED (8) goes out and the compressor stops after 30
seconds of unloaded operation.
- To stop the compressor in the event of an emergency, press emergency stop button (10).
Alarm LED flashes (7).
On compressors with an Elektronikon® controller: remedy the problem cause, unlock the button
by pulling it out and press the Escape button (5) to reset.
On compressors with an Elektronikon® Graphic controller:
•
Remedy the problem cause and unlock the button by pulling it out.
•
Navigate to the Stop icon on the display by means of the navigation keys (3/4) and press the
Select key.
Press reset.
Do not use emergency stop button (10) for normal stopping!
- Close the air outlet valve (AV).
- Open the condensate drain valve (Dm). See section Condensate system.
- The air dryer and air receiver remain under pressure.
The DD and PD filters (if installed) remain under pressure.
If maintenance or repair work is necessary, consult Problem solving for all relevant safety
precautions.
7.7 Taking out of operation
Procedure
Step Action
- Stop the compressor and close the air outlet valve.
- Switch off the voltage and disconnect the compressor from the mains.
- Depressurise the compressor by opening plug (FC). Consult section Oil and oil filter change to
locate the filler plug.
- Open the condensate drain valve (Dm). Consult section Condensate system to locate the drain
valve.
- Shut off and depressurise the part of the air net which is connected to the outlet valve. Disconnect
the compressor air outlet pipe from the air net.
- Drain the oil.
Instruction book
2920 7090 51 141
