Add oil until the sight-glass (Gl) is 3/4 full.
Tighten the filler plug.
8. Reset the service warning after carrying out all service actions in the relevant Service Plan:
For compressors with Elektronikon® controller, see section Calling up/resetting the service timer.
For compressors with Elektronikon® Graphic controller, see section Service menu.
9.4 Oil separator change
Warning
The operator must apply all relevant Safety precautions.
Procedure

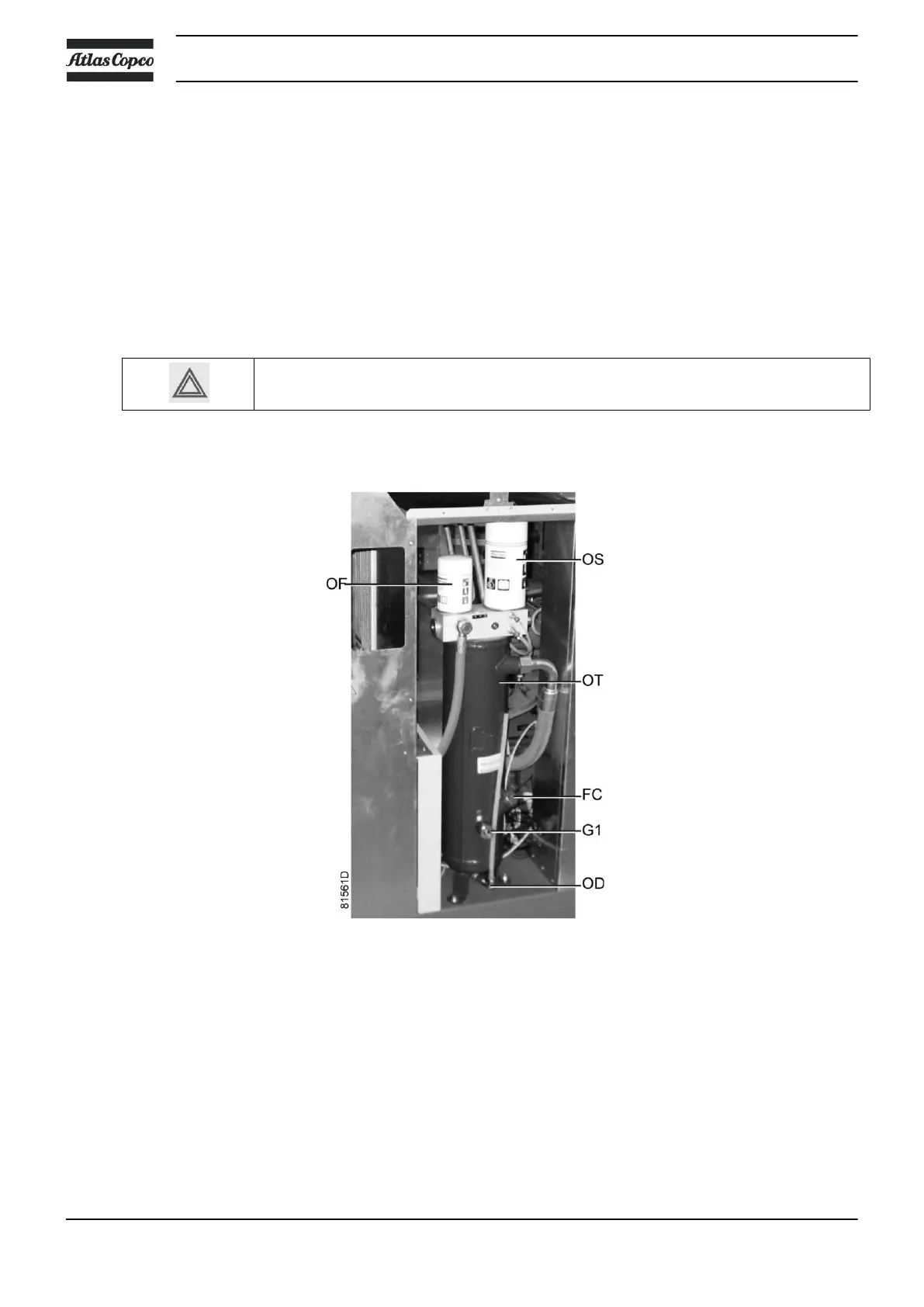

Oil system components
1. Run the compressor until warm. Stop the compressor, close the air outlet valve and switch off the voltage.
Wait a few minutes and depressurise by unscrewing oil filler plug (FC) just one turn to permit any pressure
in the system to escape.
2. Wait 5 minutes and remove the oil separator (OS). Clean the seat on the manifold. Oil the gasket of the
new separator and screw it into place. Tighten firmly by hand.
3. Remove filler plug (FC).
Fill the oil tank (OT) with oil until the level reaches the middle of sight-glass (Gl).
Take care that no dirt drops into the system. Refit and tighten filler plug (FC).
4. Reset the service timer:
Instruction book
150 2920 7090 51
