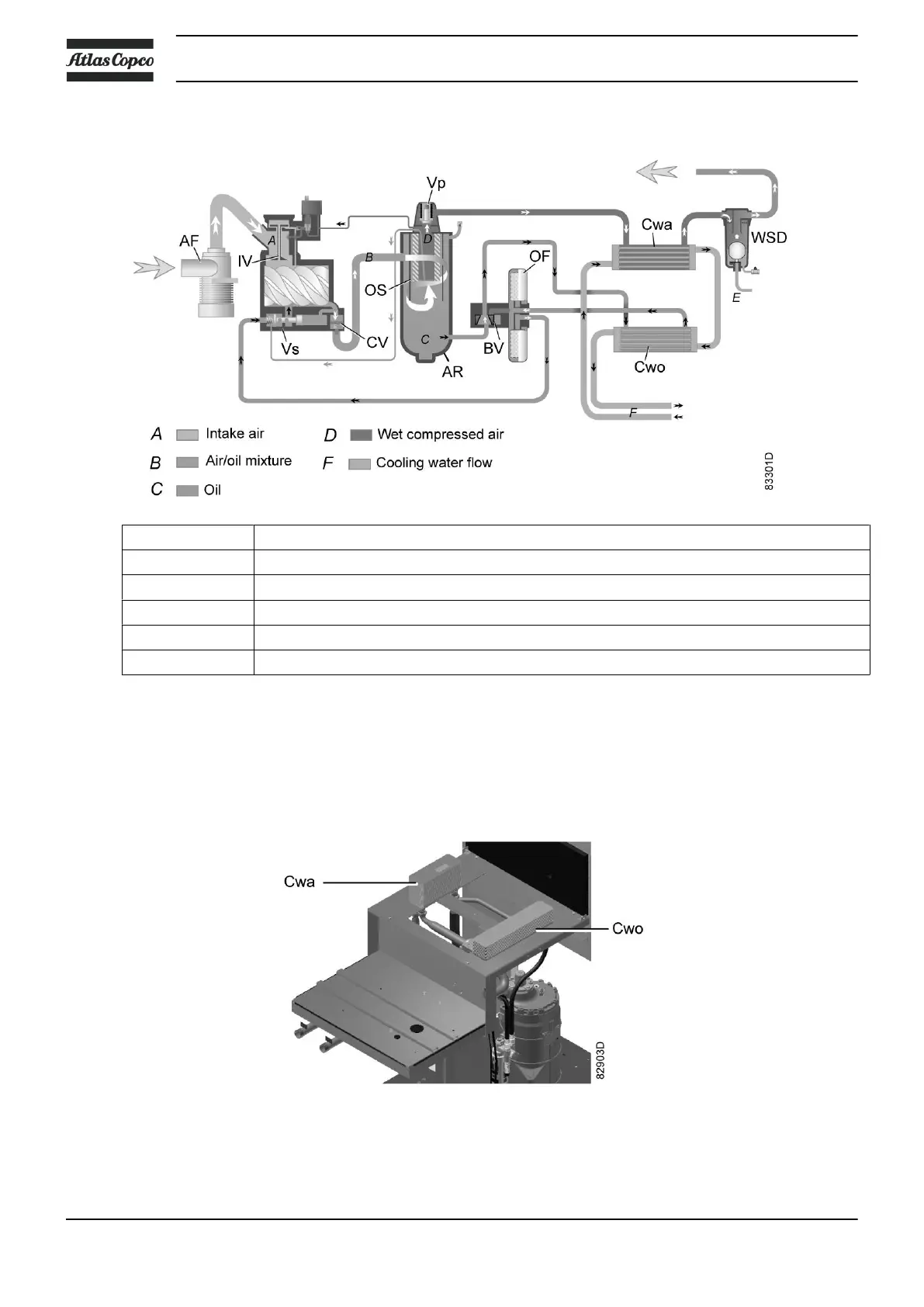

Water-cooled compressors
References Description
A Intake air
B Air/oil mixture
C Oil
D Wet compressed air
F Water flow
Description
The cooling system on water-cooled compressors comprises air cooler (Cwa) and oil cooler (Cwo).
They are connected to a cooling water circuit. The water flows through the inlet pipe, the coolers and the
outlet pipe.
Water-cooled air cooler and oil cooler
