Atlas Copco GA 75+ - Air Dryer

Reference Designation
T1 Transformer
PE Earth terminal
Electrical diagram
The complete electrical diagram can be found in the electric cubicle.
2.8 Air dryer

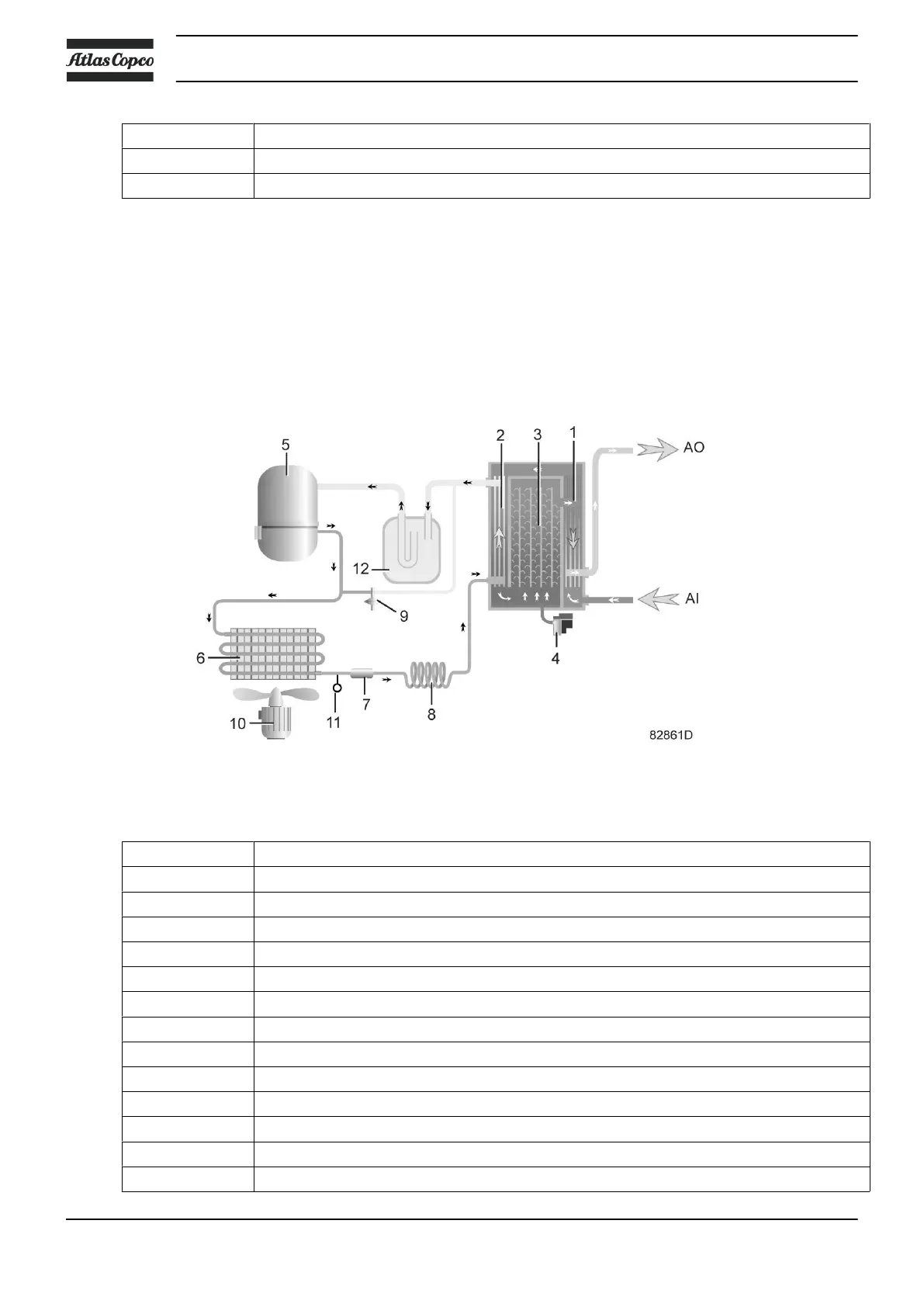

Flow diagram
Air dryer
Reference Name
AI Air inlet
AO Air outlet
1 Air/air heat exchanger
2 Air/refrigerant heat exchanger/evaporator
3 Condensate separator
4 Automatic drain / condensate outlet
5 Refrigerant compressor
6 Refrigerant condenser
7 Liquid refrigerant dryer/filter
8 Capillary
9 Bypass valve
10 Condenser cooling fan
11 Pressure switch, fan control
Instruction book
24 2920 7109 60
