Text on figures
(1) Compressor Outlet
(2) Element Outlet (fixed speed compressors)
(3) Load, shutdown, ... (text varies upon the compressors actual condition)
(4) Menu
(5) Unload, ES,...(text varies upon the compressors actual condition)

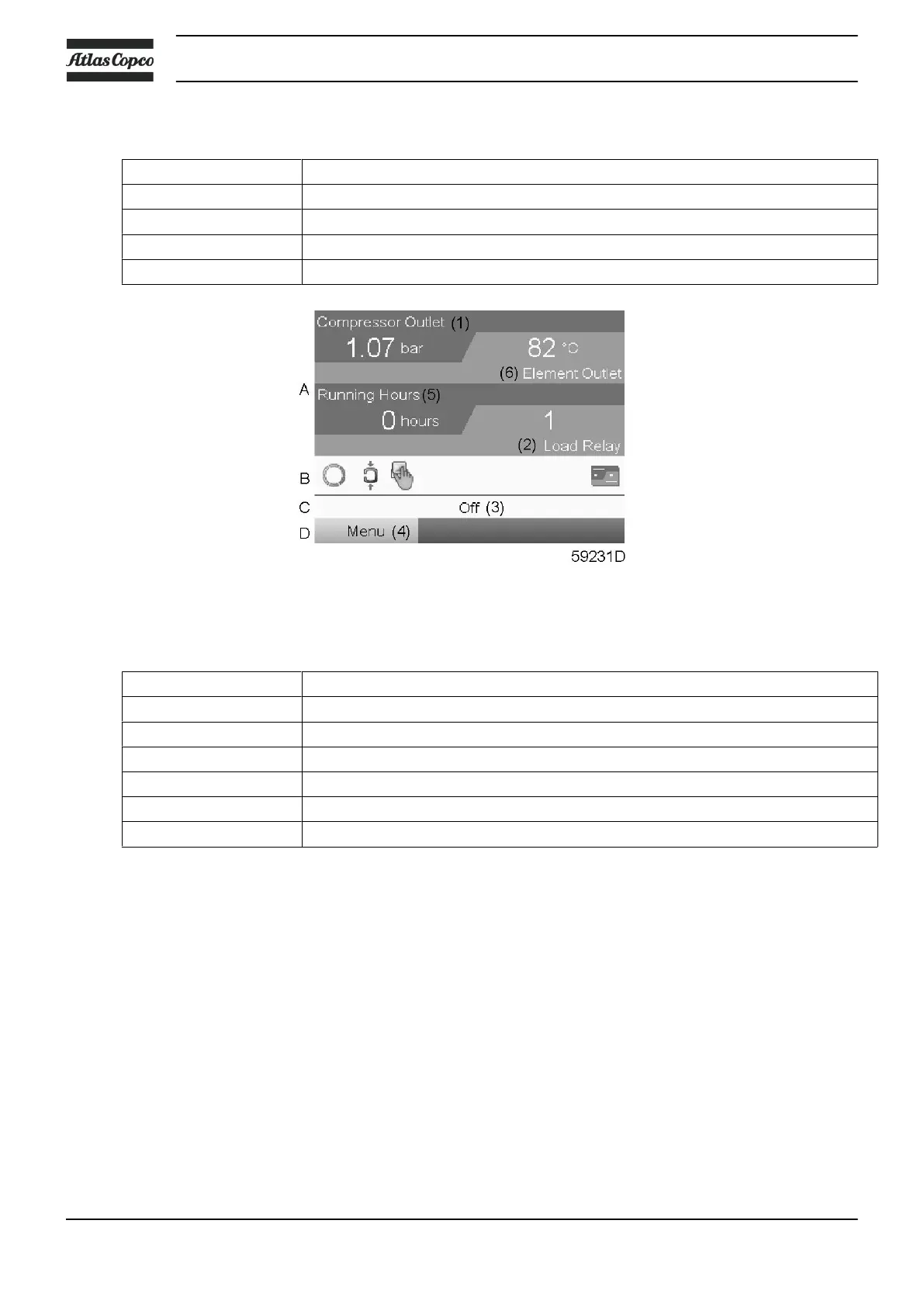

Typical Main screen (4 value lines), fixed speed compressors
Text on figures
(1) Compressor Outlet
(2) Load relay (one of the input signals of fixed speed compressors)
(3) Off, Shutdown,... (text varies upon the compressors actual condition)
(4) Menu
(5) Running hours
(6) Element outlet
(7) Load, Unload, ... (text varies upon the compressors actual condition)
• Section A shows information regarding the compressor operation (e.g. the outlet pressure or the
temperature at the compressor outlet).
• Section B shows Status icons. Following icon types are shown in this field:
• Fixed icons
These icons are always shown in the main screen and cannot be selected by the cursor (e.g. Compressor
stopped or running, Compressor status (running, running unloaded or motor stopped).
• Optional icons
These icons are only shown if their corresponding function is activated (e.g. week timer, automatic
restart after voltage failure , etc.)
• Pop up icons
These icons pop up if an abnormal condition occurs (warnings, shutdowns, service,...)
To call up more information about the icons shown, select the icon concerned using the scroll keys and
press the enter key.
• Section C is called the Status bar
This bar shows the text that corresponds to the selected icon.
Instruction book
76 2920 7109 60
