Signs / labels
WARNING Missing warnings
The name plate and the labels on the hydraulic
attachment contain important information about the
hydraulic attachment and for personal safety. A
missing warning can cause personal hazards. The
signs and labels must always be clearly legible.
►
Immediately replace any defective name plates
and labels.
►
Use the spare parts list to order new name
plates and labels.

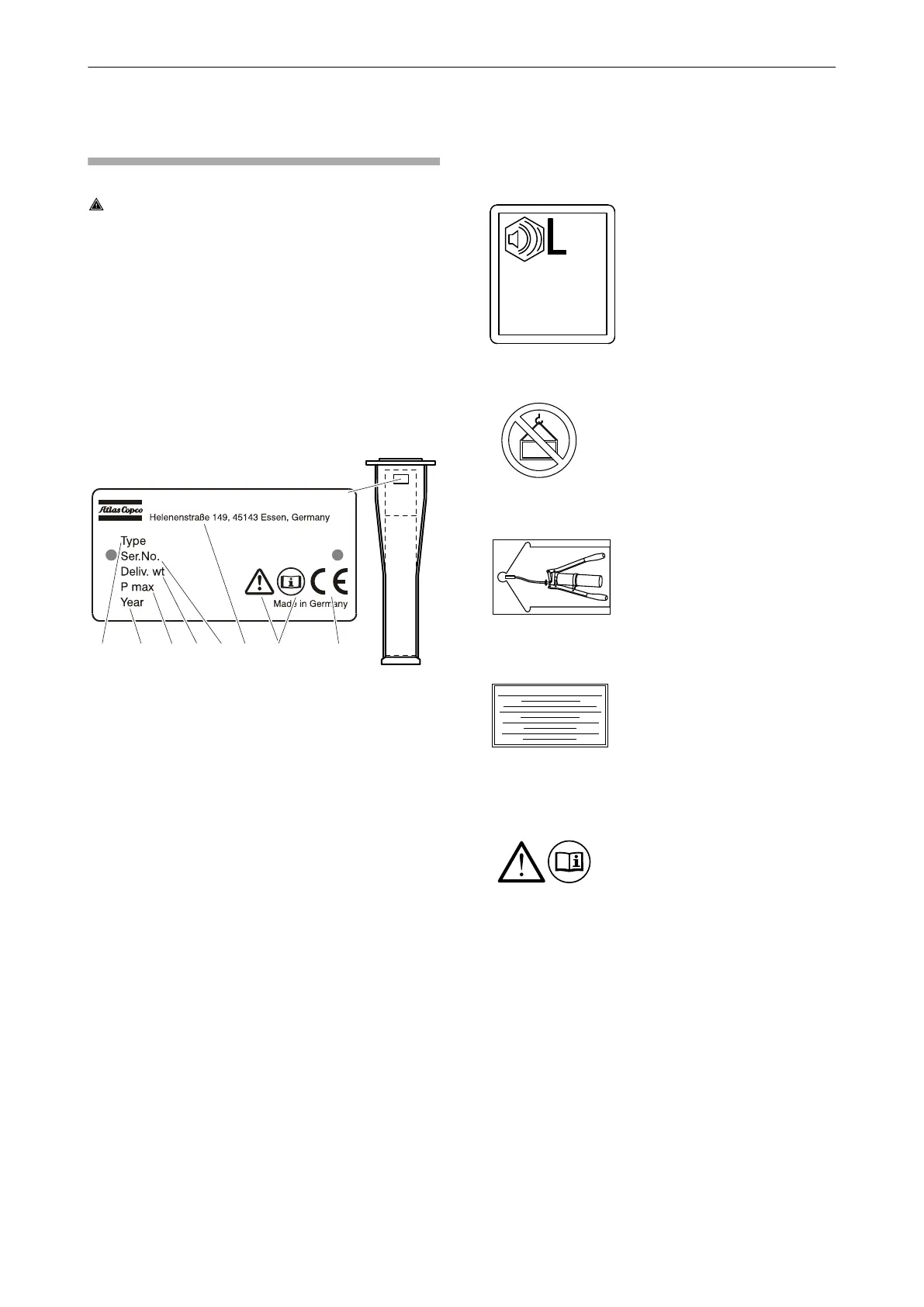

Name plate
Construction Tools GmbH
A B C D E F G H
A. Model
B. Year of construction of hydraulic attachment
C. Max. permissible operating pressure
D. Weight of hydraulic attachment
E. Serial number
F. Name and address of manufacturer
G. The warning symbol and the book symbol
indicate that the Safety and Operating
Instructions must be read prior to use of the
hydraulic attachment and in particular the
chapter on Safety.
H. The CE symbol indicates that the hydraulic
attachment was produced in conformity with
CE. You can find further information about this
in the enclosed EC Declaration of Conformity.
Labels
Sound Power
The label states the
guaranteed sound power level
in accordance with EC
directive 2000/14/EC.
Transport warning
Never lift the hydraulic
breaker by the transport
safety device. This was not
designed for lifting and might
break, causing the hydraulic
breaker to fall
Lubrication symbol
The label identifies a
lubrication point.
Gas pressure
Gasdruck nur bei betriebswarmem Hammer prüfen!
Only check the gas pressure
when the hammer is at operating temperature!
Ne contrôler la pression d´azote que si le marteau
est à température de service!
Controllare la pressione del gas solo a mortello
a temperature d´esercizio!
¡Controlar la presión del gas sólo con el martillo
a temperatura de régimen!
The label indicates that the
gas pressure can only be
checked if the breaker has
reached operating
temperature.
Signs
The warning symbol and the
book symbol indicate that the
Safety and Operating
Instructions must be read prior
to use of the hydraulic
attachment and in particular
the chapter on Safety.
HB 2000, 2000 DP, 2500, 2500 DP Safety and operating instructions
© Construction Tools GmbH | 3390 5090 01 | 2016-05-23
