Atlas Copco HB 2000 User Manual

Automatic lubrication
The hydraulic breaker is lubricated automatically
by the ContiLube
®
II.
The ContiLube
®
II has been installed near the
service opening in the upper section of the breaker
box.
Instructions on how to operate and maintain the
ContiLube
®
II is described in a seperate
documentation.
◆
If you have questions how to use the
ContiLube
®
II, contact the Atlas Copco
Customer Center/dealer in your area.

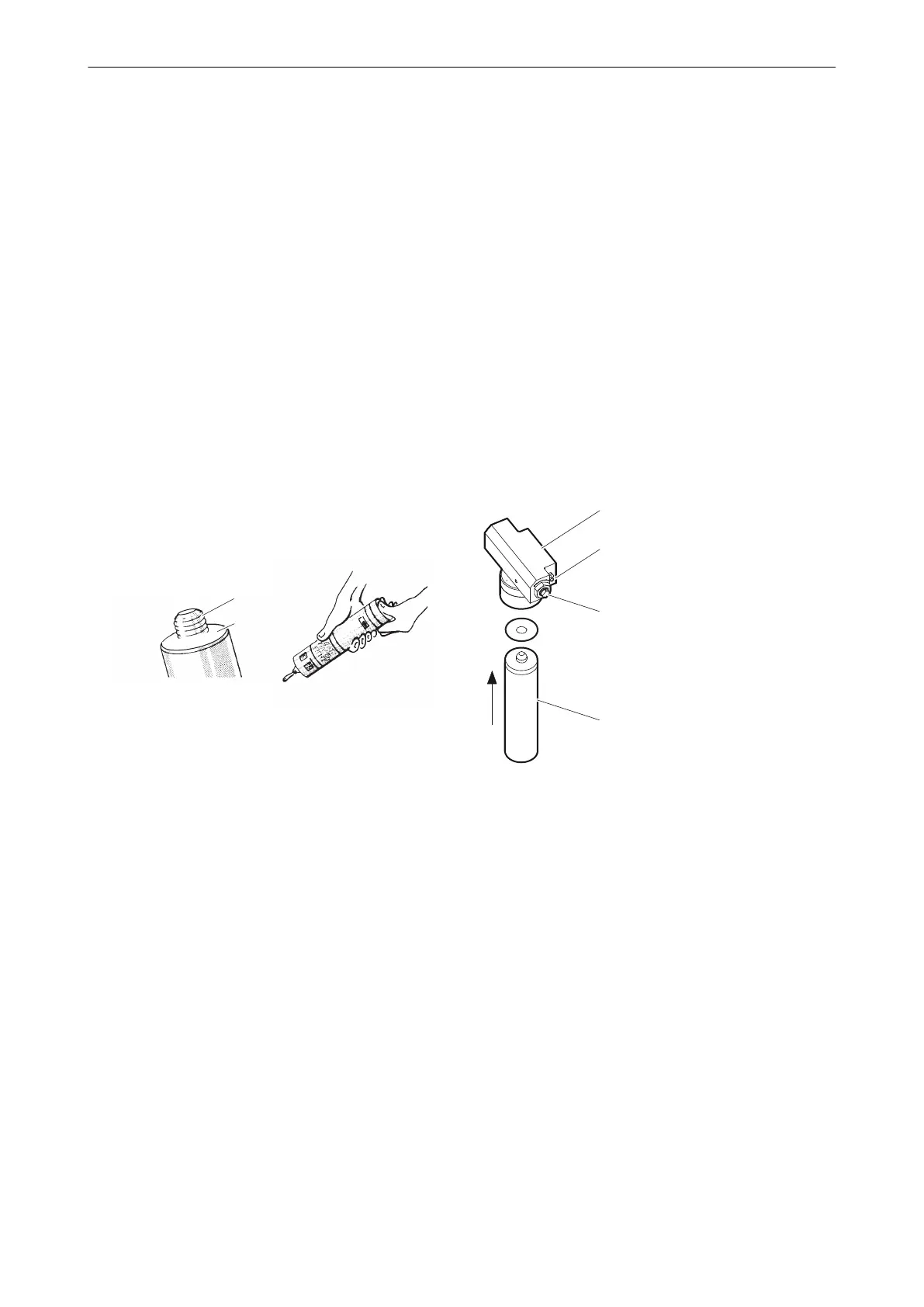

Replacing the lubricant cartridge
◆
Unscrew and remove the empty lubricant
cartridge and the old seal by turning counter
clockwise.
◆
Remove the cover from the new cartridge.
Make sure not to damage the sealing cone (A).
◆
Place the seal (B) on the cartridge.
A
B
◆
Use your thumb to push the cartridge piston
down until lubricant escapes from the screw
thread.
◆
Screw the cartridge until the stop into the guide
hole of the grease pump.
The ContiLube
®
II is ready for use.
ContiLube
®
II operation
Please remember the following:
•
The ContiLube
®
II (C) is self-venting, i.e. the
system does not require you to vent it.
•
The lubricant level in the transparent cartridge
(E) of recyclable PE plastic can always be
checked from the cab by looking at the position
of the red piston.
•
The piston side of the cartridge (E) must never
be sealed, otherwise no grease supply will be
possible.
•
You can change the supply volume by adjusting
the metering screw (A), depending on the
actual use.
•
Tighten the screw clockwise = less grease
•
Loosen the screw counter-clockwise = more
grease
C
B
A
E
The pump unit (C) must always be sealed to
prevent the ingestion of water and dust.
◆
Use a dust cover or leave the empty cartridge in
the pump until a new cartridge is available.
◆
Check the tightness of the connections of all
hoses for the ContiLube
®
II operation once a
week.
Emergency lubrication is possible via the grease
nipple (B) on the side of the ContiLube
®
II.
HB 2000, 2000 DP, 2500, 2500 DP Safety and operating instructions
© Construction Tools GmbH | 3390 5090 01 | 2016-05-23
Original instructions
45
