Transport
WARNING Hoist tipping over / hydraulic
attachment falling
The hydraulic attachment is heavy. The hoist/lifting
equipment and/or hydraulic attachment tipping
over or falling may cause serious injury and
material damage.
►
Only transport the hydraulic attachment with
lifting equipment with the right load-bearing
capacity for the weight of the hydraulic
attachment.
►
Only lift and secure the hydraulic attachment
with lifting gear (ropes, chains, shackles etc.)
with the right load-bearing capacity for the
weight to be lifted.
►
Make sure that there is nobody near or under
the suspended hydraulic attachment.
WARNING Percussion unit falling
The percussion unit slides out of the breaker box if
not secured by the adapter plate or the transport
safety device. The falling percussion unit may
cause serious injury and material damage.
►
Never transport a hydraulic breaker without
mounted adapter plate or transport safety
device.
►
Immediately mount the transport safety device
after removal of the adapter plate.
►
The percussion unit must not move in the
breaker box even if the transport safety device
is mounted. A sliding percussion unit can
destroy the transport safety device.
►
Replace a missing elastic pad, if necessary e.g.
with a wooden block. This keeps the percussion
unit fixed in the breaker box during transport.
►
Immediately replace a defective transport safety
device. Use the spare parts list to order a new
transport safety device. If not in use save the
transport safety device for future use.
WARNING Hydraulic breaker falling
The lifting eye may fail and cause the hydraulic
breaker to fall. This may cause serious injury and
material damage.
►

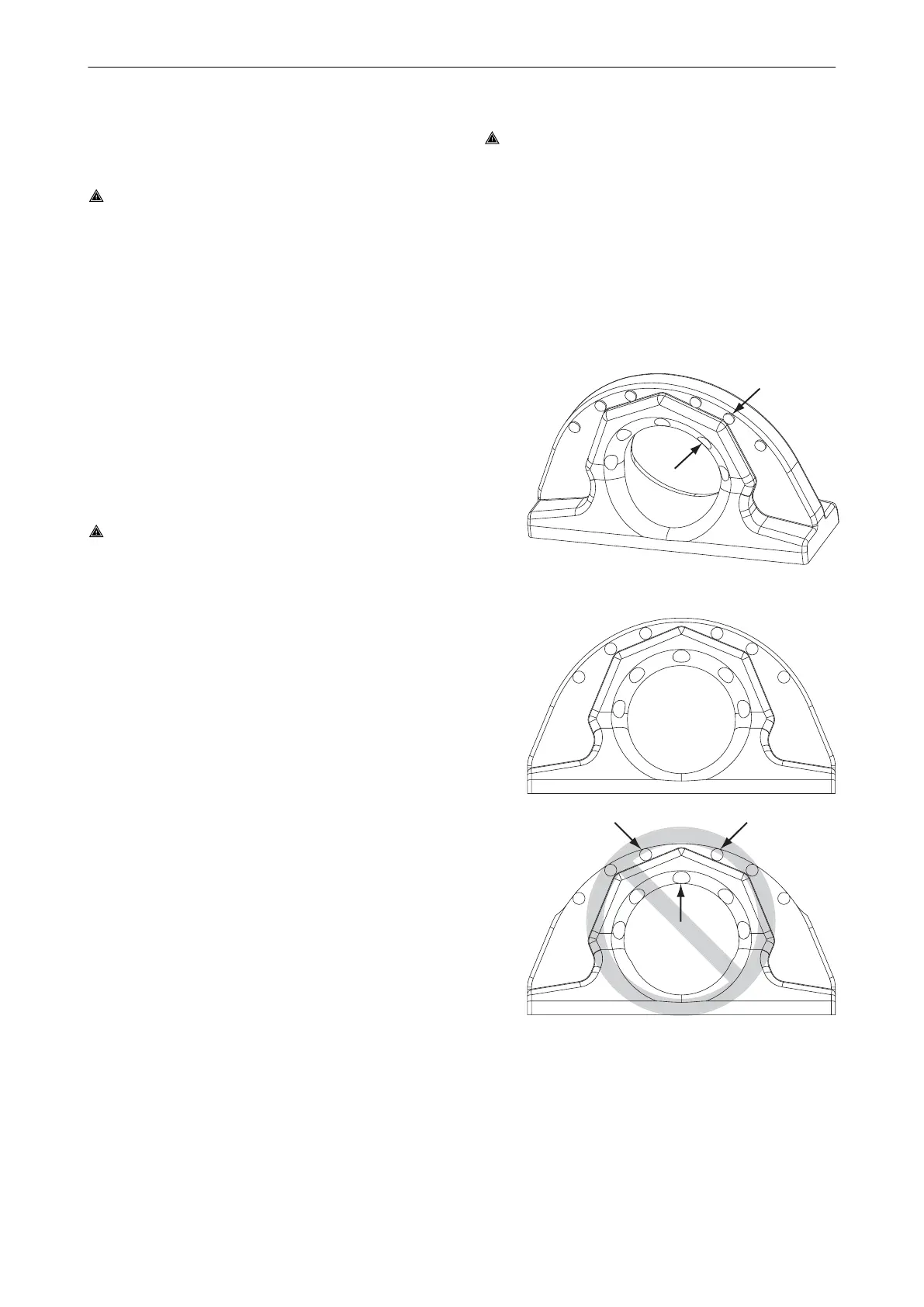

Check the lifting eye before you lift the hydraulic
breaker. Never lift the hydraulic breaker with the
lifting eye if:
•
the checkpoints (A) are worn and not
protruding anymore
or
the checkpoints (B) are worn and not
recessed anymore.
A
B
•
the material is worn up to the checkpoints
(A, B).
Use permitted
Use prohibited
•
the lifting eye is bent.
•
you detect cracks in the lifting eye or the
weld seam.
►
Contact the Atlas Copco Customer Center/
Dealer in your area if the lifting eye is worn in
any way.
HB 2000, 2000 DP, 2500, 2500 DP Safety and operating instructions
© Construction Tools GmbH | 3390 5090 01 | 2016-05-23
Original instructions
19
