2 Main parts
2.1 General description
The light tower provides an undercarriage (frame, axle and towbar) and 4 LED floodlights of 350 W. The light tower is very useful for construction sites where no
electricity nor lighting is available.

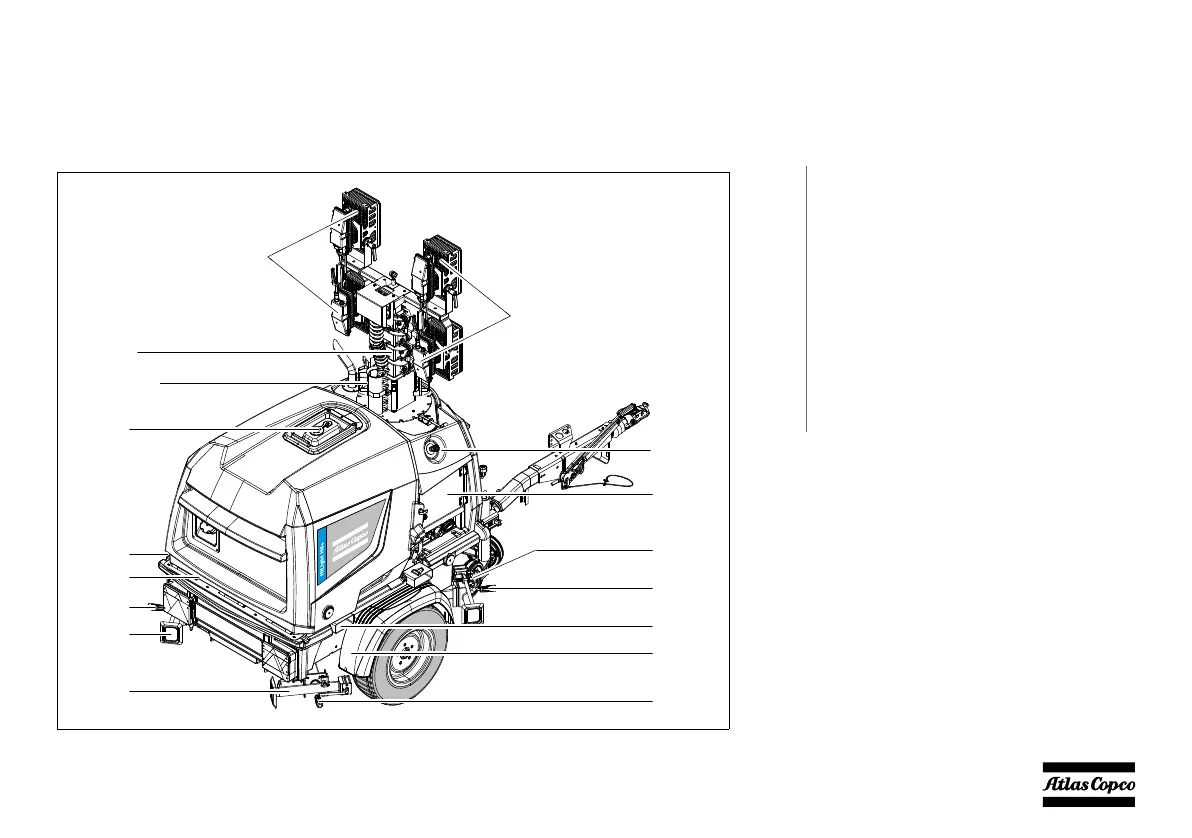

CP Control panel
DP Data plate
EP Earth pin (optional)
FL Floodlights
FS Forklift slots
LE Lifting eye
LH Levelling handle, to adjust the height of the
supporting foot
LPS Locking pin stabilizer
MMast
RHM Rotating handles mast
ST Stabilizer and supporting foot
S2 Emergency stop button
U Undercarriage
DP
FS
U
ST
LH
FL
FL
M
LE
CP
LH
LH
LPS
ST
EP
RHM
S2
