Atlas Copco HiLight H6+ Kd ESF User Manual

- 68 -
7.3 Overview of the electrical
options
The following electrical options are available:
– Battery switch (1 pole)
– Dimming
– Earth pin (not for DC version)
– Lc1001™ controller (not for DC version)
– Lc1003™ controller
– Smart Mast™
– Auto start with photocell (not for DC version)
– Mains connection (not for DC version)
– MSA connector
– Fleetlink (basic module)
–Type A ELR
–Type AC ELR
– Power output connections 16A 2P: CE, RIM, PIN
(not for DC version)
– Roadlights for right hand driving
– Auto mast down
– Auto tilt (compliant with SmartMast)
– Lamps: LED 4 x 350W 48V (HiLight H6+)
– Lamps: LED 4 x 320W 48V (HiLight H6+ DC)
7.4 Description of the electrical
options

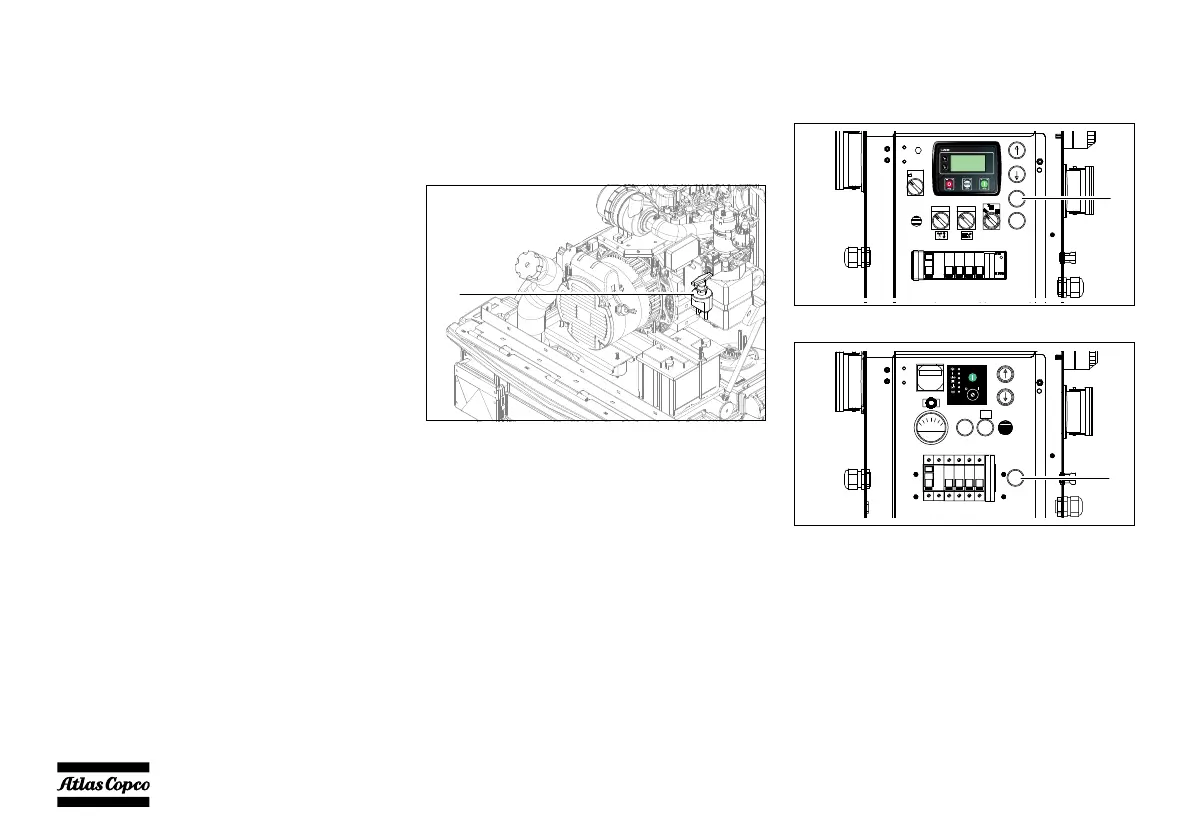

7.4.1 Battery switch (1 pole)
The battery switch (1) is installed near the battery and
allows to disconnect the battery power.
7.4.2 Dimming
Light output regulation.
For cubicle with Lc1003™ controller
For cubicle with Lc1001™ controller
1
S50
S51
S20
0
1
H16
Q2 Q3 Q4 Q5Q1 Q6
P7
AUTO MAN
F10
AUTO MAN
Dimming
1
A1
F10
000000.00
H2
P1
H16
H3
1
2
Q2
1
2
Q3
1
2
Q4
1
2
Q5
N1
N2
Q1
1
2
Q6
Dimming
ECU
1
00_00_HiLight H6+_EN.book Page 68 Friday, June 4, 2021 11:52 AM
