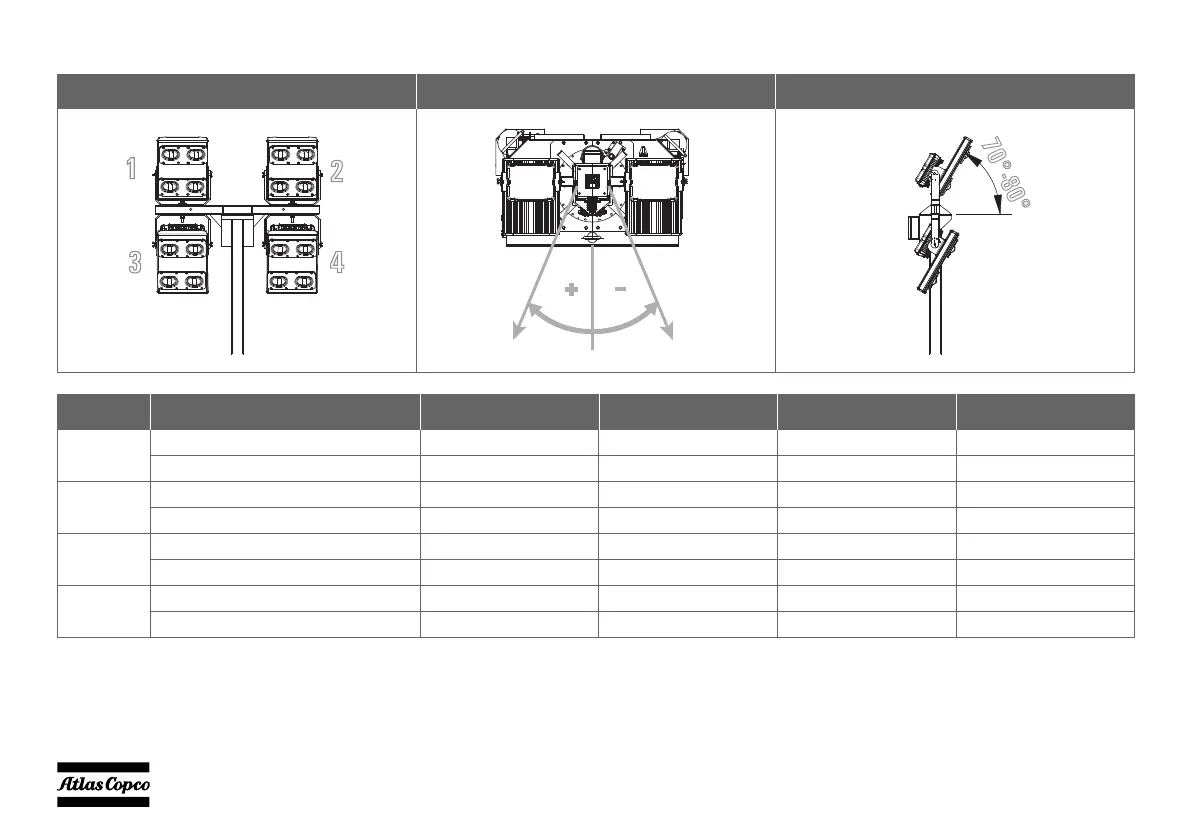

10.5 Floodlight Lux level
Lamps Rotation angle Inclination angle
Case Angle Lamp 1 Lamp 2 Lamp 3 Lamp 4
1
Inclination
80 80 70 70
Rotation
00-25+25
2
Inclination
80 80 70 70
Rotation
+10 -10 -20 +20
3
Inclination
80-70 80-70 80-70 80-70
Rotation
0 -180 -90 +90
4
Inclination
80 80 70 70
Rotation
-20 -20 -60 +60
1
2
43
70°-80°
