6. A remote stop signal (Sunrise or Weekly timer
stop) will trigger the following actions:
• Sequence lamp stop
• Activate buzzer
•Lower mast
• Stop engine

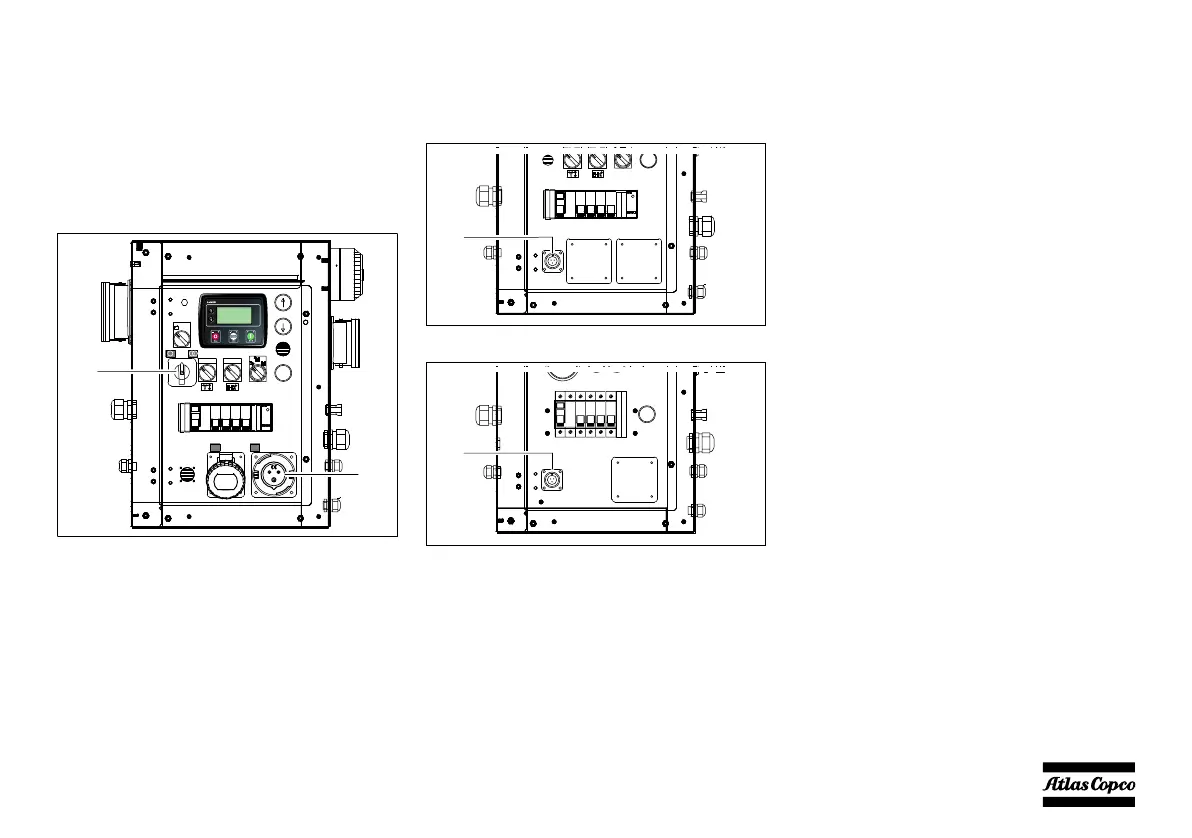

7.4.8 Mains connection (not for DC
version)
1. If the optional External power input (230 VAC) is
installed, select the desired operating mode with
S10 (Genset/OFF/Mains).
2. To connect the light tower directly to the mains,
use the X2 inlet socket.
7.4.9 MSA connector
The MSA connector is located in the cubicle and
allows remote emergency stops.
For cubicle with Lc1003™ controller
For cubicle with Lc1001™ controller
X19 .....MSA 3P connector
7.4.10 Fleetlink (basic module)
Fleetlink is an intelligent telematics system that helps
optimize fleet usage, reduce maintenance cost,
ultimately saving time and money. It allows to
manage the unit conveniently wherever it is, always
helping with the latest fleet information.
Fleetlink comes with the following functions:
– Location (GPS)
– Running status
– Running hours
– Service status
– Service notifications
–Geo fencing
– Daily, weekly or monthly running log.
7.4.11 Type A ELR
Replaces the standard General circuit breaker (Q1).
7.4.12 Type AC ELR
Replaces the standard General circuit breaker (Q1).
S50
S51
S20
0
1
H16
Q2 Q3 Q4 Q5Q1 Q6
P7
AUTO MAN
F10
AUTO MAN
GE
S10
X2
X1
S10
X2
H16
Q2 Q3 Q4 Q5Q1 Q6
P7
AUTO MAN AUTO MAN
X19
P1
1
2
Q2
1
2
Q3
1
2
Q4
1
2
Q5
N1
N2
Q1
1
2
Q6
Dimming
X19
